1OM-1610
0911-001 3-B
1OM-1610
3-1
1. Automatic Operation : Chap.3
0911-001
1. Automatic Operation
Shown below is the ow of the automatic operation.
Refer to "Chapter 3" for details.
1.1.1 Power Supply
1.1.2 Confirmation of Air Pressure
1.1.3 Confirmation of Cover Section
1.1.4 Safety Confirmation of Machine Surroundings
1.2.1 Power ON
1.2.2 Preparation for Components
1.2.3 Preparation for PCBs
1.3.1 Starting the sysytem program
1.3.2 Login Operation
1.3.3 "AUTO OPN." Window
2. Component Replenishment
3. PCB Replenishment
4.1 Stop of Machine Operation
4.2 Interruption of Automatic Operation
1.4.1 Stop of Automatic Operation
1.4.2 Logout
Program Change Operation
Inspections before
Automatic Operation
Preparation before
Automatic Operation
Start of Automatic
Operation
Replenishment of
Components and PCBs
Stop, Interruption, and
Restart of Automatic
Operation
End of Automatic Operation
Flow of Automatic Operation F1C1
1OM-1610
3-2
1. Automatic Operation : Chap.3
0911-001
1.1 Inspections before Automatic Operation
1.1.1 ConrmationofPowerSupply
Conrm that the main breaker of the power supplied to the machine is turned
"ON".
• Power Supply : 200 ± 20 V AC, 3-Phase
• Apparent Power : Approx. 6.1 kVA

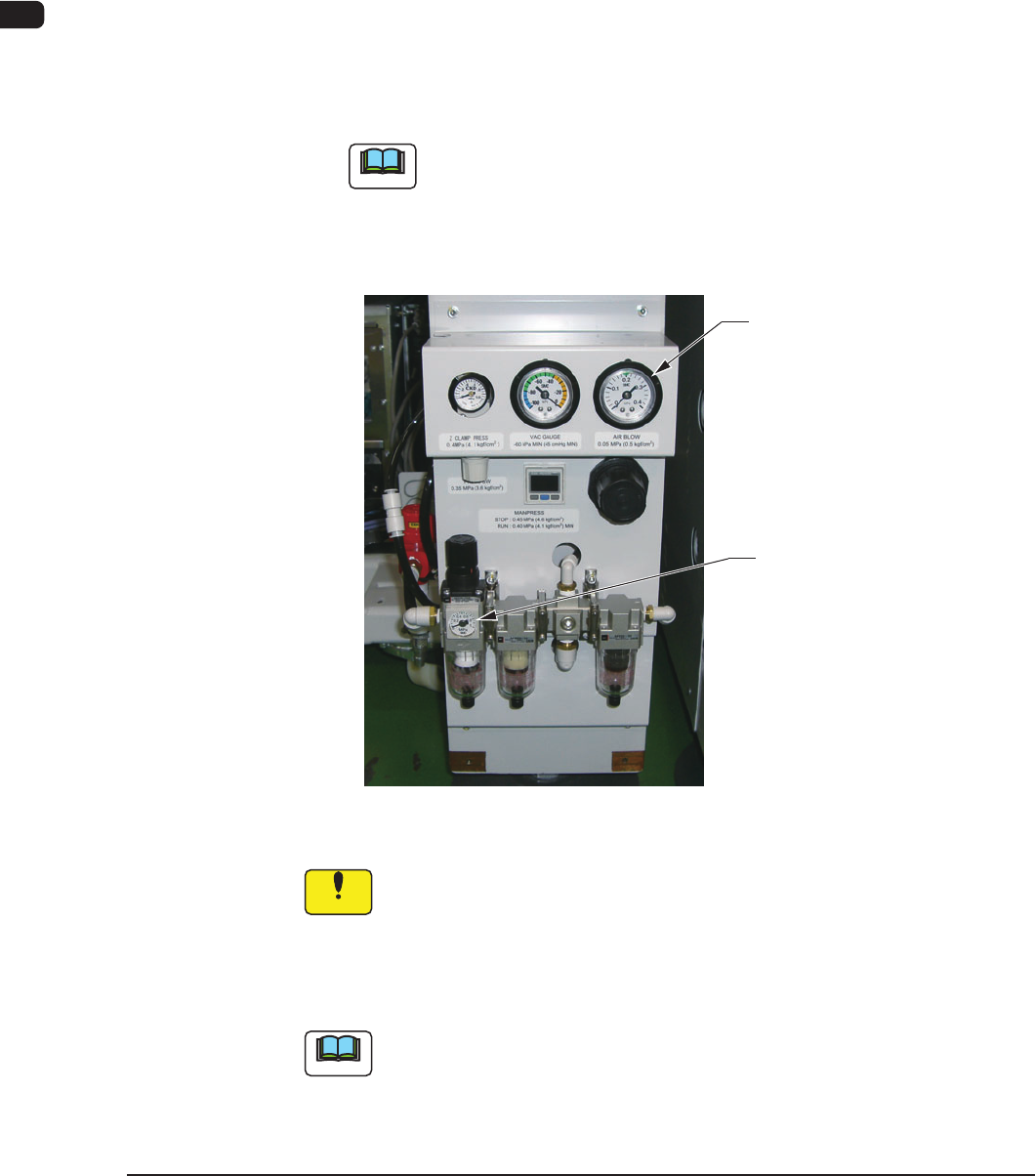

1.1.2 ConrmationofAirPressure
Conrm that the air pressure is set to the following.
•
Main Pressure : 0.45 MPa (4.6 kgf/cm
2
)
Note
The above represents the pressure specied while the machine is in
the"STOP" mode.
Min. 0.4 MPa (4.1 kgf/cm
2
) is required while the machine is running.
•
Air Blowing Pressure : 0.05 MPa (0.5 kgf/cm
2
)
Main Pressure
0.45 MPa (4.6 kgf/cm
2
)
Air Blowing Pressure
0.05 MPa (0.5 kgf/cm
2
)
F1C2
Notice
(a) Donotchangethesettingoftheairpressure.Otherwise,the
pneumaticdeviceswillnotworknormally.
(b) Besuretousedryandcleanair.Ifmoisture,oil,dust,etc.,enter
apneumaticdevice(aircylinder,etc.,usedinthismachine),itwill
resultinabreakdownofthemachine.
Note
DryandCleanAir:
Moisture : Dew Point -17°C or less (Atmospheric Pressure)
Oil : 0.1 mg/m or less (ANR)
Dust : Solid 0.01 mm or less
