Chapter 1

About the Machine

This chapter describes the structure, movement, and functions of the

machine.

1. What is the direct drive modular mounter?

2. Name and Function of Each Section

3. Mechanism for Surface Mounting

4. Surface Mounting Mechanism

5. Various Functions

1OM-1610

0911-001 1-B

1OM-1610

1. What is the direct drive modular mounter? : Chap.1

1-10911-001

1. What is the direct drive modular mounter?

This machine is provided with a batch recognition system by which various

kinds of electronic components (simply called "Components" hereinafter) can be

recognized in batch (nonstop y batch recognition) and realizes

highly accurate component placement on the PCBs at high speed. The machine

is also equipped with two beams, two heads, and two component recognition

cameras, making it possible to handle many different kinds of components in

small lots or few different kinds of component in large lots for diversied scales

of production.

This machine introduces our latest technologies such as direct drive heads, X/

Y-axis linear motor driving, etc., (the performance proven by our direct drive

turret mounters) that have been used in the past actual production and is provided

with various functions for reduction of OOS (out of service) time. That is the

reason why this mounter is called "Direct Drive Modular Mounter with High

Total Productivity for Next Generation".

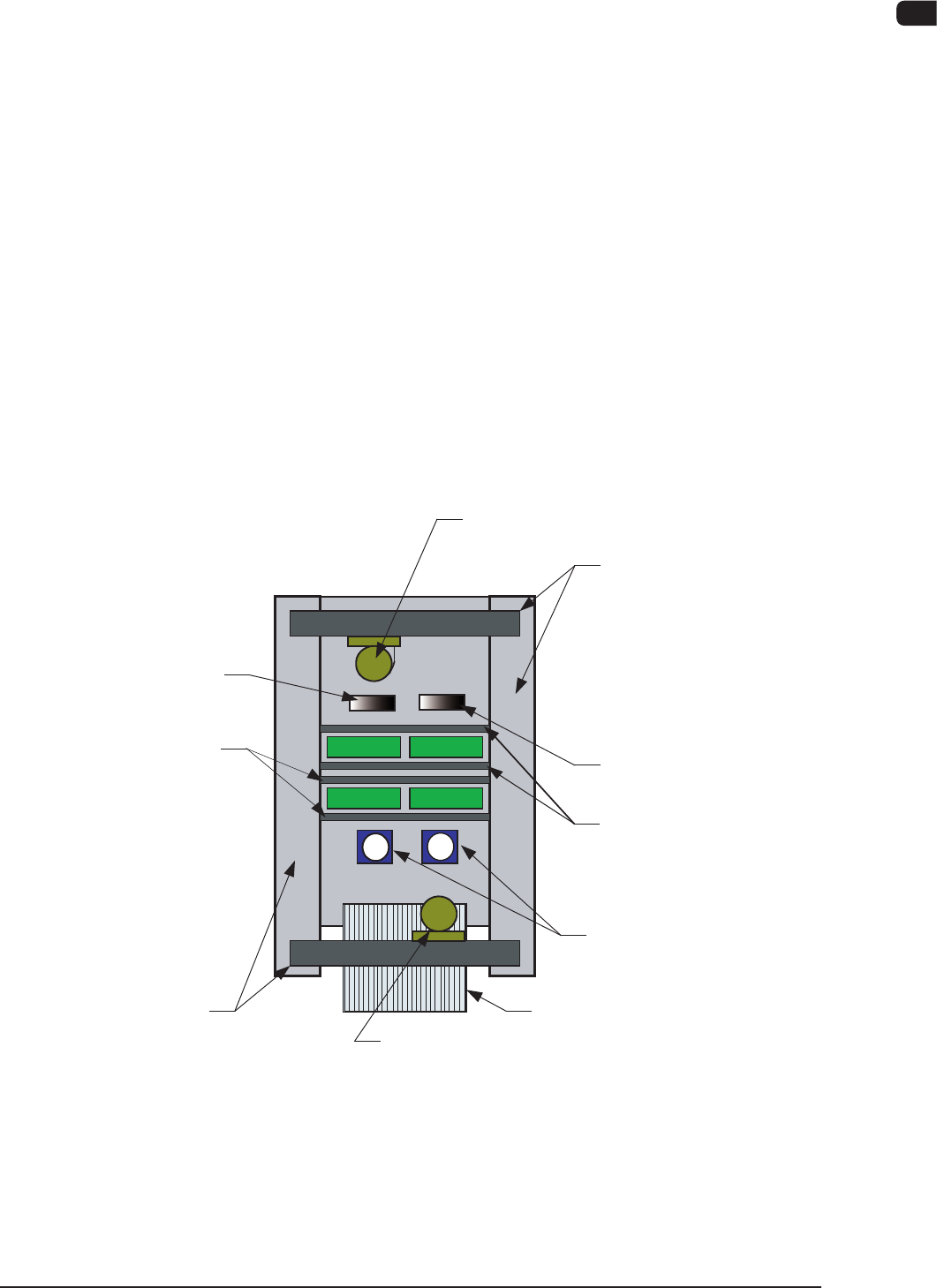

1.1 Location of Each Unit

Cart Installation Section

Placement Head Section,

PEC Recognition Section

Placement Head Section,

PEC Recognition Section

XY Beam Section

Nozzle Stocker Section

PCB Transfer Section

Component Recognition Unit

F1A1
