5. Running-In Operation : Chap.3
5. Running-In Operation
When the machine has been stopped for a long period of time, check the
performance of the machine.
For the performance check of the machine, a running-in operation for approx. 30
minutes in advance is required.
Notice
Observethefollowingtopreventanydeciencyintherunning-in
operation.
•
Do not set any PCB to be produced on the machine.
•
The feeders on the feeder base can be loaded with components.
However, it should be noted that the settings of the test run
(described hereinafter) must be correctly made.
Procedure

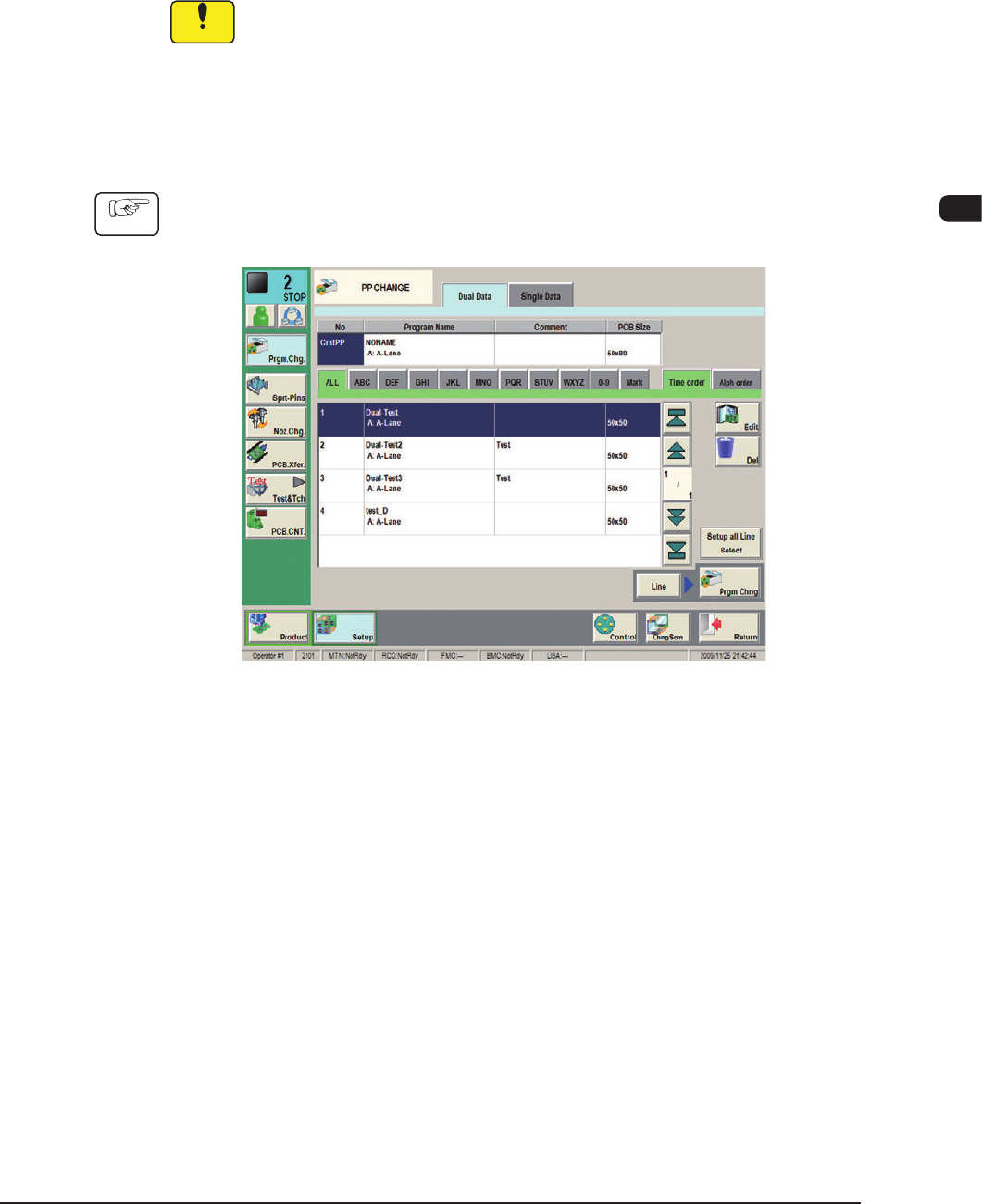

(1) Select the desired pattern program in the "PP CHANGE" window ("SETUP"
submenu) and press the [Prgm Chng] button.
F1C32
0911-001
1OM-1610
3-34
5. Running-In Operation : Chap.3

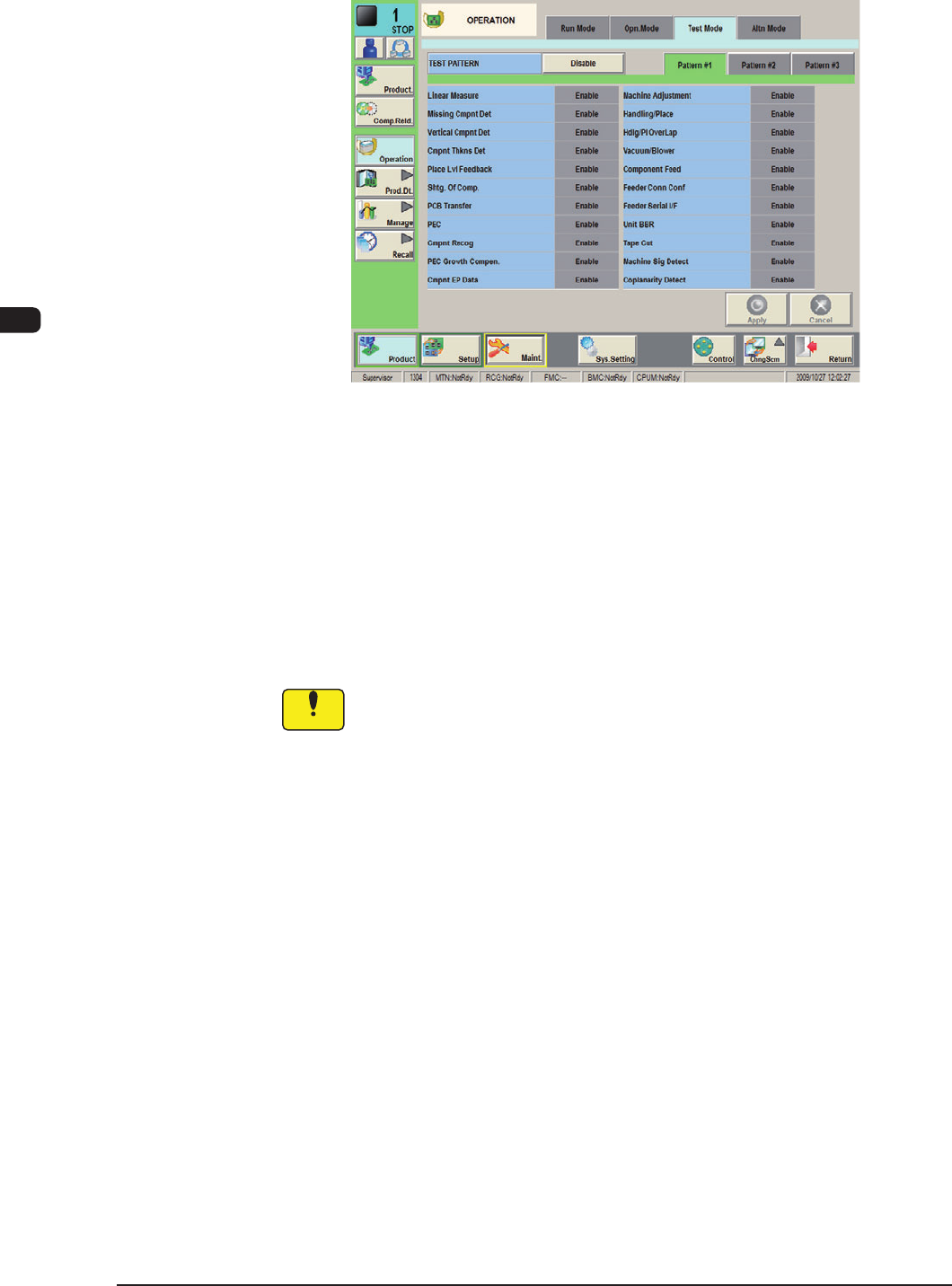

(2) Display the "Test Mode" tab sheet by pressing the [Test Mode] tab on the
"OPERATION" window.
F1C33
(3) Press one of the pattern buttons for a test run on running-in operation.
(Example: [Pattem #3] Button)
(4) Specify the test mode for the running-in operation by selecting the options
(located under the pattern selection buttons) and press the [Apply] button.
The specied test pattern is applied to the running-in operation.
Recommended Selection :
Turn all the items to be "Green".
Notice
Wrong selections (test run in wrong modes) will cause various
decienciessuchascomponentpicksbyvacuumnozzles,scatteringof
components, or collision with the chute, etc.
