3. PCB Replenishment : Chap.3
3.1.2 PCB Manual Removal Procedures
Procedure
(1) Stop the machine.
(2) Remove the PCB from the buffer section.
Notice
Do not bump the PCB against the transfer PCB detection sensor. Doing
so might damage the sensor, which might disable the normal PCB
transfer.
0911-001
1OM-1610
3-23
4. Stop, Interruption, and Restart of Operation : Chap.3
4. Stop, Interruption, and Restart of Operation
4.1 Stop of Machine Operation
4.1.1 Temporary Stop (Pause) with [STOP] Button
When you want to check the placement condition after the automatic operation
has been started, press the [STOP] button on the operation panel to temporarily
stop the automatic operation.
Note
(a) When the [START] button is pressed after conrmation of the placement
condition, the automatic operation restarts.
(b) When a wrong pattern program is specied as the current one (production
model), press the [STOP] button to temporarily stop the automatic
operation and follow the instructions described in "4.2 Interruption of
Automatic Operation" to interrupt the automatic operation.
4.1.2 Method based on Stop mode

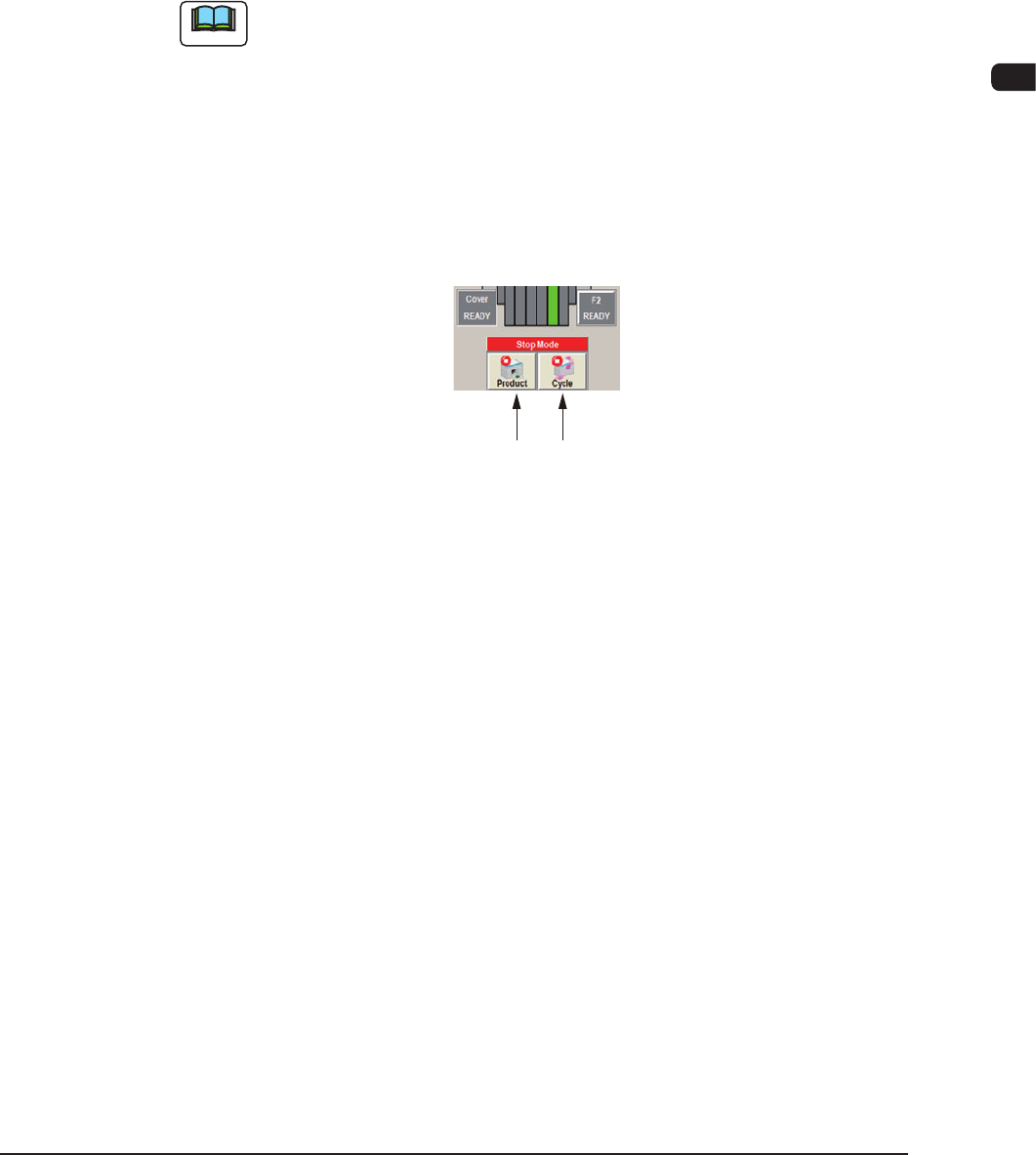

[Product] Button
[Cycle] Button
F1C20
Stop with [Product] Button
When the [Product] button in the operation window is pressed, the machine
discharges the PCB after the production of the unnished PCB is completed.
After that, the automatic operation stops.
At this time, the green lamps of the [START] button on the operation panel
and the light tower extinguish.
Stop with [Cycle] Button
When the [Cycle] button in the operation window is pressed, the green lamps
of the [START] button on the operation panel and the light tower extinguish
and the automatic operation stops after the machine has placed components
on each PCB of Stages #1 and #2.
0911-001
1OM-1610
3-24
4. Stop, Interruption, and Restart of Operation : Chap.3
4.1.3 Method based on Setting of Automatic Operation Stop

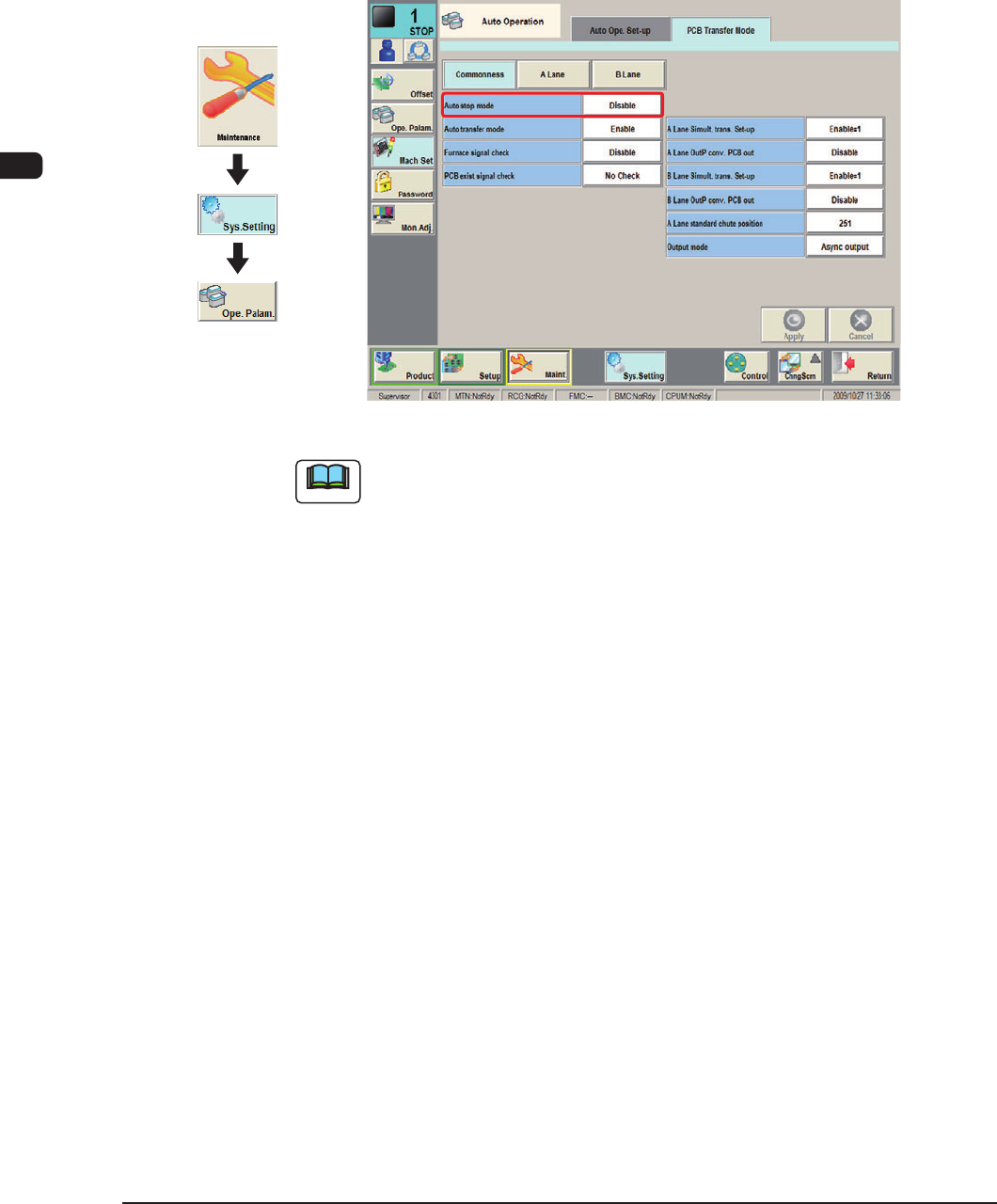

Set the "Auto stop mode" to [Enable] in advance on the "PCB Transfer Mode" tab
sheet.
When the operation is the input machine is completed, the machine is
automatically stopped after all the PCBs on the system line are processed and
discharged.
F1C21
Note
If any machine manufactured by any other company is connected in this online
conguration, this function might not be available.
