1OM-1610
2-12
2. Operation Screen : Chap.2
Button :
Image Matching Mode
When the
button is pressed, after the recognition image
is displayed in the single display mode, the image movement
buttons appear.
F1B6-3
Image Movement Buttons ( Buttons)
The image is moved in the arrow direction of the selected button.
Button :
Change Button
Pressing this button changes the image in the front/rear
judgement or polarity judgement operation.
Button :
Multi-Display Mode Button
Pressing this button changes to the multi-display mode
window.
[3]
Close Button (
Button)
Pressing this button closes the recognition window in the image matching
mode.
0911-001
1OM-1610
2-13
3. Entry of Each Paramenter : Chap.2
0911-001
3. Entry of Each Paramenter
The following describes how to enter each parameter in an operation
window.
3.1 How to enter numerical values
Procedure
(1) When a button for the data entry is pressed in an operation window, the
corresponding window for the data entry opens.

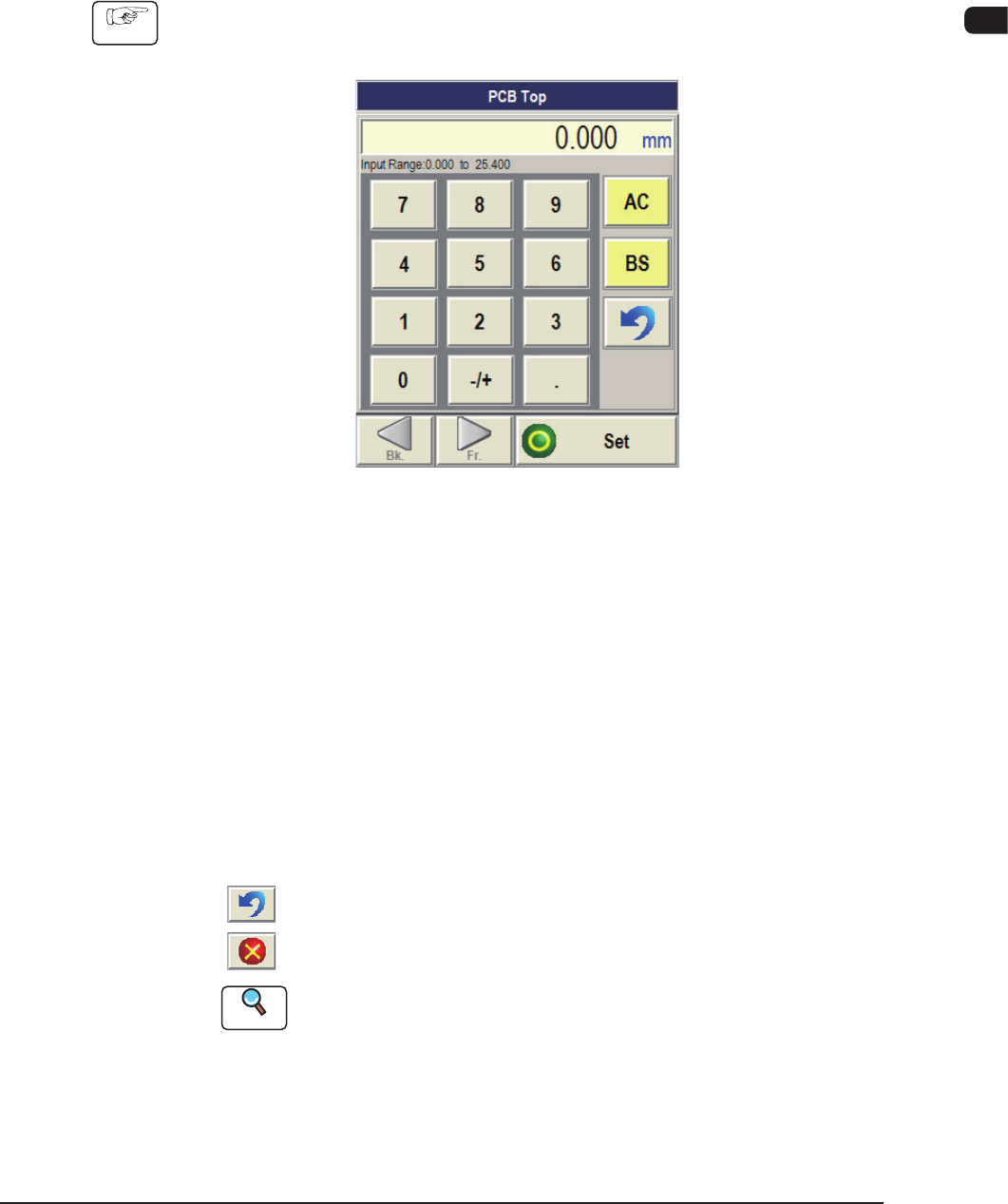

Numerical Data Entry (Ten-Key pad) Window Example F1B7
(2) Refer to the input range indicated at the bottom of the window and enter the
desired value with the ten-key pad. The entered numerical value appears in
the display box (located at the upper area of the window).
(3) When the [Set] button is pressed after the conrmation of the entered
value, the window for the data entry closes and the entered data appears in
theoperation window.
To cancel the correction of the entered data or the data entry, use the
following buttons.
[BS] Button
:
Deletes a character to the left of the cursor.
[AC] Button
: Deletes the data displayed in the display box.
[
] Button
: Makes it possible to retry the data entry operation.
[
] Button
: Cancels the data entry operation.
Reference
Refer to "3.2 How to enter a string of characters" for the detailed
information on how to enter character data such as a password.
1OM-1610
2-14
3. Entry of Each Paramenter : Chap.2
0911-001
3.2 How to enter a string of characters
Procedure
(1) When a button for the character data entry is pressed in an operation
window, the corresponding window for the character data entry opens.

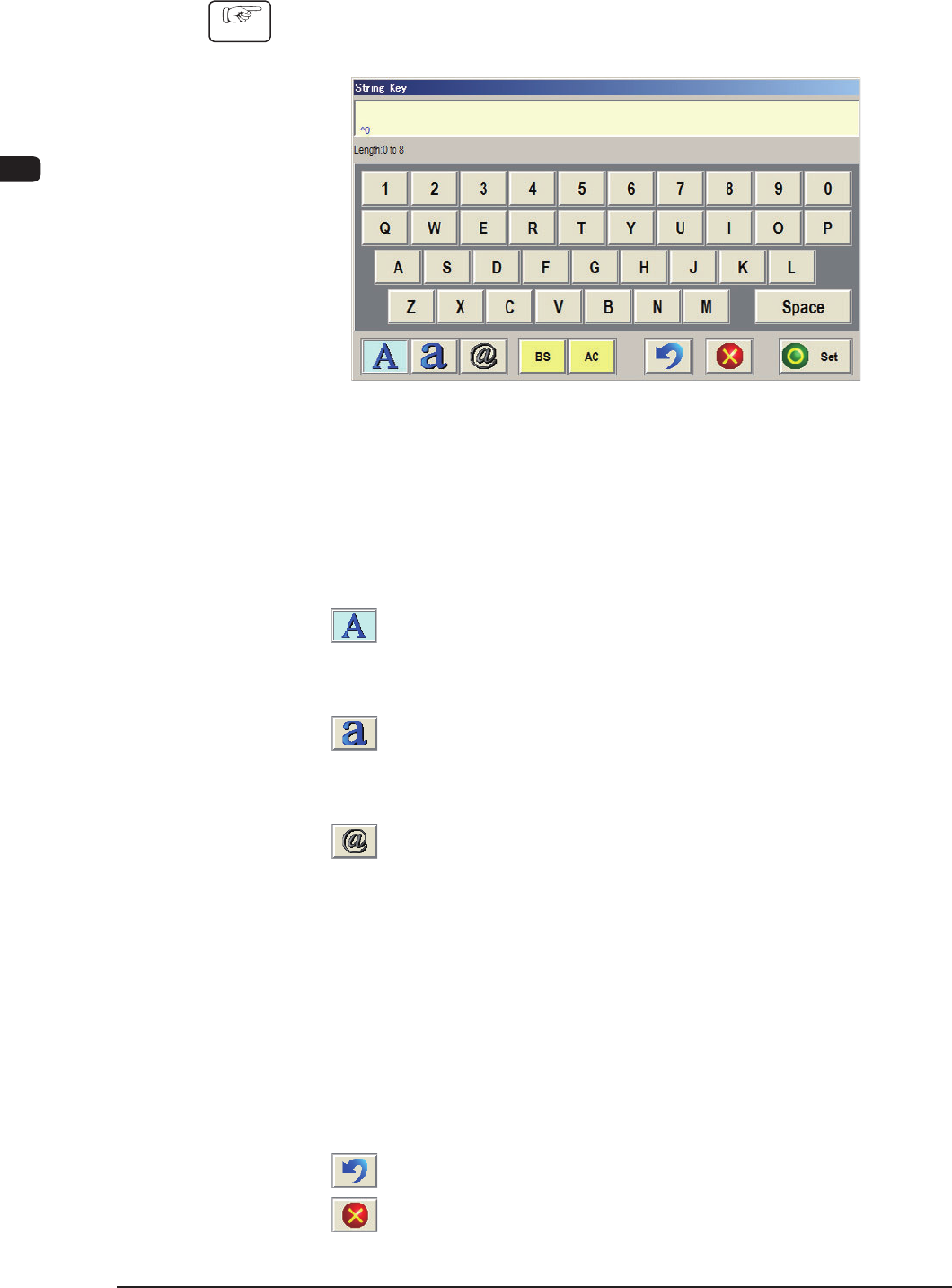

Character Data Entry (Virtual Keyboard) Window Example ("Password Entry" Window) F1B8
(2) When characters are entered using the corresponding keys on the on-screen
keyboard, the entered characters appear in the display box (located at the
upper area of the window).
Use the following buttons to facilitate your data entry (capital letters, small
letters, and symbols).
[
] Button :
Use this button to enter capital letters. When
pressed,this button turns blue, indicating that only
capital letters can be entered
.
[ ] Button :
Use this button to enter small letters. When pressed,
this
button turns blue, indicating that only small letters
can be entered.
[ ] Button :
Use this button to enter symbols.
When pressed, this button turns blue, indicating that
symbols can easily be entered.
(3)
When the [Set] button is pressed after the conrmation of the entered value,
the window for the character data entry closes and the entered data appears
in the operation window.
To cancel the correction of the entered data or the data entry, use the
following buttons.
[BS] Button
: Deletes a character to the left of the cursor.
[AC] Button
: Deletes the data displayed in the display box.
[
] Button
: Makes it possible to retry the data entry operation.
[
] Button
: Cancels the data entry operation.
