1.3.3 "AUTO OPN" window

Procedure

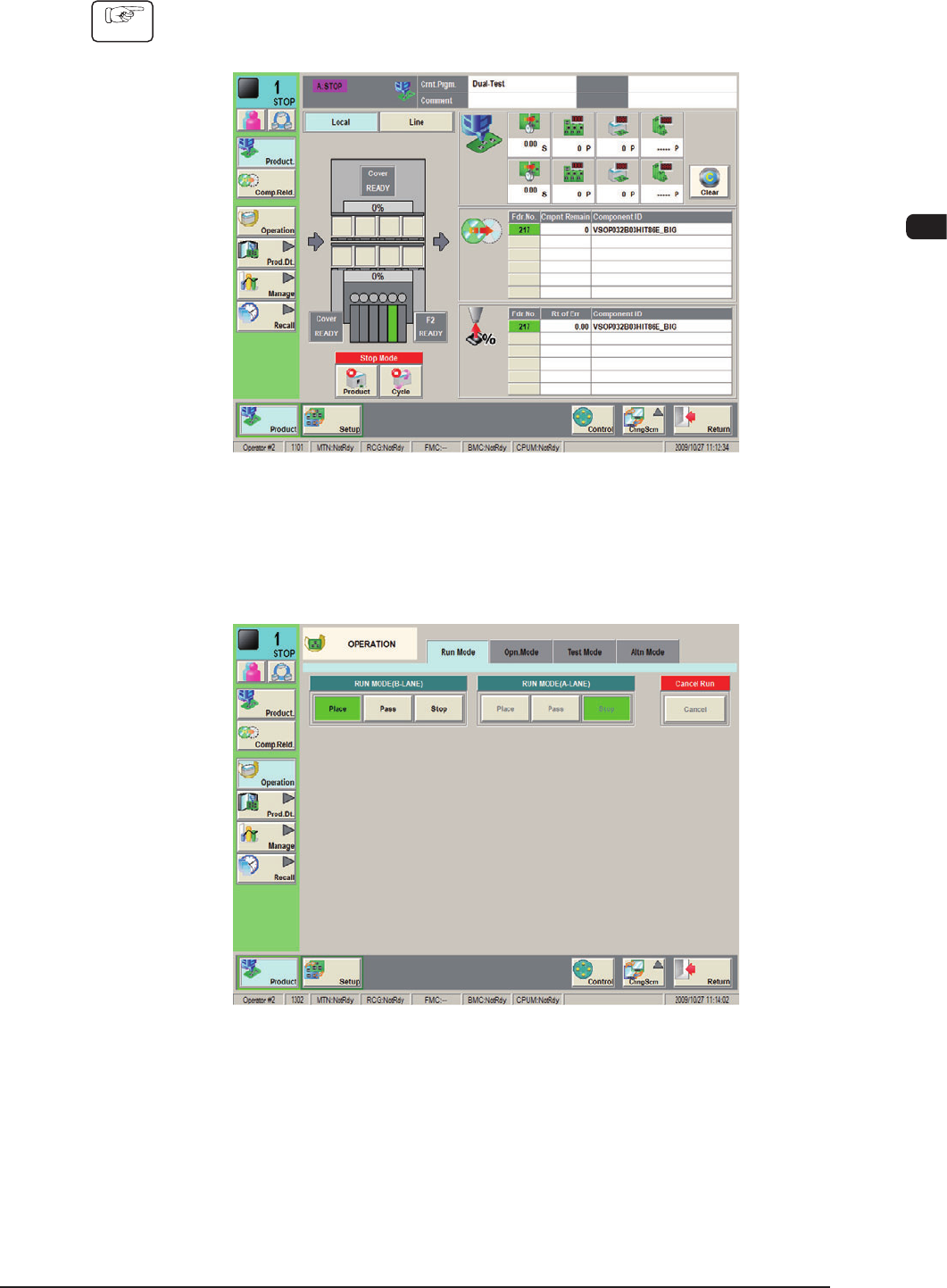

(1) Press the [Product] button on the "TOP" window.

The "Product" window appears on the touch screen.

F1C8

(2) Press the [Operation] button on the submenu bar.

The "Run Mode" window appears as an initial one of the "OPERATION"

window.

F1C9

1OM-1610

3-10

1. Automatic Operation : Chap.3

0911-001

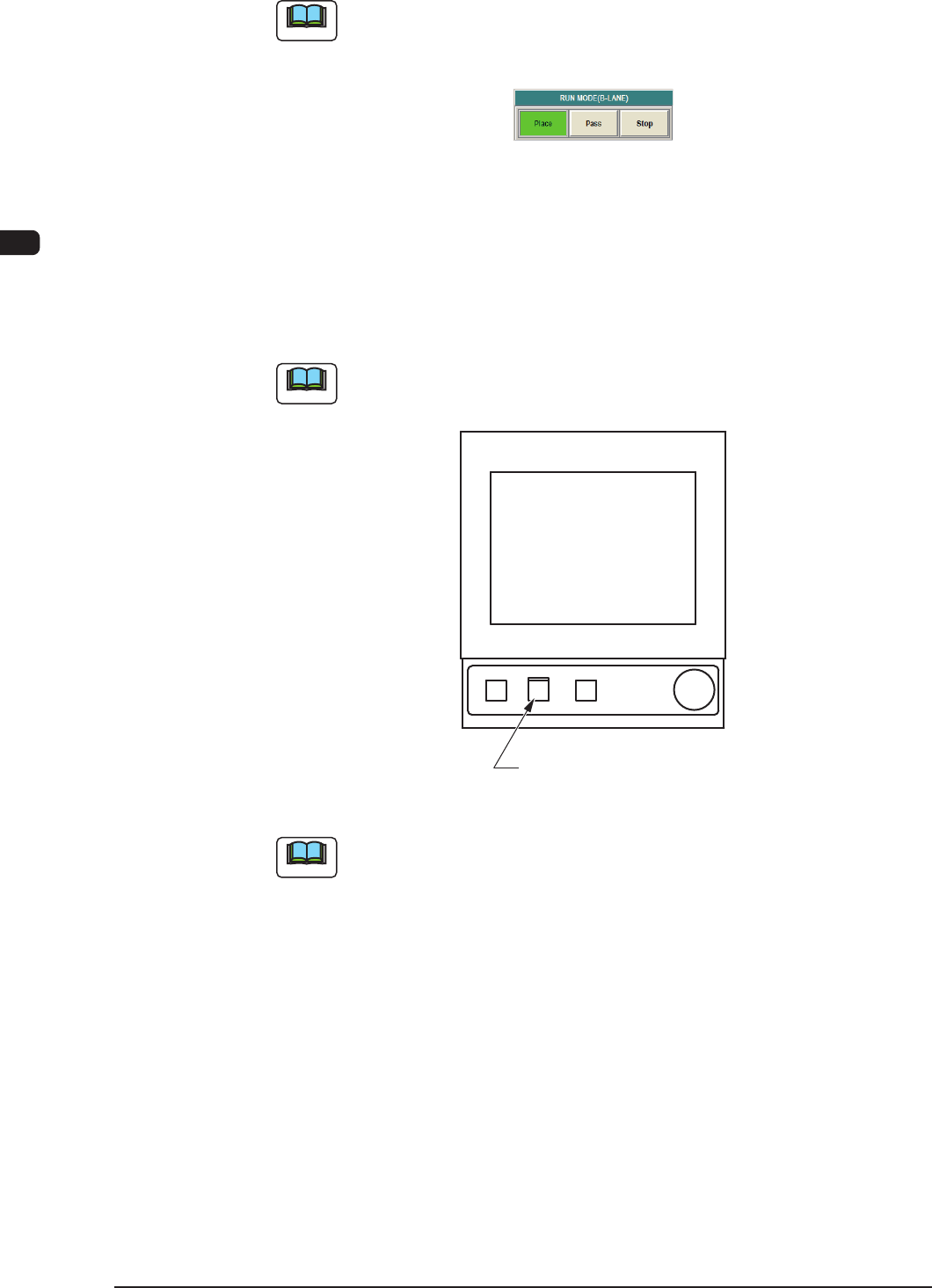

(3) Press the [Place] button (entitled "Run Mode").

Note

Press the [Pass] button (entitled "RUN MD") to set the "Pass" mode.

When the machine is set in the "Pass" mode, it just carries the PCB to the output

machine without placing any components on the PCB.

F1C10

(4) Press the [START] button while it is ashing.

The automatic operation (component placement) will be started up.

When the automatic operation (component placement) is started up, the

[START] button on the operation panel is turned ON (in green) and the green

lamp on the tower light is turned ON.

Note

In the case that the machine operation is not available when the [START] button

is pressed the rst time, a management information message is displayed.

［

START

］

Button

F1C11

Note

(a) The [START] button does not icker when a window other than the

"Product" window is active. Therefore, the automatic operation cannot be

started.

(b) When the PCB positioning section is already loaded with a PCB, the

machine discharges the PCB without placing any components on it.

1OM-1610

3-11

1. Automatic Operation : Chap.3

0911-001

1.3.3.1 Work during Automatic Operation

•

 ConrmationofOperationModeandProductionLog

The operation mode and the production log can be conrmed in the "Product"

window during the automatic operation.

Under the normal running condition, the current condition such as the program

names, the number of produced PCBs, etc., can be conrmed. In addition to

that, it can also be conrmed how many PCBs can be nished prospectively

and what degree of deterioration in the operation rate can be expected based on

pickup errors, etc.

By using the "Product" window, it can be conrmed if the machine is producing

the PCBs under normal condition or not, if there is any factor to deteriorate

the productivity or not, and what is happening due to the factor and where it is

happening.

When the productivity has deteriorated prominently, it is reported to the

operator with a message issued on the "Product" window.

•

Replenishment of Components and PCBs

When a component shortage error occurs during the aut

omatic operation, the

machine issues an error alarm. In this case, replenish the component supply.

Reference

Refer to "2. Component Replenishment" for details.

When a PCB shortage error occurs during the automatic operation, the input

machine issues an error alarm or this machine stops running automatically.

Reference

Refer to "3. PCB Replenishment" for details.

•

Interruption & Restart and Emergency Stop & Restoration of Automatic

Operation

Refer to the following when the automatic operation must be interrupted during

the automatic operation, the machine must be stopped immediately in an

emergency, or the automatic operation must be restarted or restored.

Reference

4.1 Stop of Machine Operation in Chapter 3

4.2 Interruption of Automatic Operation in Chapter 3
