1OM-1610 5-1 1. Specications : Chap.5 091 1-001 1. Specications 1.1 Specications of SIGMA-G4 Chip Mounter Item Description 1. Model Name SIGMA-G4 2. Throughput High-Speed Head Multi-Functional Head 65,000 CPH / module…

100%1 / 227
1OM-1610
0911-001 5-B
1OM-1610
5-1
1. Specications : Chap.5
0911-001
1. Specications
1.1 Specications of SIGMA-G4 Chip Mounter
Item Description
1. Model Name SIGMA-G4
2. Throughput
High-Speed Head Multi-Functional Head
65,000 CPH / module
Note :
The PCB transition time
under optimum conditions is
excluded.
Components : 9,000 CPH / 2 heads
Note :
The PCB transition time
under optimum conditions is
excluded.
3.
Placement
Accuracy
High-Speed Head Multi-Functional Head
0603 / 0402 : 40
µ
m (3
σ
) IC : 30
µ
m (3
σ
)
4.
PCB
T
ransition Time
0 second (Asynchronous Mode)
2 seconds or less (Synchronous Mode)
5.
Machine Scope This system employs the single side operation system and dual PCB transfer
system.
6. PCB Flow
Direction and
T
ransfer Reference
PCB Flow Direction
: From Left to Right / From Right to Left
(Selected when shipped from the factory)
Transfer Reference
: Front Left / Front Right
(Selected when shipped from the factory)
T1E1-1

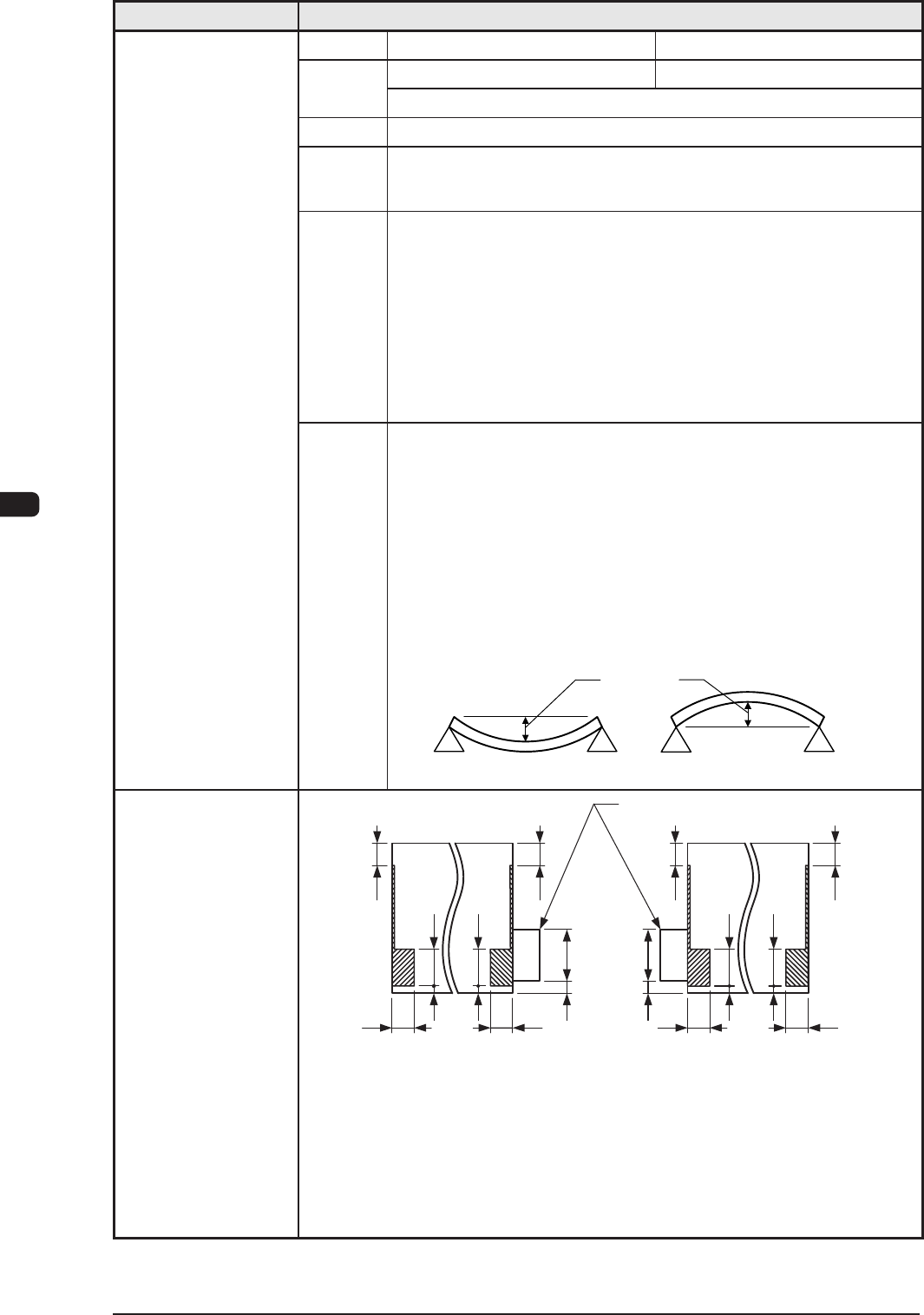

1OM-1610
5-2
1. Specications : Chap.5
0911-001
Item Description
7. Applicable PCB
Mode Dual Transfer Mode Single Transfer Mode
Dimensions
X × Y
50 × 50 to 610 × 216 mm 50 × 50 to 610 × 381 mm
Note : Four Corners
: R1 to R1.5 mm
Tickness
0.5 to
5.0 mm
Mass
Max. 1.5
kg (50 <= X <= 260 mm)
Max. 2.5 kg (260 < X <= 610 mm)
Material
Glass Epoxy
Ceramic
(Option)
Notes :
(a) Consult
our marketing department or sales agency for
Glass Epoxy with light color.
(b) Depending on the PCB material, shape, warpage, mass
or surface condition (gloss), etc., it should be tested
whether or not the PCB can be transferred, or the
components can be placed normally, to conrm.
Warpage
0.2 mm
or less per 50 mm (unit length)
Upper : Max. 1.0 mm
Lower : Max. 1.0 mm
•
0.2 mm
or less per 50 mm (unit length)
Example
:
The
warpage must be 0.8 mm or less
when the
PCB size is 200 mm.
•
Max. 1.0
mm
Example
:
The
warpage must be 1.0 mm or less
when the
PCB size exceeds 250 mm.
Warpage
8. Limitation of
Cutout and Hole
on PCB
30.5
15
9
25
25
5
5
15
PCB Flow Direction
from Right to Left
15 15
30.5
15
9
25
25
5
5
15
PCB Flow Direction
from Left to Right
15 15
PCB Positioning Stopper
Unit : mm
Note :
The shadowed
areas show the areas where a cutout should not exist.
When a
cutout or a hole exists in the shadowed area, perform a PCB
positioning test and conrm that the PCB can be positioned normally.
T1E1-2
