1OM-1610
1-10
2. Name and Function of Each Section : Chap.1
0911-001

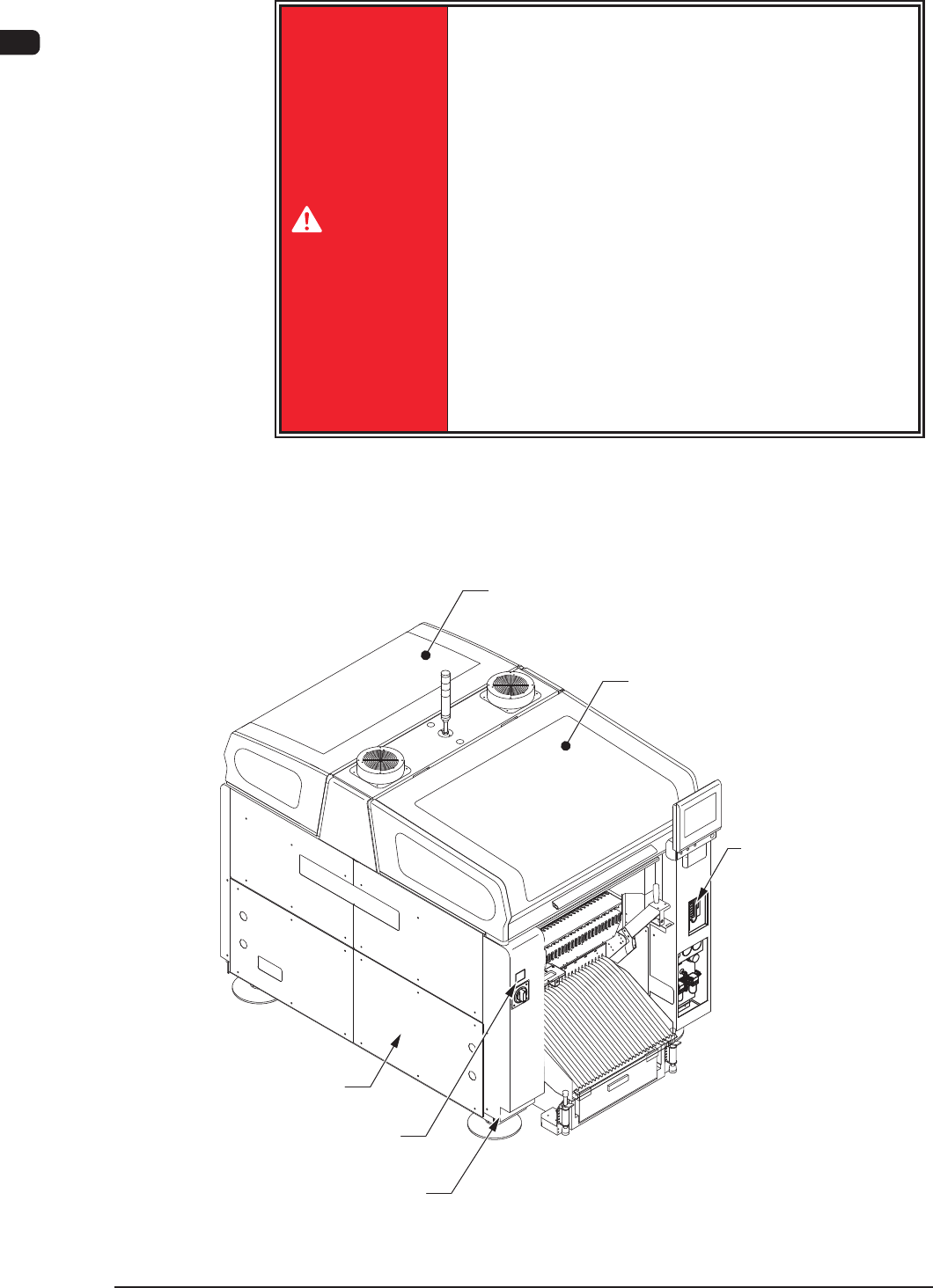

2.4 Cover Section
DANGER
There are strong motorized and high-voltage areas
inside the machine. Special caution should be paid
not to touch them.
Doing otherwise will cause personal injury (serious
accident).
•
Only qualified maintenance personnel should
detach the covers.
•
The machine should be operated with the covers
being attached.
•
If a cover is detached, be sure to reattach it.
•
Be sure to close the transparent covers (door
type) before operating the machine.
•
Do not disengage the interlock mechanism of the
transparent covers (door type).
The transparent covers and safety doors are mounted on the upper side of the
beam unit and around the base respectively, so that any part of your body, clothes
or object is not in contact with the moving section inside the machine, to prevent
any danger during the automatic operation.
Safty Cover (located around frame)
Machine Front Side
Storage Cover of
Electrical Part Storage Box
(located on the lower area
of both conveyor ends)
Cover Lock Switch
(Stage ready Switch)
Transparent Cover
(Door Type, Located over the beams)
Transparent Cover
(Door Type, Located over the beams)
Safty Cover
(located around frame)
F1A6
1OM-1610
2. Name and Function of Each Section : Chap.1
1-110911-001
The transparent covers on the upper area of the beams are provided with [Cover
Lock] switches. When the switch is pressed after the transparent cover (door type)
is closed, the LED turns on, indicating that the transparent cover cannot be opened
(locked electromagnetically).
WARNING
Be sure to keep the all
transparent covers closed to
avoid any danger when the automatic operation is
started or during the automatic operation.
CAUTION
Avoidhandandngerinjuries.
•
Be careful to avoid hand and nger injuries when
closing the transparent covers.
•
Hold the handgrip rmly and open or close the cover
slowly.
1OM-1610
1-12
2. Name and Function of Each Section : Chap.1
0911-001

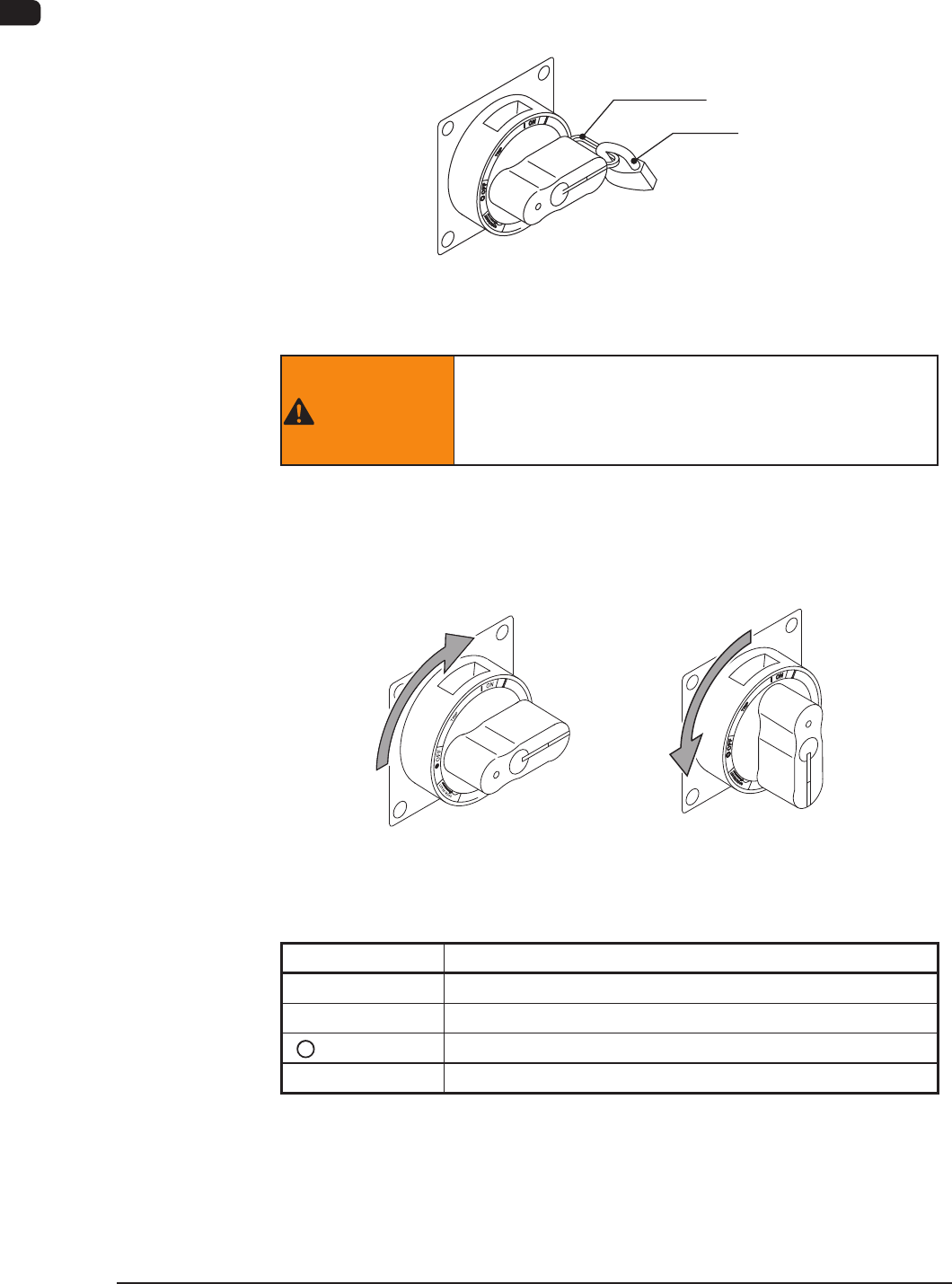

2.5 Power Breaker
The power breaker is used to supply or intercept the power to the main machine.
The power breaker can be locked with a padlock.
Lock Lever
Padlock
Power Breaker
F1A7
WARNING
Before performing maintenance work, shut off the
power breaker and lock the power breaker with the
padlock.
2.5.1 Operation of Power Breaker
Turn on the power breaker to supply power to the machine.
Turning off the power breaker intercepts the power to the machine.
POWER ON POWER OFF
Power Breaker
F1A8
Symbol / Name Function
|
(ON)
Power ON
tripped
Power Intercepted due to Overcurrent
(OFF)
Power OFF
RESET
Push this button for a power interception test.
T1A2
