1OM-1610
3-16
2. Component Replenishment : Chap.3
(4) Replenish the feeder with components.
(5) Install the component-replenished feeder at the specied feeder slot (Fdr
No.).
NOTICE
Be sure to install a feeder to the correct feeder slot
(Fdr No.).
Otherwise, some components may be trapped between the
heads.
Be sure to insert the feeder deep inside.
Otherwise, if the suppressor is unhooked or lifted aoat,
it cannot be detected, causing the suppressor to interfere
with a head.
Install the feeders correctly such that they are seated
properly.
Otherwise, they may collide with the head sections or a
pickup error will occur.
Reference
Refer to the instruction manual of the tape feeder for the detailed information on
how to attach or detach the feeder.
(6) After the replacement of the feeder is completed, set the number of reloaded
components in the "Fdr. Reload" window.
•
Replenishment of New Tape
Press the [Cmp Reload] button.
Check the remaining number of components in the feeder list and conrm
that the feeder is replenished with components.
•
Replenishment of Used Tape
(when the number of taped components differs from the number of
components
speciedinthecomponentlibrarydata)
Press the [Crnt Cmp Rem] button. The "Crnt Cmp Rem" window opens.
Enter the number of reloaded components.
Check the remaining number of components in the feeder list and conrm
that the feeder is replenished with components.
(7) Press the [START] button on the operation panel.
The ashing [START] button continues to light (in green) and the operation
is re-started.
0911-001
1OM-1610
3-17
2. Component Replenishment : Chap.3
2.2 Intentional Component Replenishment during Automatic
Operation
Procedure
(1) Press the [STOP] button on the operation panel and stop the production
temporarily.
(2) Detach the feeder in short of components from the feeder base.
(3) Load the feeder with new components and attach it to the feeder base.

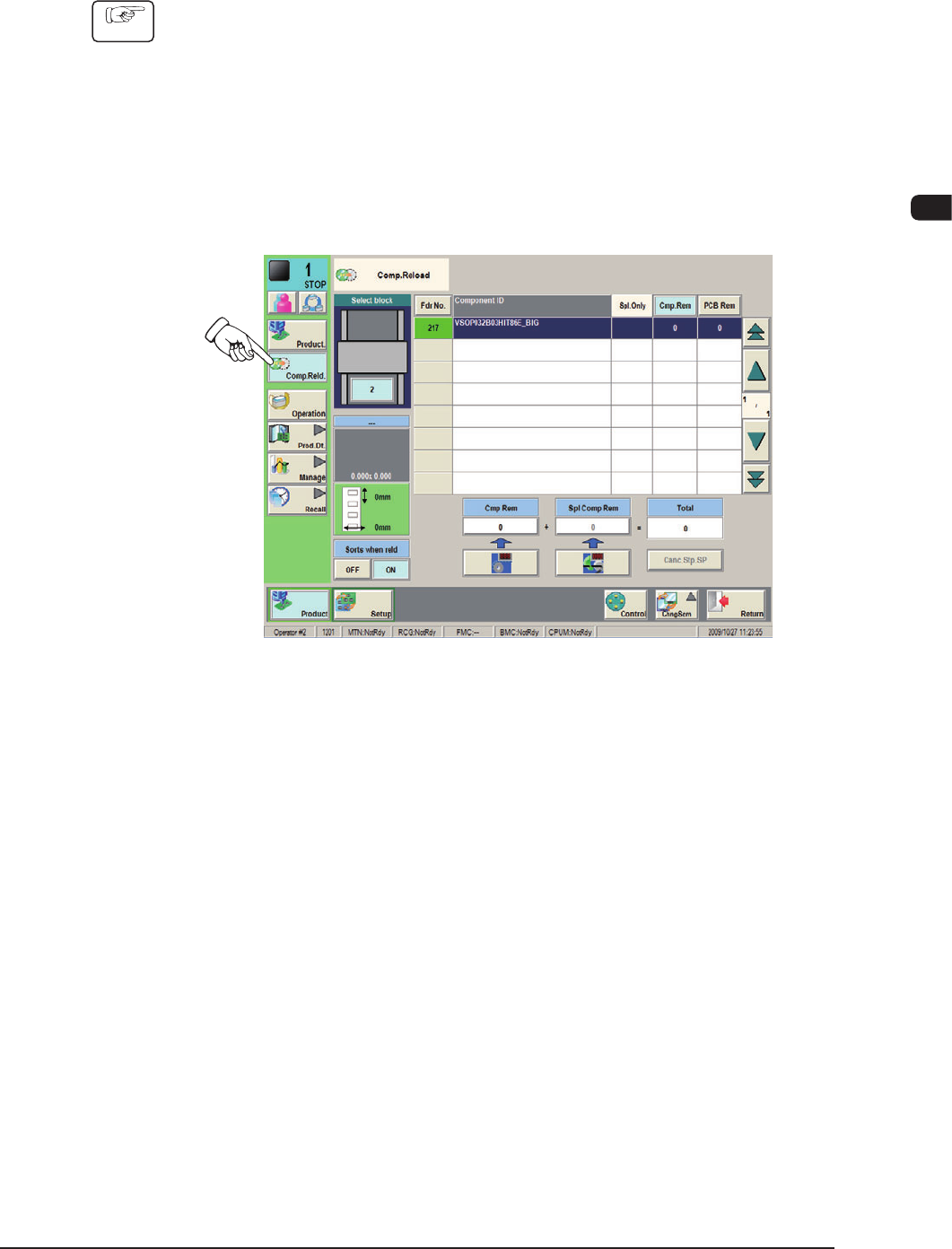

(4) Press the [Comp.Reld.] button in the "Product" menu. The "Comp.Reload"
window opens.
F1C16
(5) Press the "Fdr No." button corresponding to component-replenished feeder
base.
0911-001
1OM-1610
3-18
2. Component Replenishment : Chap.3
(6) Set the number of reloaded components.
•
Replenishment of New Tape
Press the [Comp.Reld] button.
Check the remaining number of components in the feeder list and conrm
that the feeder is replenished with components.
•
Replenishment of Used Tape
(when the number of taped components differs from the number of
componentsspeciedinthecomponentlibrarydata)
Press the [Cop Rem] button.
The "Cop Rem" window opens.
Enter the number of reloaded components.
Check the remaining number of components in the feeder list and conrm
that the feeder is replenished with components.
(7) Press the [START] button on the operation panel.
The automatic operation is re-started.
