1OM-1610

4-18

3. Program Change Operation : Chap.4

3.6 ConrmationofComponentPickupPosition

In normal cases, it is not necessary to check the pickup position because slightly

shifted position is automatically adjusted.

However, when a component that requires to be positioned precisely cannot be

picked up correctly for the rst time, a teaching operation must be performed on

the feeder Pickup Position.

0911-001

1OM-1610

4-19

4.ConrmationofPlacement:Chap.4

4. ConrmationofPlacement

4.1 Setting of Operation Mode

Before starting the automatic operation, press the [Operation] button on the

submenu bar. The "OPERATION" window appears. Conrm and specify the

following items related to the operation mode for the production model.

ConrmationandSettingofOperationMode

When the [Opn.Mode] tab is pressed in the "OPERATION" window, the "Opn.

Mode" window appears.

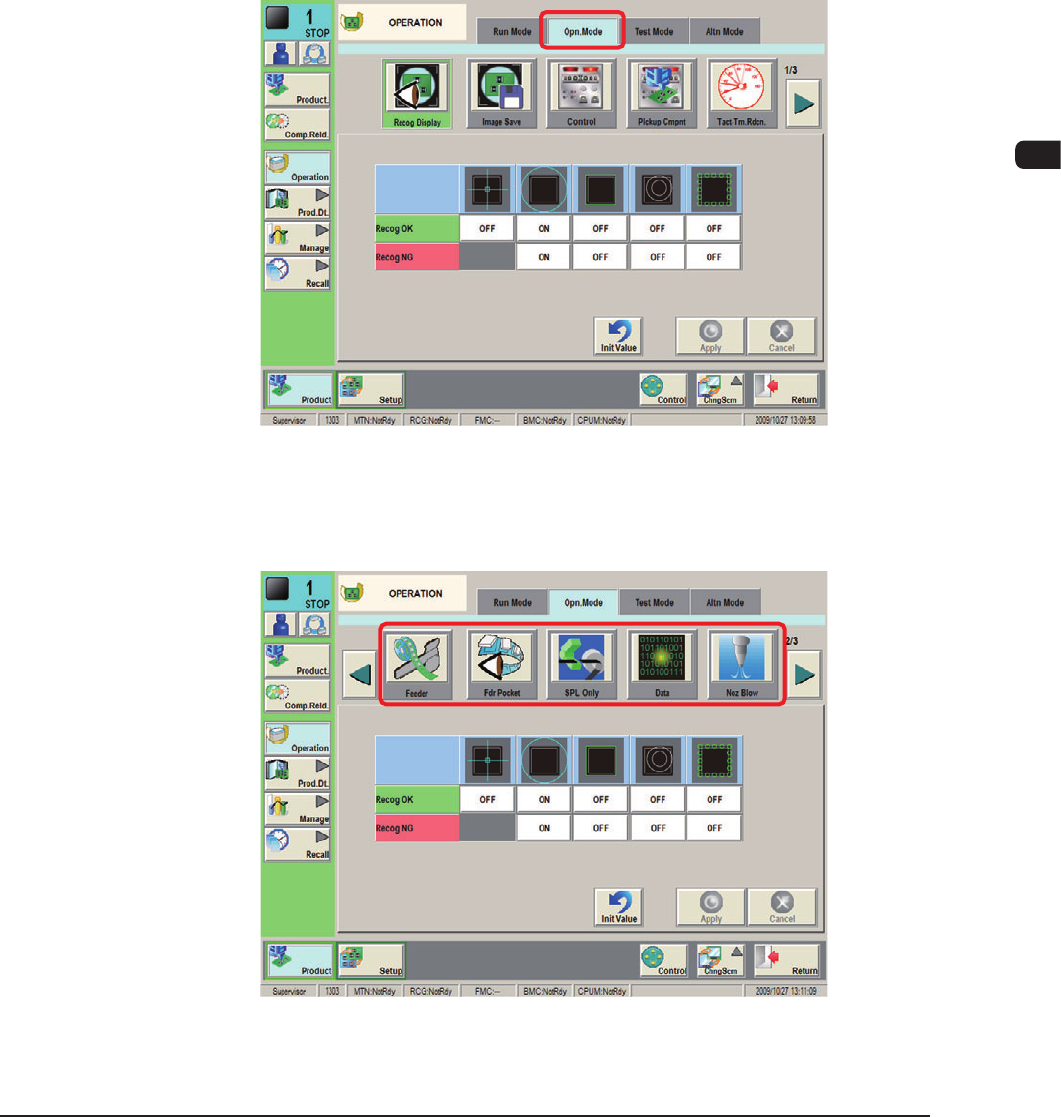

"Opn. Mode" Window (First Page) F1D18

Every time the [Page] button is pressed, the next page in the "Opn.Mode" is

displayed.

"Opn. Mode" Window (Second Page) F1D19

0911-001

1OM-1610

4-20

4.ConrmationofPlacement:Chap.4

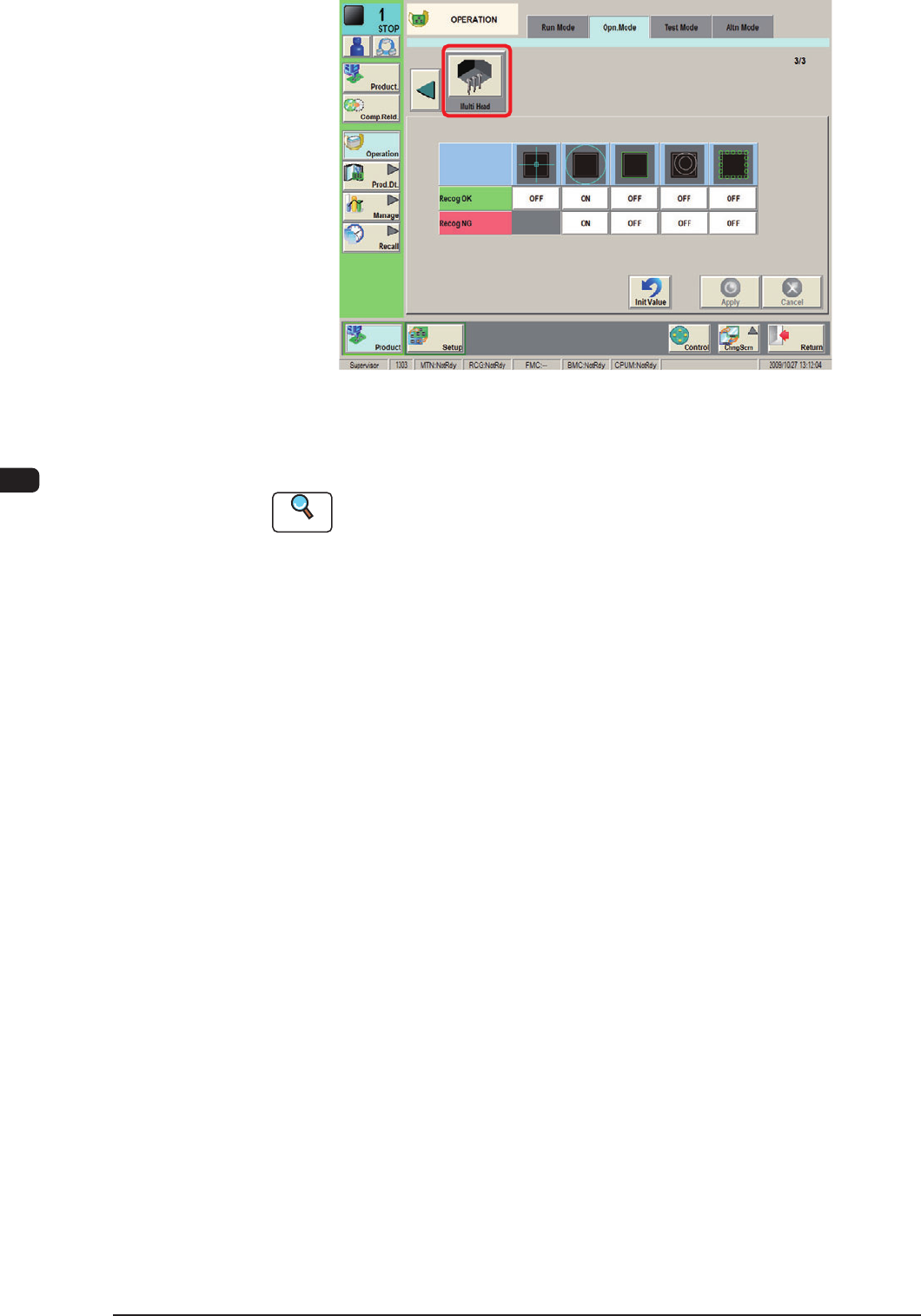

F1D20

Using each icon, the check and setting of the corresponding function are

performed.

Reference

Refer to "4.2 Operation Mode" in "Chapter 2 (Volume 2)" for details.

0911-001
