1OM-1610
3-23
4. Stop, Interruption, and Restart of Operation : Chap.3
4. Stop, Interruption, and Restart of Operation
4.1 Stop of Machine Operation
4.1.1 Temporary Stop (Pause) with [STOP] Button
When you want to check the placement condition after the automatic operation
has been started, press the [STOP] button on the operation panel to temporarily
stop the automatic operation.
Note
(a) When the [START] button is pressed after conrmation of the placement
condition, the automatic operation restarts.
(b) When a wrong pattern program is specied as the current one (production
model), press the [STOP] button to temporarily stop the automatic
operation and follow the instructions described in "4.2 Interruption of
Automatic Operation" to interrupt the automatic operation.
4.1.2 Method based on Stop mode
[Product] Button
[Cycle] Button
F1C20
Stop with [Product] Button
When the [Product] button in the operation window is pressed, the machine
discharges the PCB after the production of the unnished PCB is completed.
After that, the automatic operation stops.
At this time, the green lamps of the [START] button on the operation panel
and the light tower extinguish.
Stop with [Cycle] Button
When the [Cycle] button in the operation window is pressed, the green lamps
of the [START] button on the operation panel and the light tower extinguish
and the automatic operation stops after the machine has placed components
on each PCB of Stages #1 and #2.
0911-001
1OM-1610
3-24
4. Stop, Interruption, and Restart of Operation : Chap.3
4.1.3 Method based on Setting of Automatic Operation Stop
Set the "Auto stop mode" to [Enable] in advance on the "PCB Transfer Mode" tab
sheet.
When the operation is the input machine is completed, the machine is
automatically stopped after all the PCBs on the system line are processed and
discharged.
F1C21
Note
If any machine manufactured by any other company is connected in this online
conguration, this function might not be available.
0911-001
Graphic
Development
1OM-1610
3-25
4. Stop, Interruption, and Restart of Operation : Chap.3
4.2 Interruption of Automatic Operation
4.2.1 Interruption with [Cancel] Button
When it was found that a wrong pattern program is specied as the current one
(production model) and the production must be interrupted, follow the steps below
to interrupt the automatic operation.
Procedure
(1) Press the [STOP] button on the operation panel.
The automatic operation stops temporarily.

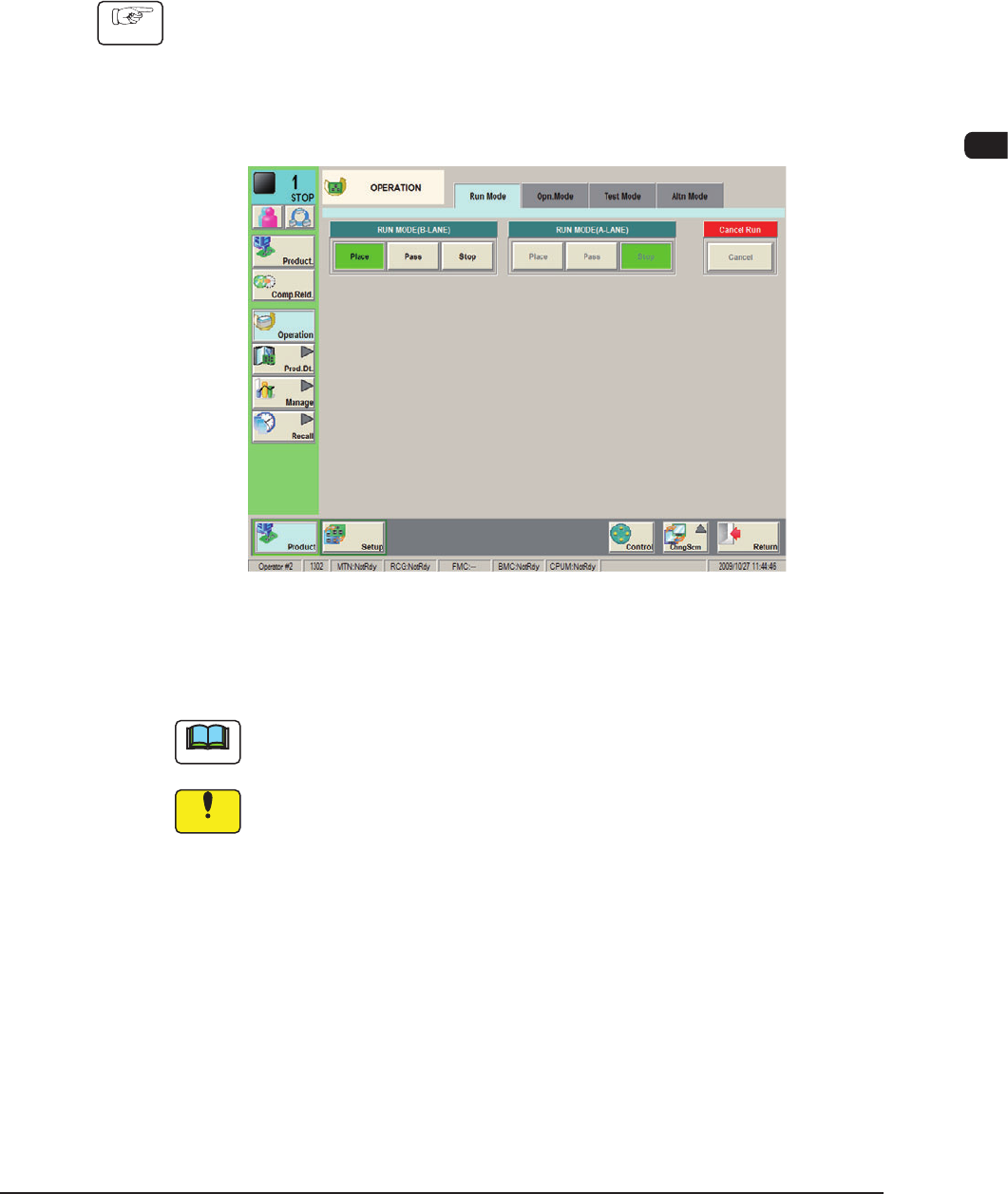

(2) Press the [Operation] button on the submenu bar of the "Operation" window.
The "OPERATION" window appears.
F1C22
(3) Press the [Cancel] button.
The automatic operation is interrupted.
Note
To continue the automatic operation from this interrupted mode, refer to "4.3
Resumption of Production through Warm Start Procedure" for details.
Notice
When a normal restart operation is performed after the continuous
operation has become impossible during component placement, the PCB
in the middle of process is discharged to the output machine, producing
a defective PCB.
Be sure to perform the reset operations through the "WARM START"
procedure.
0911-001
