from the die to the solder ball array . In the basic three designs, the signal is carried by wire, conductive material (ﬂip chip) or conductive ribbon-lead. The substrate can be ceramic or organic. The package properties…

It is recommended that the user specify that plastic encased

BGAs be furnished in the tray format rather than the tape-

and-reel format. The tray carrier will accommodate the

potential need to bake-out devices that are prone to mois-

ture absorption. For example, if the plastic BGA packages

are exposed to ambient conditions beyond their ﬂoor life,

they will likely require baking before assembly. The plastic

tray carriers developed for bake-out are rated to withstand

125°C temperature. The tape-and-reel materials, on the

other-hand, cannot be exposed to temperatures above 50°C

without damaging the carrier tape. So baking a moisture-

sensitive BGA in the tape format could take many days.

4.1.5 Thermal Performance Thermal enhancements

have become essential with introduction of faster and faster

microprocessors. With introduction of new generations of

microprocessors, power dissipation has continually moved

upward. As the device clocking speed increases, the power

goes up. The problem of higher power is mitigated, fortu-

nately, with ‘‘die shrink’’ made possible by the reduction of

transistor feature sizes in contemporary semiconductor pro-

cesses and the associated trend towards lower power sup-

ply voltages. (As device geometry shrinks, the ﬁeld inten-

sities increase, promoting a reduction in supply voltages to

avoid destructive effects.) The ceramic BGA is commonly

used for higher wattage packages, as it has greater thermal

conductivity than plastic packages. Plastic packages, how-

ever, have also evolved, and thermally enhanced plastic

packages are already in wide use by the industry. Ther-

mally enhanced plastic packages used to be limited to 6 to

8 watts; however, by incorporating integral metal heat

spreaders, plastic packages can accommodate up to 30

watts.

4.1.6 Real Estate Real estate constraint is one of the

important driving forces in reducing component package

size. This has contributed to the widespread usage of sur-

face mount devices, which are not only smaller in size, but

enable component mounting on both sides of the board. As

pin counts increase however, even with surface mount, the

conductor-to-conductor pitch must decrease to keep the

size of the package within a practical range for manufac-

turing.

As the contact pitch of the BGA package decreases, the

opportunity for placing more components in a given area

increases. Although the board real estate can now support

more functions per unit area, components such as the ﬁne

pitch BGA (FBGA) will likely require more narrow con-

ductors and closer conductor spacing for interconnection.

For assemblies with very high component density, a greater

number of conductive layers may be needed to maintain a

smaller circuit board form factor.

4.1.7 Electrical Performance Electrical performance

drivers include signal integrity, operating frequency, power,

and pin-count. With increasing frequency, the need for

improved impedance control and minimal package inser-

tion loss is a concern. When impedance control require-

ments are imposed, one must consider the need for termi-

nations to prevent or dampen reﬂections. These

terminations, if performed in parallel to source and/or load

points on critical signals, will increase power consumption.

High frequency operation itself, all other things being

equal, drives power consumption upward with the square

of frequency. As such, low power semiconductor develop-

ment has increased in an attempt to reduce the average

power consumption of complex digital ICs. Fortunately, as

IC processes mature, the power per logic operation

decreases by virtue of smaller device feature sizes. In the

case of ceramic packages, even with increase in bond lands

for high-speed devices, the pin count growth required for

power and ground distribution is kept to a minimum by

exploiting the intrinsically high package capacitance and

employing package-mounted bypass capacitors.

4.1.8 Mechanical Performance The susceptibility of

BGA assemblies to other failure modes caused by mechani-

cal shock, vibration and/or bending should also be

assessed. Procedures described in IPC-9702, IPC-9703,

IPC-9704, IPC-9707 and IPC-9708 provide guidance in

completing assessments such as mechanical shock and

bend testing. The interconnect failure modes from these

type of exposures extend beyond solder joint failure. One

other failure mode that may be observed through this type

of mechanical testing is pad cratering, the fracturing of the

resin layer in the PCB under the BGA pad. These cracks

initiate at the edge of a BGA pad and continue to propagate

through the underlying resin layer. The fracture may follow

various paths. There may be an adhesive failure between

the copper pad and the underlying resin, or there may be a

cohesive failure due to a fracture entirely within the resin

layer.

Electrical failure will occur when the conductor trace lead-

ing to the BGA pad fractures. Depending on the location of

the mechanical loading, the trace fracture may occur either

before or after the pad crater fracture propagates under the

BGA pad. This phenomenon can result in the risk of latent

defects creating long term reliability exposure. A pad cra-

ter may be initiated during the mechanical handling of

assembly processing, but not detectable at test by electrical

failure. Subsequent thermo-mechanical exposure may

result in the propagation of the crack through a conductor,

and later, electrical failure in the ﬁeld. Even if the conduc-

tor does not crack, the laminate crack creates the potential

for increased moisture ingress which could result in CAF

formation.

4.2 Die Mounting in the BGA Package There are many

ways a die is mounted in a BGA. The three main variations

can be differentiated by the medium of signal transmission

January 2013 IPC-7095C

Provided by IHS under license with IPC

Not for Resale

No reproduction or networking permitted without license from IHS

--`,,```,,,,````-`-`,,`,,`,`,,`---

from the die to the solder ball array. In the basic three

designs, the signal is carried by wire, conductive material

(ﬂip chip) or conductive ribbon-lead. The substrate can be

ceramic or organic. The package properties will depend on

the properties of the substrate material and its dimensional

parameters. The following descriptions represent the more

common methodology for die-to-package assembly.

4.2.1 Wire Bond There are two main forms of the wire

bonded BGA. They are chip-on-board (COB) with the

active surface of the die facing away from the substrate,

and board-on-chip (BOC) types with the active surface of

the die facing toward the substrate. In both these structures,

the bond pads on the die are generally furnished at the

periphery and the wire bonds are made from the die periph-

ery to the lands on the substrate surrounding the die.

The die can be attached to the substrate using conductive

or nonconductive adhesive. Use of electrically conductive

adhesive is speciﬁed when the die backside requires an

electrical connection. The drawback is that the substrate

area under and equivalent to size of the die cannot be

accessed for in-package circuit routing. If the die does not

require a backside electrical connection, then a nonconduc-

tive adhesive can be used to place the die on the substrate.

In this case, the area under the die can be used for signal

routing.

The adhesive selected for die attach must not adversely

affect the mechanical integrity of the traces or the integrity

of the electrical signal. Following die attach and adhesive

curing process, the die is ready for electrical interface to

the substrate base. The bond pads on the die are connected

electrically to the bond pads on the substrate using gold

wire or aluminum wire where feasible. The traces on the

substrate route the signals from wire bond pads to the ball

grid array on the bottom of the substrate through plated via

holes. Following the wire-bond process, the die and bond

area is typically protected by encapsulation. Encapsulation

material can be applied in the form of glob top or it can be

molded in a press. An alternative to encapsulation is the

post-assembly attachment of a pre-molded cover.

In the BOC or die face-down structure, the bond pads on

the die can be located at the die periphery or in a row or

rows at the center of the die. The substrate is designed with

a narrow slot to accommodate the row or rows of bond

pads on the die. The die-to-substrate adhesive is placed to

the right and left of the bond pads. The adhesive can be

applied in the form of a paste or a ﬁlm. The active or cir-

cuit side of the die is attached face-down onto the substrate

with the substrate slot exposing the bond pads on the die

typical of that shown in Figure 4-2.

Following die attachment and adhesive cure, the bond pads

on the die are wire-bonded to the corresponding pads sur-

rounding the slot on the substrate. Following wire-bond,

the wires and exposed die surface are encapsulated for pro-

tection. Note that one or more grid array rows will need to

be depopulated to allow the slot in the substrate for wire

bond to the die. Also note that the wire bonding is accom-

plished at the center of the die and does not require

additional peripheral area around it for die-to-substrate

interface. Figure 4-3 illustrates the top and bottom of a

mold-encapsulated BGA package.

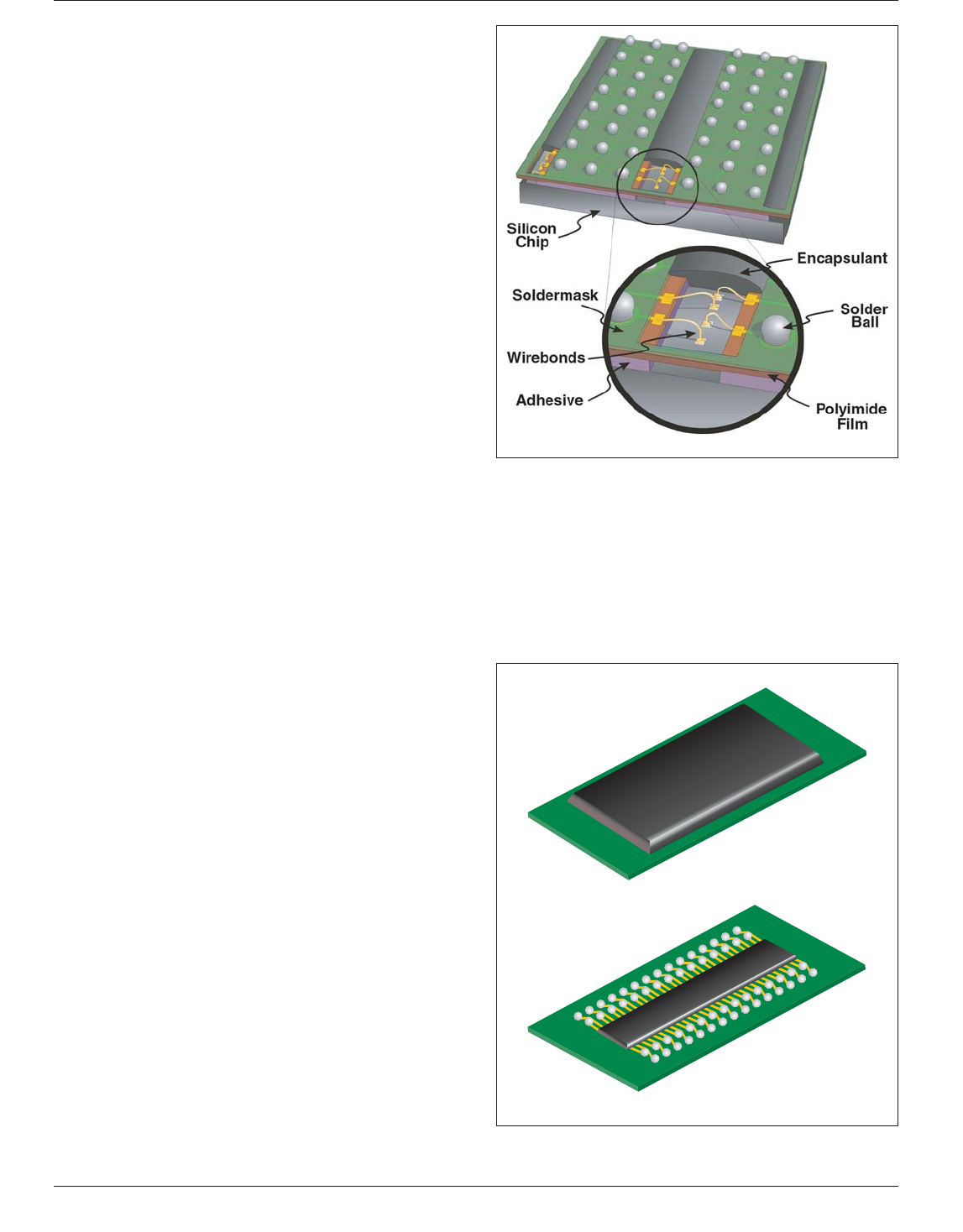

IPC-7095c-4-2

Figure 4-2 BOC BGA Construction

Top

Bottom

IPC-7095c-4-3

Figure 4-3 Top of Molded BOC Type BGA

IPC-7095C January 2013

Provided by IHS under license with IPC

Not for Resale

No reproduction or networking permitted without license from IHS

--`,,```,,,,````-`-`,,`,,`,`,,`---

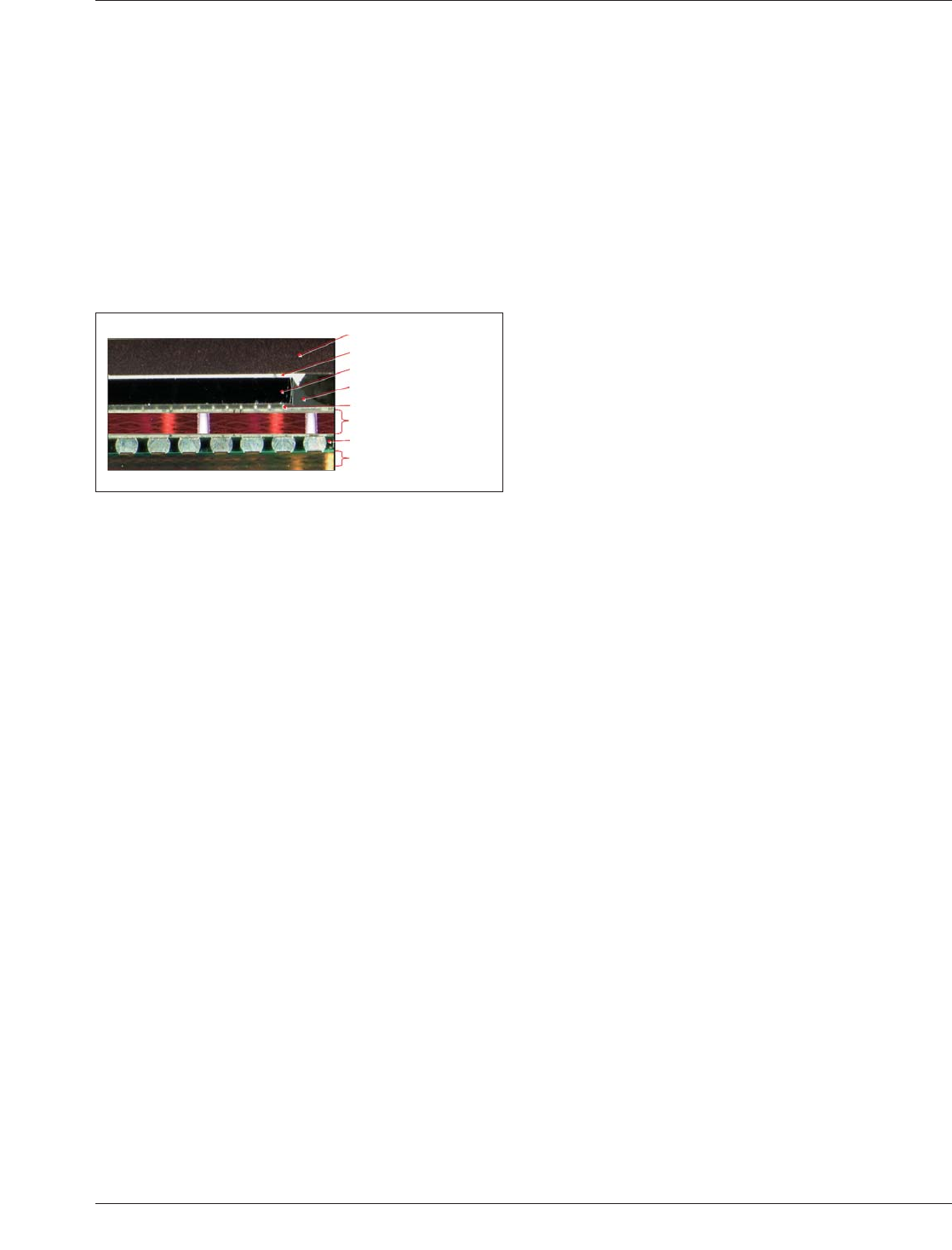

4.2.2 Flip Chip The ﬂip chip (or direct-chip-attach)

design eliminates the need for wires and die attach. In this

design, the pre-bumped die is ﬂipped circuit side down and

the lands on the circuit side of the die are brought into

contact with corresponding lands on a substrate using sol-

der or conductive adhesive. The die bond pads, however,

are not immediately compatible with either solder or con-

ductive adhesive attachment processes. Solder bumping

with a solder compatible alloy composition before the die

wafer is sawed is one of the most common procedures. The

solder material and the bumped-pad structure materials are

chosen to optimize electrical and mechanical connection

typical of that shown in Figure 4-4.

Conductive adhesive or polymer attachment can be adapted

as well; however, the die bump contact may require a

‘‘noble’’ alloy that is compatible with the conductive alloy

particles in the adhesive. This alloy bump or ball can be

applied to the die bond pads by plating or ball bonding

processes. If a solder or an isotropic conductive adhesive is

used, the gap between the die and the substrate may require

an under-die-ﬁlling with epoxy to ensure mechanical integ-

rity of the die-to-substrate interface. Use of an anisotropi-

cally conductive material eliminates the need for added

underﬁll. After attaching the die to the substrate, it is typi-

cally encapsulated, coated, or over-molded for protection.

4.3 Standardization Standardization of BGA packaging

has considered a number of physical variables including

the diameter of the individual ball, the positional accuracy

of the ball in relationship to a true position within the com-

ponent outline.

4.3.1 Industry Standards for BGA For more detail

regarding package variation, mechanical feature dimen-

sions and allowable physical tolerances, refer to the follow-

ing JEDEC developed guidelines for BGA packaging.

4.3.1.1 BGA Package JEDEC Publication JEP95,

Section 4.14 deﬁnes a ball and column grid array package

family. A ball grid array (BGA) package or column grid

array (CGA) is a square or rectangular 1.50, 1.27, and

1.00 mm pitch package with an array of metallic balls or

columns on the underside of the package. The main body

of the package has a metallized circuit pattern applied to a

dielectric structure. To this package body, the semiconduc-

tor die(s) are attached to either the top or bottom surface.

On the underside of the dielectric is an array pattern of

metallized balls/columns which form the mechanical and

electrical connection from the package body to a mating

feature such as a printed circuit board. The surface that

contains the die may be encapsulated by various techniques

to protect the semiconductor.

4.3.1.2 Fine Pitch BGA Package JEDEC Publication

JEP95, Section 4.5 deﬁnes an FBGA package as a reduced-

pitch (<1.00 mm) version of a BGA package. The carrier

body of the package has a metallized circuit pattern applied

to a dielectric structure. One or more semiconductor

devices are attached to either the top or the bottom surface

of this dielectric carrier. On the underside of the dielectric

carrier is an array pattern of metallized balls, which form

the mechanical and electrical connection from the package

body to a mating feature such as a printed circuit board.

The surface that contains the die may be encapsulated

by various techniques to protect the semiconductor.

The requirements for a square FBGA package family

allows three optional contact pitch variations: 0.50, 0.65,

and 0.80 mm and deﬁnes four device proﬁle (height) varia-

tions as well. Additionally, a 0.75 mm contact pitch has

been included on the Die Size BGA (DSBGA) package

guideline, thus providing four pitch variations for the die

size device family.

The total proﬁle height of the FBGA as measured from the

seating plane to the top of the component is >1.70 mm. The

low-proﬁle ﬁne-pitch ball grid array (LFBGA) is a

reduced-height version of an FBGA. The total proﬁle

height of the LFBGA as measured from the seating plane

to the top of the component is no greater than 1.20 mm.

Thin proﬁle ﬁne pitch ball grid array (TFBGA) is a

reduced-height version of an FBGA with a total proﬁle

height as measured from the seating plane to the top of the

component that does not exceed 1.00 mm and the very thin

proﬁle ﬁne pitch ball grid array (VFBGA) is a reduced-

height version of an FBGA with a total proﬁle height as

measured from the seating plane to the top of the compo-

nent that is at or below 0.80 mm.

The JEDEC design guide for FBGA allows the manufac-

turer the option to increase ball diameter as the spacing or

pitch between ball contact centers increase as compared in

Table 4-1. The JEDEC FBGA and FRBGA design guide

does not support the 0.75 mm pitch; however, the industry

has registered some nonconforming parts with that pitch.

These are non-JEDEC packages.

The larger ball diameter option has been allowed to accom-

modate packages using rigid interposer structures. The

larger diameter ball may compensate, to a degree, for the

wide mismatch of the coefficient of thermal expansion

(CTE) between the silicon die and the rigid PCB structure.

IPC-7095c-4-4

Figure 4-4 Flip-Chip (Bumped Die) on BGA Substrate

Heat Spreader

Thermal Paste

Flip Chip Solder Balls

Package Substrate

BGA Solder Balls

Circuit Board

Underfill

Die

January 2013 IPC-7095C

Provided by IHS under license with IPC

Not for Resale

No reproduction or networking permitted without license from IHS

--`,,```,,,,````-`-`,,`,,`,`,,`---
