some companies choose to develop a multiple function die (system-on-chip), this option may not be practical for many others. Because of the length of time to develop a custom die with mixed function capability , most com…
Memory devices such as Flash, SRAM and SDRAM are
the first commodity type products in the market to adapt
FBGA and CSP in high volume. However, digital signal
processors, controllers, CPUs and any number of applica-
tion specific IC devices are also prime candidates for mul-
tiple die packaging. Many of the multiple die packages
adapt a simple wire-bond process for die-to-substrate inter-
face. The die and wire bond area is then encapsulated or
over-molded to furnish the single package outline. Wire-
bond solutions are capable of furnishing a two or more die
stack, but package height increases significantly with each
added die layer.
Two or more ICs encased in a single package outline is
more efficient in both size-to-function ratio and may
enhance performance. Multiple die packaging potentially
increases component density and improves component-to-
component circuit routing efficiency on the printed board.
Some of the multiple die package methodologies attach one
die on top of the other on a single substrate as illustrated
in Figure 4-13.
Die stacking different size die in a pyramid fashion is com-
mon but, when the die are the same size, a spacer must be
added between each active die to clear the wire-bond loop.
4.4.7 System-in-Package (SiP) To provide space for the
additional functions companies are combining a number of
related functions into a single package outline. Although
Figure 4-10 Ceramic-Based Column Grid Array (CCGA) Package
IPC-7095c-4-11
Figure 4-11 Polyimide Film-Based Lead-Bond µBGA Pack-
age Substrate Furnishes Close Coupling Between Die Pad
and Ball Contact
IPC-7095c-4-12
Figure 4-12 Comparing In-Package Circuit Routing Capa-
bility of the Single Metal Layer Tape Substrate to Two Metal
Layer Tape Substrate
Single
Metal
Tape
Two
Metal
Tape
IPC-7095C January 2013
26
Copyright IPC-Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--`,,```,,,,````-`-`,,`,,`,`,,`---
some companies choose to develop a multiple function die
(system-on-chip), this option may not be practical for many
others. Because of the length of time to develop a custom
die with mixed function capability, most companies have
found that combining (stacking) already proven die within
a single package structure more practical (see the die-stack
example in Figure 4-14).
The eight die configuration shown above includes two 1Gb
NAND Flash die, two 256Mb SDRAM, two 256Mb NOR
Flash die, one 128Mb UtRAM and one 64UtRAM die.
This is a very impressive application for die stacking and
the company, as the supplier of most or all die in the pack-
age, is meeting satisfactory yields of the finished package.
However, due to the variation in manufacturing processes
and differing yield potential of die level product from mul-
tiple sources, meeting overall package level cost goals for
some are not always attainable. To ensure uncased bare die
quality and reliability, some sort of electrical testing must
be provided on the bare die prior to package level assem-
bly. ASIC, simple logic circuits, some processors and lin-
ear circuits, at some point, tend to stabilize but testing is
the only way to guarantee quality and reliability. Combin-
ing logic and memory within a single package, for
example, poses a very real problem. The testing of these
two functions is substantially different and will further
compromise the level of confidence the user will have in its
use.
4.4.8 3D Folded Package Technology Memory die,
such as Flash and SRAM, have relatively high fabrication
yields. Damage can take place during assembly processing
and handling, but overall, the memory packaging process
and testing has a very high pass ratio. Flexible substrate
material enables the folding of several die into a single
FBGA package outline that is only slightly greater than the
largest die of the set. Figure 4-15 is a typical folded-flex
package application, combining three single memory func-
tion die into a single package outline.
4.4.9 Ball Stack, Package-on-Package Although not
limited to memory packaging, a key application is the
stacking of DDR-SDRAM chips, which enables OEMs and
memory module manufacturers to increase the density of
their memory boards by up to eight times the current den-
sity available today. The stacking of pretested FBGA pack-
aged die is an ideal application for memory. Testing, sort-
ing and grading of memory before joining will ensure that
the final component configuration furnishes its full perfor-
mance potential. Figure 4-16 shows an illustration of sev-
eral ball stack packages as one entire assembly.
Sequentially stacking one pretested FBGA package allows
the dramatic increase in component density and functional-
ity. As a practical example of a current application,
IPC-7095c-4-13
Figure 4-13 Single Package Die-Stack BGA
Figure 4-14 Custom Eight Die (Flip-Chip and Wire-Bond)
SiP Assembly
IPC-7095c-4-15
Figure 4-15 Folded Multiple-Die BGA Package
Figure 4-16 Eight Layer Ball Stack Package
January 2013 IPC-7095C
27
Copyright IPC-Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--`,,```,,,,````-`-`,,`,,`,`,,`---
consider the dynamics and potential for memory capacity
on the standard single sided SO-DIMM shown in Figure
4-17.
4.4.10 Folded and Stacked Packaging Combination
Because processor and ASIC wafer fabrication yield is not
as predictable as memory or less complex functions, pre-
testing of the individual die before package assembly is a
must. In addition, combining two very different yielding
products into the same finished package can be very risky.
To minimize risk, the idea of building up the multiple-die
package sequentially becomes highly attractive.
With the ultimate goal of combining several functions in a
single package footprint still achievable, assembling and
testing individual devices prior to final integration appears
ideal. The issues associated with compound yield and test
can be easily addressed by stacking separate packages. One
example would be to package and test the ASIC separately
from the memory functions in a two-section format typical
of that illustrated in Figure 4-18.
The lower and upper package assemblies with memory are
processed and tested prior to the folding and joining opera-
tion. Through a process of folding and surface mount
attachment, the two pretested sections become a single,
high yielding multiple-function component. Furthermore,
by providing a universal array pattern interface on the top-
side of the ASIC package, several variations of memory
functions can be soldered directly onto the base package.
4.4.11 Package-on-Package Solutions for packaging
multiple die elements in a single package outline have
evolved rapidly. Vertically stacking several semiconductor
die on a single semiconductor package substrate proved
efficient for a number of high density memory applications;
however, when mixing some of the newer multiple func-
tion processor and controller products with the more
mature high yielding memory die elements, the overall
package yield did not always meet expectation. A solution
that has proved to be more efficient is a package-on-
package (PoP) methodology designed to vertically combine
fully packaged and pre-tested discrete logic and memory
on separate array configured package substrate levels that
are designed to align and mount on top of one another
typical of the example shown in Figure 4-19.
Package stacking is proving to be ideal for a variety of
applications requiring greater functionality, high perfor-
mance and a smaller footprint: Stacking pre-tested package
sections enable a high degree of flexibility for designers,
allowing virtually any combination of memory to be com-
bined with any logic chip set. Combining discrete logic and
memory packages in this vertical configuration not only
saves space on the circuit board, it typically reduces pin-
count, simplifies system integration and enables enhanced
performance. A number of products are already taking
advantage of this multiple die packaging solution include
wireless handsets, digital cameras, portable game players
and GPS products.
4.4.12 Benefits of Multiple Die Packaging The primary
benefit in multiple die packaging is the dramatic increase in
component density. The size and weight of the product is
likely to be reduced and functionality enhanced. The func-
tional enhancement is achieved through the integration of
several device types. Other benefits include decreased cir-
cuit board complexity, improved product quality through
higher reliability and reduced risk in getting the product to
market. With multiple sourcing of already proven and
mature die, time to market and cost of ownership can be
minimized. The task of developing a multiple-die product
is not without some obstacles. Some of the key issues are:
• Managing multiple vendors
• Known good die test and burn-in methods
• Die and wafer availability
• Combining high and low yield devices
• Overall product quality and reliability
4.4.13 Solutions for Very Fine Pitch Array Packaging A
viable solution has been developed to providing finer pitch
and higher contact density for the single die and PoP pack-
age applications. Rather than the more traditional ball or
bump contact, this unique substrate interposer fabrication
process furnishes an array of solid copper contact features.

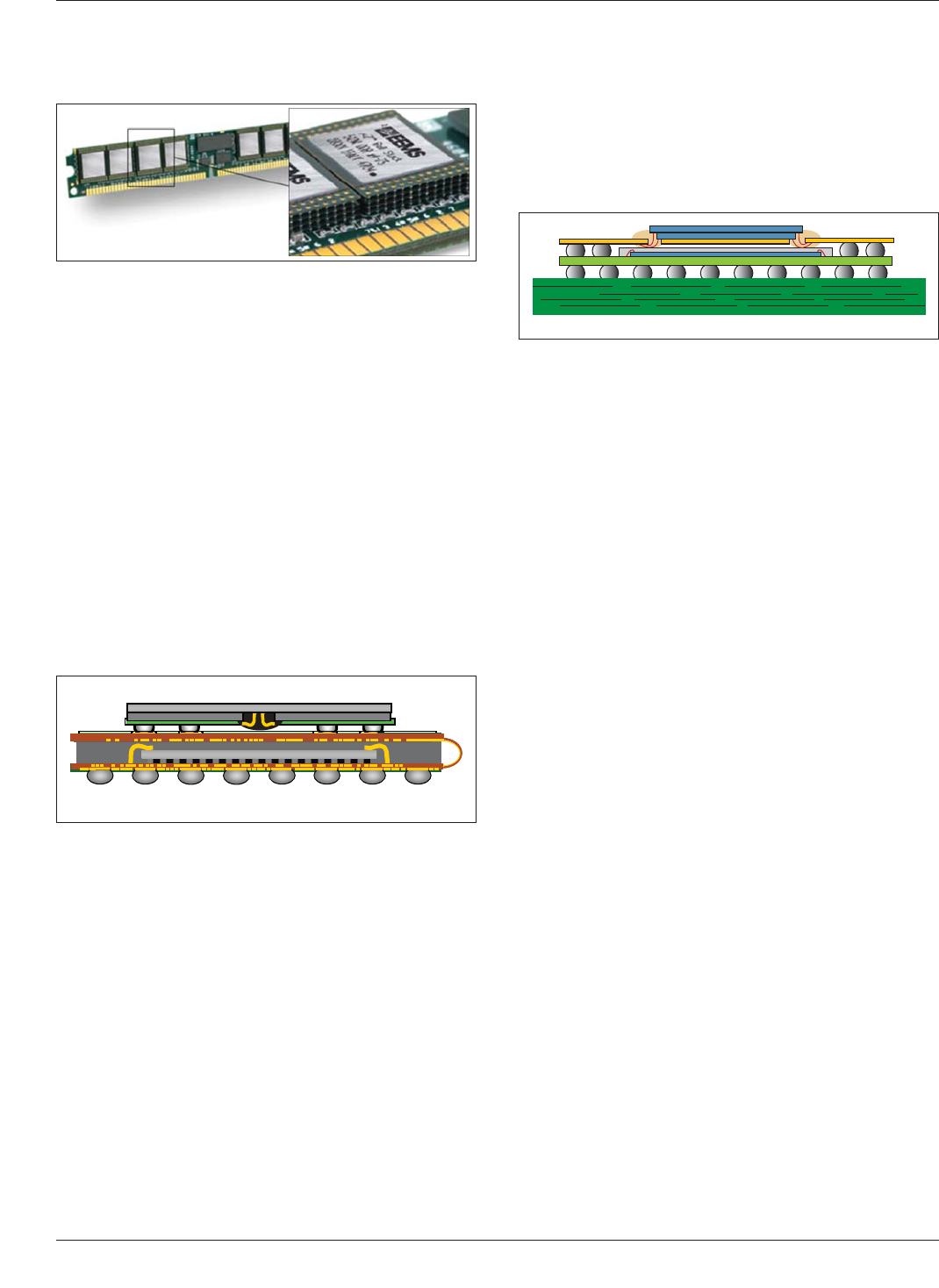

Figure 4-17 SO-DIMM Memory Card Assembly
IPC-7095c-4-18
Figure 4-18 Folded and Stacked Multiple Die BGA Pack-
age
IPC-7095c-4-19
Figure 4-19 Package-on-Package Assembly
PCB
PCB
