A-3
2. Start the "New" screen of the input format *1
Select the "Format" - "New" command.

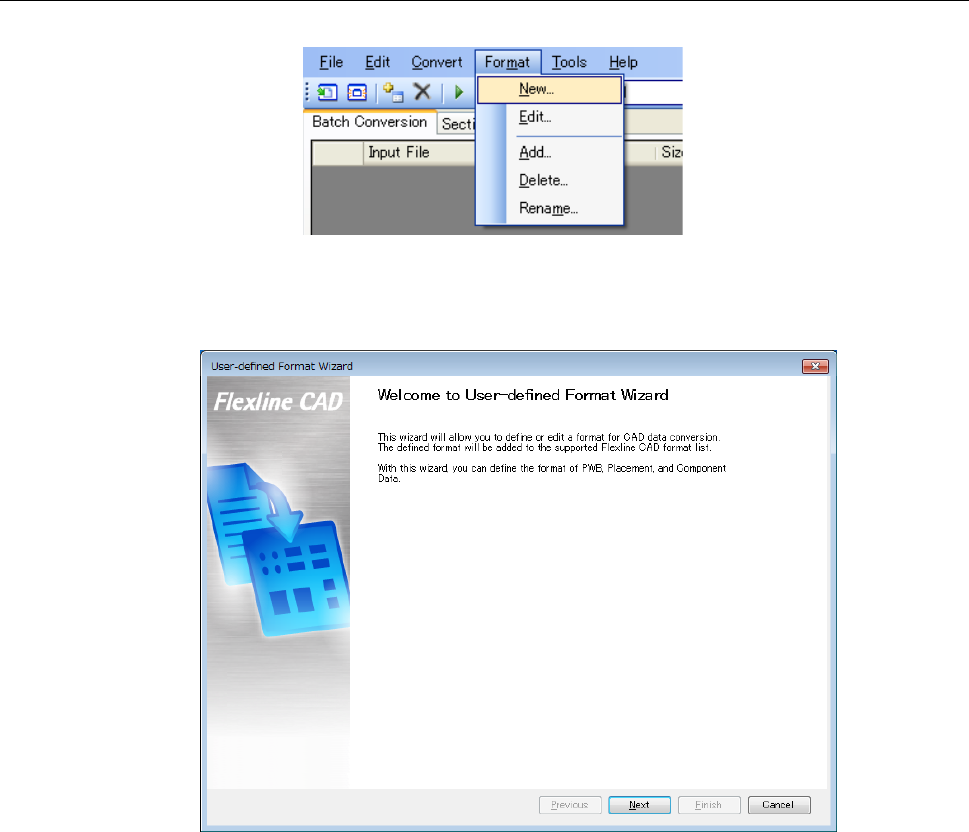

Figure A-5 Selecting "New"
First, the following screen is displayed. Click the "Next" button.
Figure A-6 Start screen for new format
*1 The screen displayed with the Version 5.10 or earlier is different from that with the Version
6.00 or later.
A-4
3. Global Setup Screen
Next, the "Global setup" screen is displayed. Now, set each item as follows:
● "Format Information"
"Format name" → Tutorial
"Extension" → txt
"Comment character" → !
"Default side" → Top side
"Max characters/line" → 2048
Leave the other items blank.
● "Section"
Set each of the "PWB," "Placement," and "Component" to 1.
● "Coordinate Transformation"
Specify the "No Transformation" for the "Coordinate Transformation."
● "PWB Scale/Unit" and "Placement Scale/Unit"
"Dimension" → Set the scale to 0.001 and the unit to mm.
"Rotation" → Set the scale to 1 and the unit to degrees.

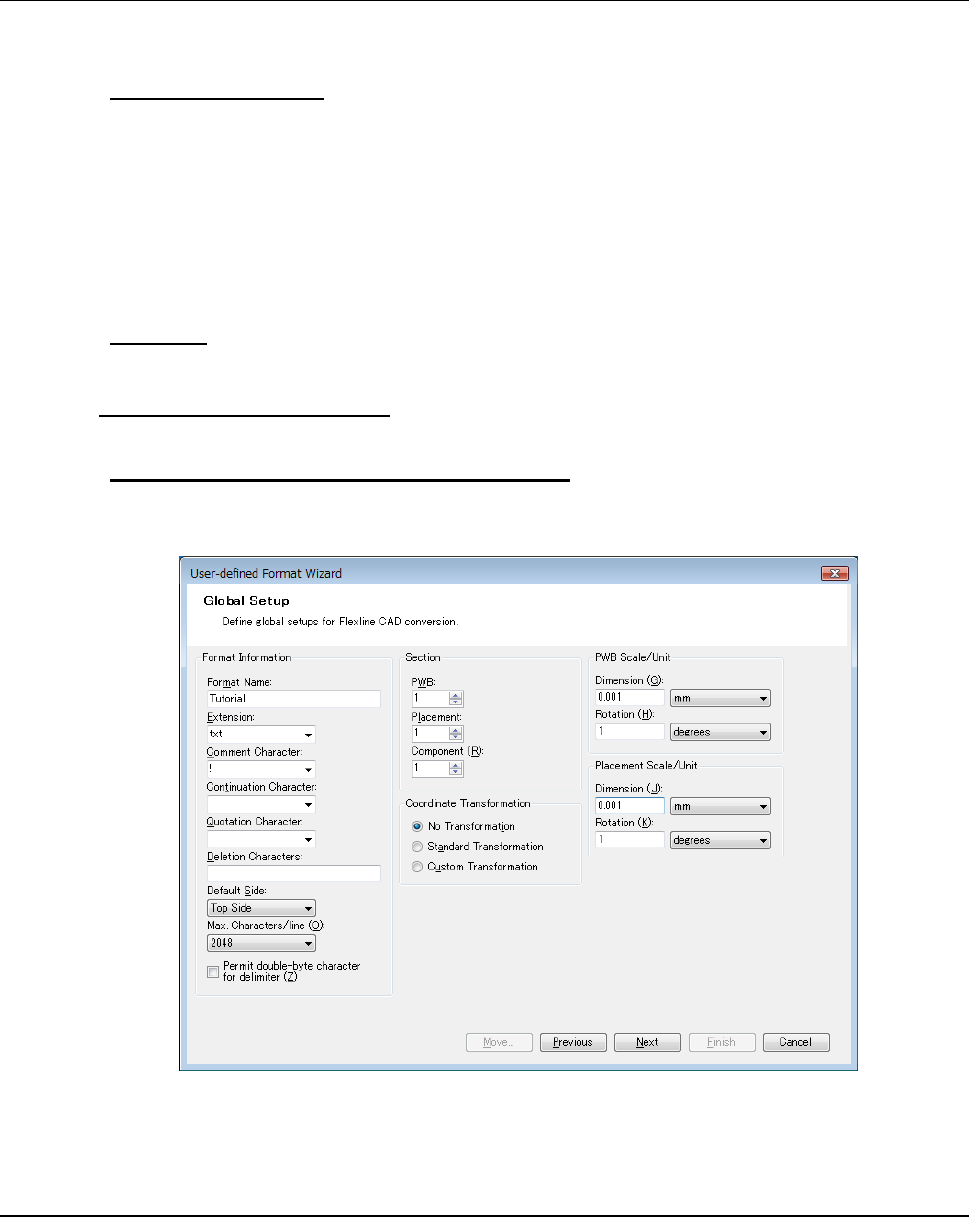

Figure A-7 Global Setup screen
When completing the setup, click the "Next" button.
4. Transformation Screen
When the "Standard Transformation" is specified in the "Coordinate Transformation," the
"Standard Transformation setting screen" is displayed. When the "Custom Transformation" is
specified, the "Custom Transformation setting (PWB) screen" is displayed. If the dimension
must be converted, perform a setting for it. (For details, refer to Section 7.3.) Now, no
transformation is required, the transformation screen is not displayed but the "Section definition
screen" is displayed.
A-5
5. PWB Section
Next, the screen to define PWB data (first, "Section definition screen") is displayed. Click the
"Refer" button to display the "Open" dialog box. Select Tutorial.txt provided in the {Flexline CAD
install folder}\SampleData\" folder.
5.1 PWB Section
● Section layout
In this example, PWB data is provided on line 1 to line 6 (actually line 2 to line 5.
Accordingly, select the "Line range" in the "Section layout" list and enter 1 in the "Start line"
and 6 in the "End line."
● Field layout
From the "Field layout list", select "Field."

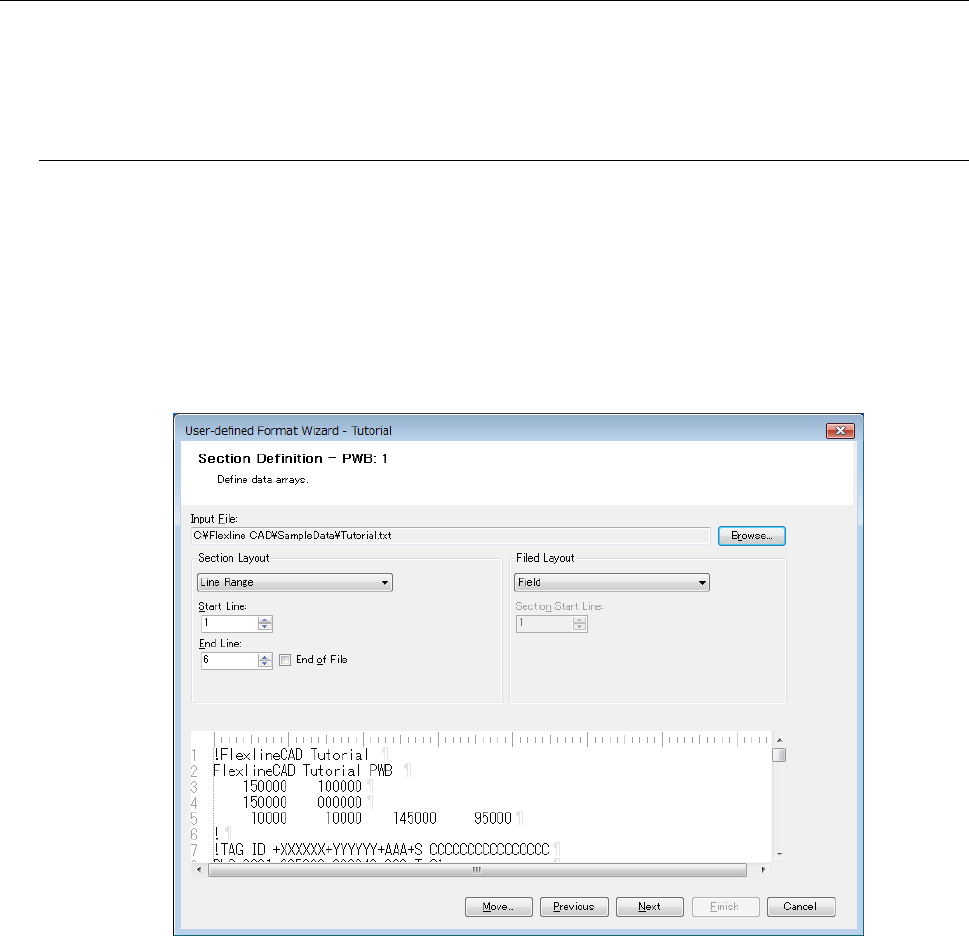

Figure A-8 Section definition screen (PWB)
After completing the setting, click the "Next" button.
