7.3 Coordinate transformation

In CAD data, the position and direction of the component to be placed on the PWB are

described. For this purpose, various coordinate systems are adopted. In the case of some CAD

data types, the unit of dimension is different. To process a new format, Flexline CAD converts

the numeric data of the data file into an amount measured on the JUKI standard direction and

standard system.

* In coordinate transformation of the "Global Setup" screen, select the transformation type.

7.3.1 Standard Transformation Settings screen

In coordinate transformation of the "Global Setup" screen, specify "Standard transformation"

and click the [Next] button. Then, the following screen is displayed. Click one image of "0º",

"90º", "180º", and "270º" and set Coordinate transformation.

Figure 7.3.1-1 Standard Transformation Settings

* The rotation angle specified here is used for conversion of PWB data and placement data

of both top side and bottom side.

7.3.2 Custom transformation settings (PWB) screen

In coordinate transformation of the "Global Setup" screen, specify "Custom transformation"

and click the [Next] button. Then, the following screen is displayed.

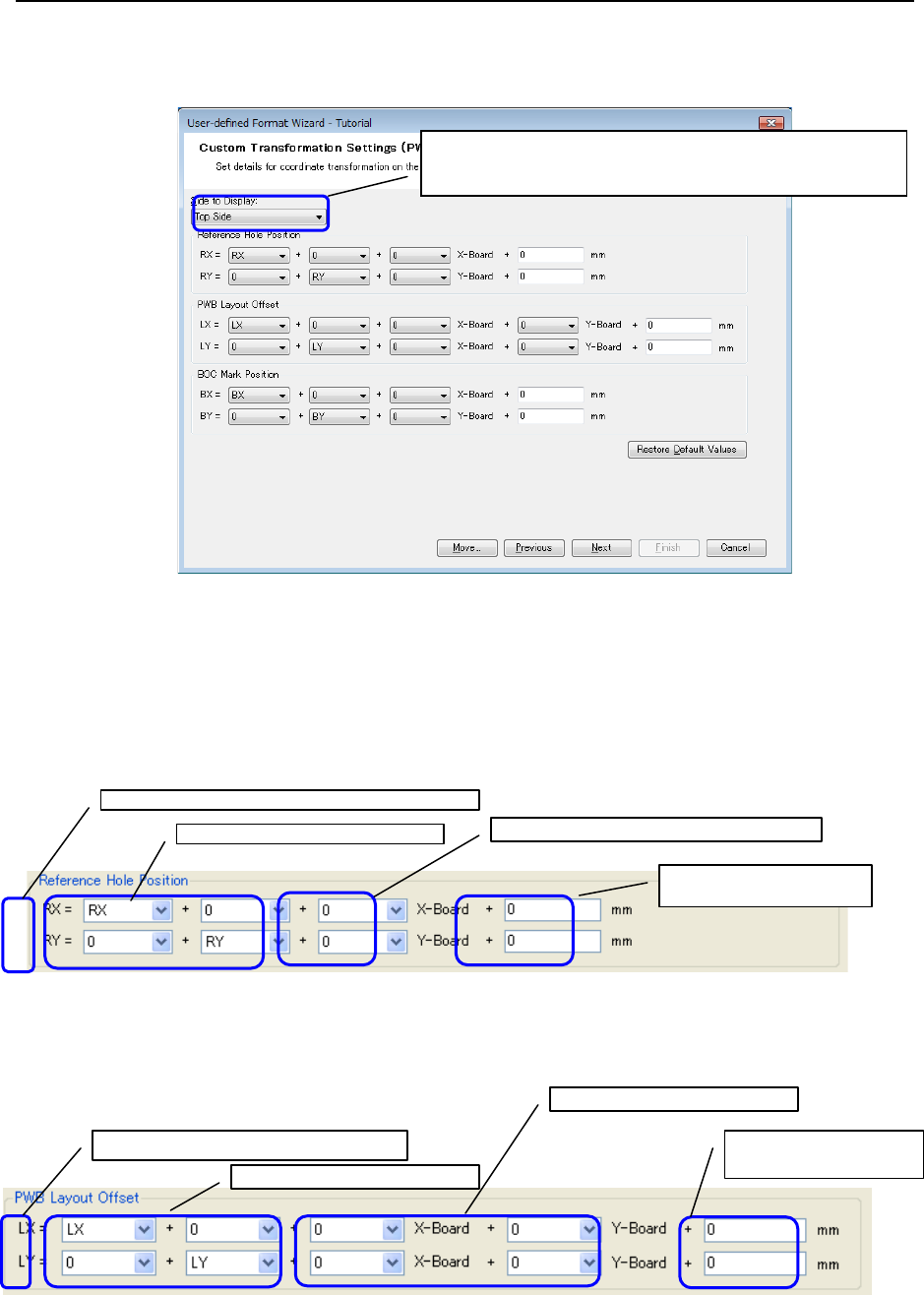

Figure 7.3.2-1 Custom Transformation Settings (PWB)

* Click the "Restore Default Values" button to set the default values for all the values displayed

on the screen.

 Reference hole position

An expression to convert the reference hole position data into the standard transformation

system is defined.

Figure 7.3.2-2 Reference hole position

 PWB layout offset

An expression to convert the PWB layout offset data into the standard coordinate system is

defined.

Figure 7.3.2-3 PWB Layout Offset

From the pull-down menu, select this item and set each

of the top side and bottom side.

Reference hole position after transformation

Reference hole position of CAD data

PWB dimension increment/decrement value

Other increment/decrement

value

PWB layout offset of CAD data

PWB increment/decrement value

PWB layout offset after transformation

Other

increment/decrement

 BOC mark position

An expression to convert the BOS mark position data into the standard coordinate system is

defined.

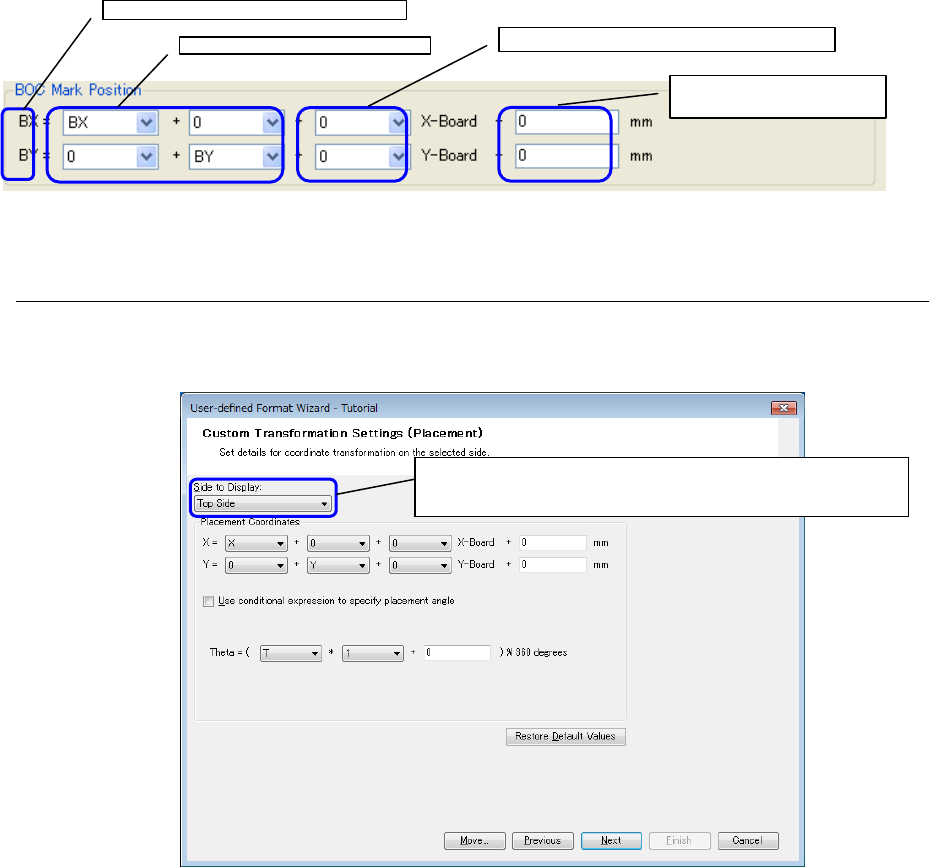

Figure 7.3.2-4 BOC Mark Position

7.3.3 Custom transformation settings (placement) screen

In coordinate transformation of the "Global Setup" screen, specify "Custom transformation" and

click the button. Then, the "Custom transformation settings (placement)"screen is displayed.

Figure 7.3.3-1 Custom Transformation Settings (Placement)

* Click the "Restore Default Values" button to set the default values for all the values

displayed on the screen.

BOC mark position after transformation

BOS mark position of CAD data

PWB dimension increment/decrement value

Other increment/decrement

value

From the pull-down menu, select this item and set each

of the top side and bottom side.
