80 9.1.3 Con versi on settin g screen Figur e 9.1.3 - 1 "Set Envi ronment s" - "Conversion" Operations f or conver sion W hen the "Show response message during conver sion" is checked off,…
79
(1) When "Suffix a side identifier string to a file name" is selected and the top identifier string is
T and the bottom identifier string is B
Top side: C:\FlexlineCAD\Prg\SampleDataT.iss
Bottom side: C:\FlexlineCAD\Prg\SampleDataB.iss
When "Save in an 8.3 format file name" is checked off
Top side: C:\FlexlineCAD\Prg\SampleDT.iss
Bottom side: C:\FlexlineCAD\Prg\SampleDB.iss
(2) "Save to a placement side folder each created under the output folder" is selected and the
top folder name is Top and the bottom folder name is Bottom
Top side: C:\FlexlineCAD\Prg\Top\SampleData.iss
Bottom side: C:\FlexlineCAD\Prg\Bottom\SampleData.iss
When "Save in an 8.3 format file name" is checked off
Top side: C:\FlexlineCAD\Prg\Top\SampleDa.iss
Bottom side: C:\FlexlineCAD\Prg\Bottom\SampleDa.iss
In this format, the fine name is
represented by 8 characters
and the extension is
represented by 3 characters.
In this format, the fine name is
represented by 8 characters
and the extension is
represented by 3 characters.
80

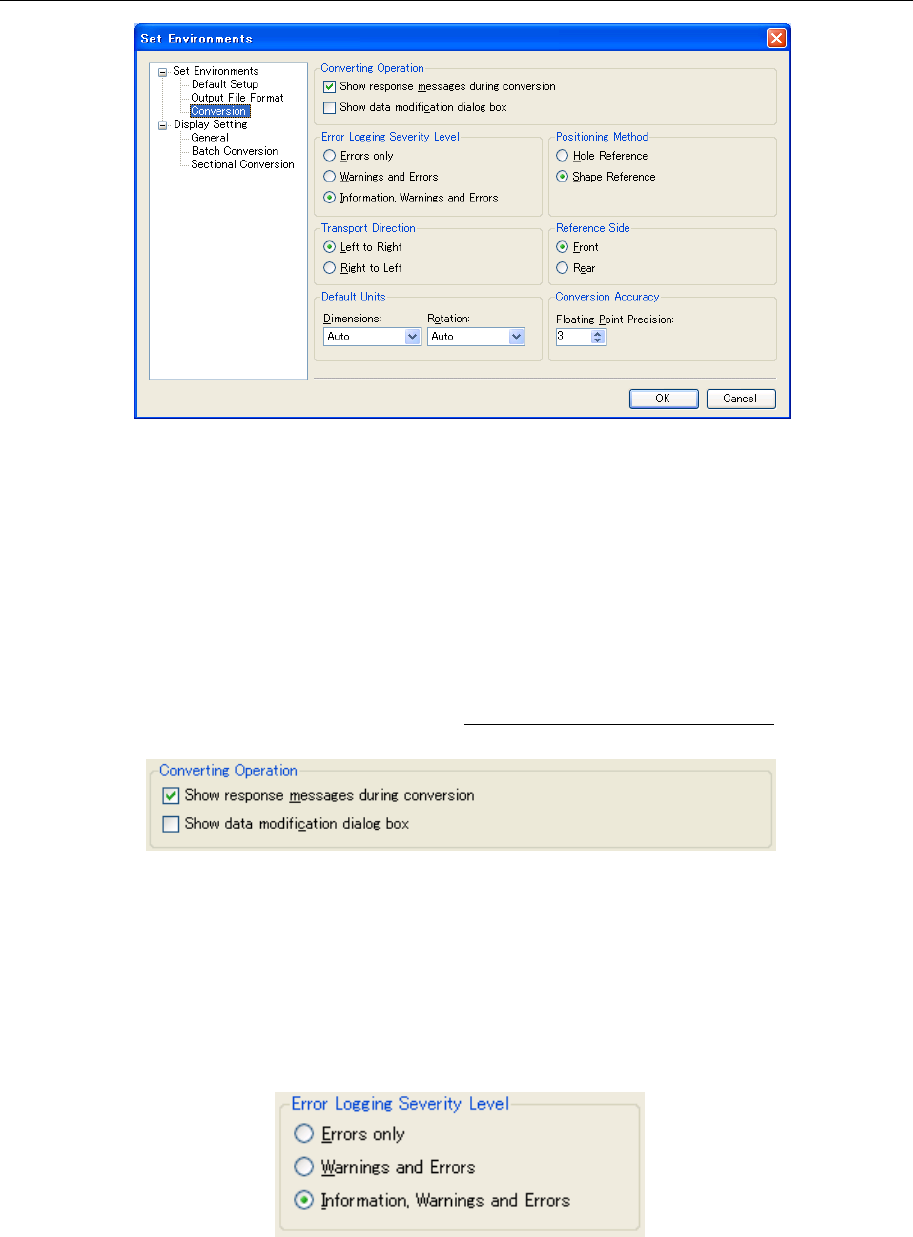

9.1.3 Conversion setting screen
Figure 9.1.3-1 "Set Environments" - "Conversion"
Operations for conversion
When the "Show response message during conversion" is checked off, unimportant
messages such as a file overwrite check message to be displayed during conversion and a
conversion completion message are not displayed.
Accordingly, if the "OK" button is clicked each time a message is displayed, file conversion
can be performed without any response from the user.
When the "Show data modification dialog box" is checked off, the data modification dialog
box is displayed during conversion.
For the data modification dialog box, refer to "8. Data modification dialog box."
Figure 9.1.3-2 Operations for Conversion
Error logging severity level
Set the level of the log to be output to the conversion log.
The conversion log is output to {Flexline CAD install folder}\Log\Convert.log.
Each time Flexline CAD is started, a new conversion log is created.
Even if any warning or information log is output, conversion is normally performed.
Figure 9.1.3-3 Error Logging Severity Level
81

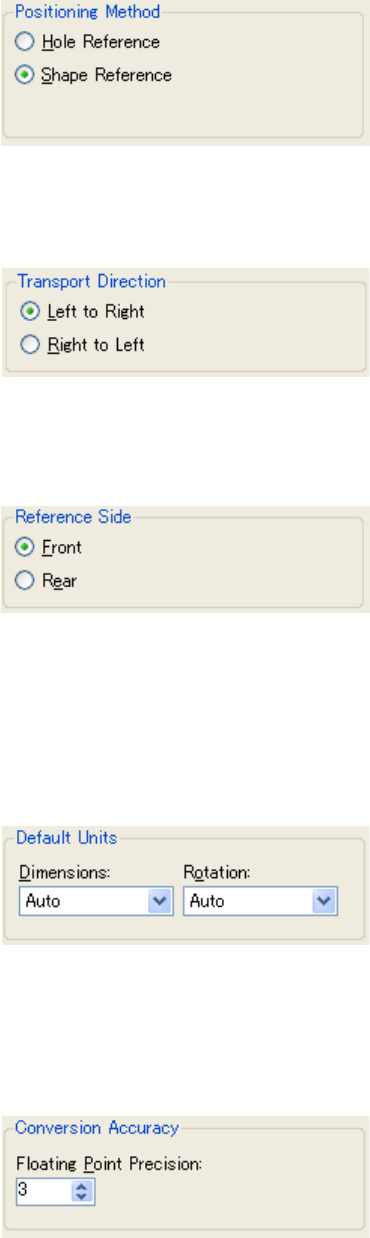

Positioning Method
The default positioning method for the output production program is set.
Figure 9.1.3-4 Positioning Method
Transport Direction
The default transport direction for the output production program is set.
Figure 9.1.3-5 Transport Direction
Reference Side
The default reference side for the output production program is set.
Figure 9.1.3-6 Reference Side
Default Units
The default units of the size and the rotation for the output production program are set.
When the format is newly created with the user definition wizard, the unit specified here is
displayed for the unit of reduced scale of the PWB and the placement. Moreover, the unit
specified here is selected for the unit of displaying the data change dialog box.
Figure 9.1.3-7 Default Units
Conversion Accuracy
The number of decimal point effective digits of the output production programs is set. The
number of decimal point effective digits specified here is displayed for the data displayed in
the data change dialog box.
Figure 9.1.3-8 Conversion Accuracy
