73

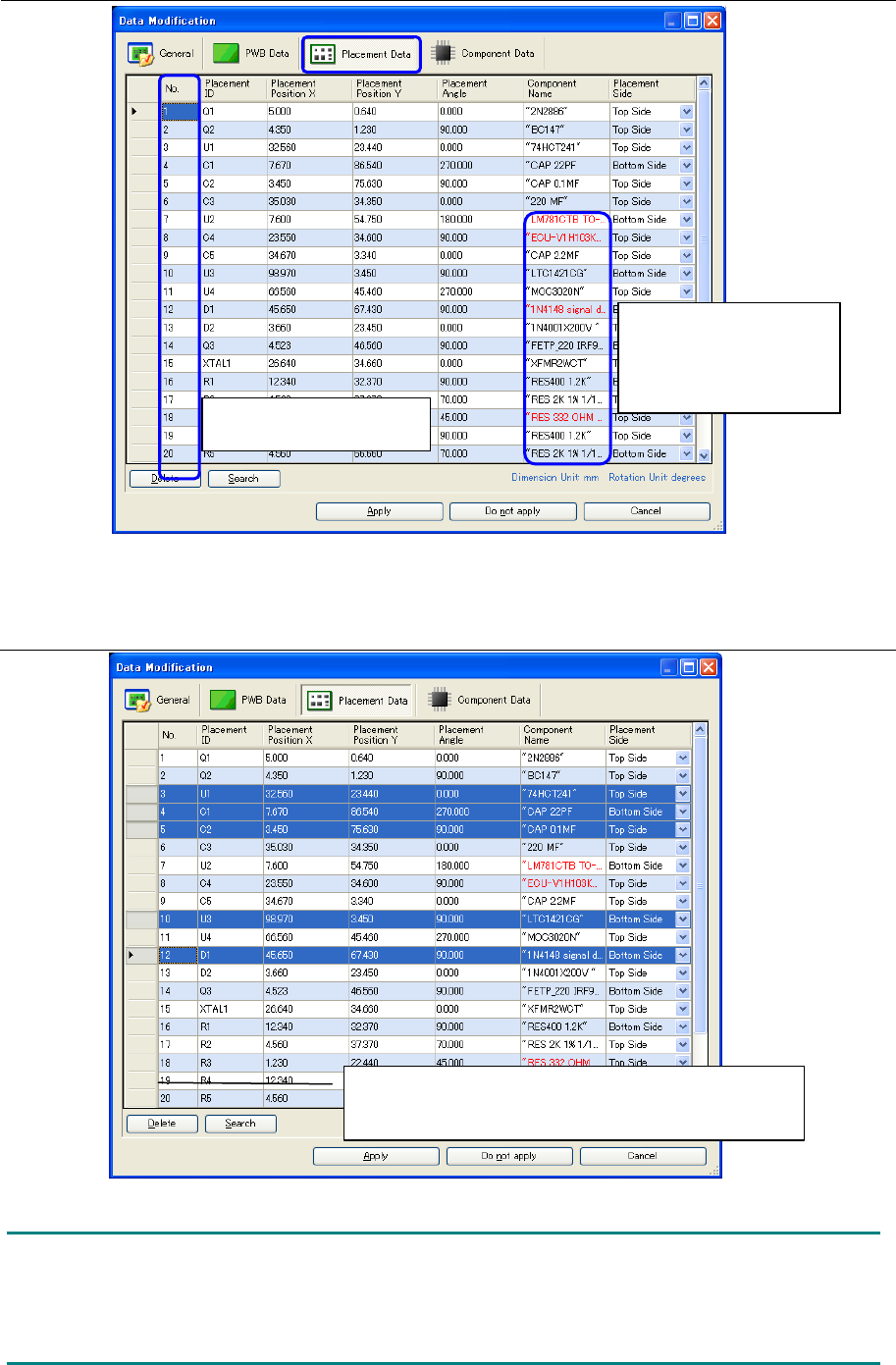

8.3 Placement data screen
Figure 8.3-1 Placement data
8.3.1 Deleting placement data
Figure 8.3.1-1 Deleting placement data
NOTE:
After deleting a placement record, the linked component data is not written into the output file
even if this data is not deleted. The reason is that only the component data provided in the
placement record is written into the output file.
The "No." column cannot
be edited.
When the component
name exceeds the
upper limit of the output
format, it is displayed in
red.
Click the line header pressing the Ctrl key or Shift key
to select multiple lines.
Then, click the "Delete" button.
74

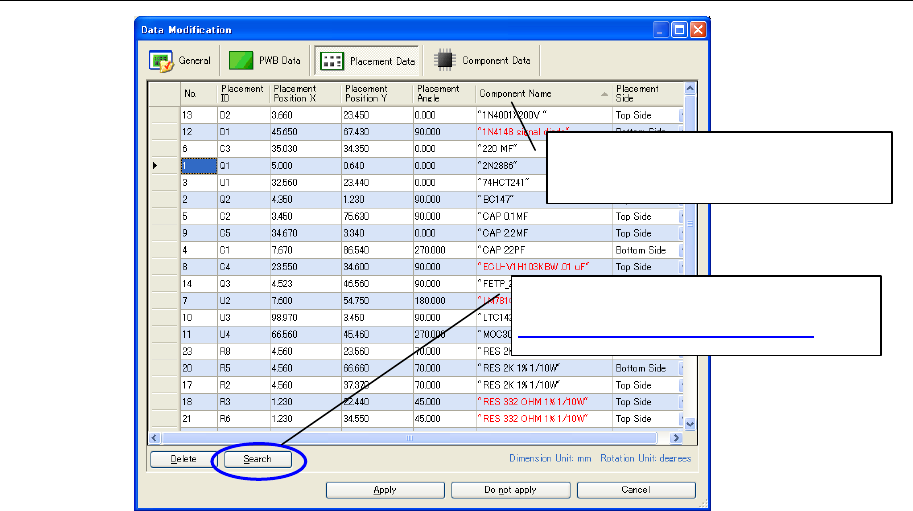

8.3.2 Sorting placement data
Figure 8.3.2-1 Sorting placement data
Click the column header to start sorting.
*
To make a display in the original order,
use the "No." column for sorting.
Searching placement data: For searching,
perform the same operations as those for
"8.2.5.2 Searching the circuit layout."
75

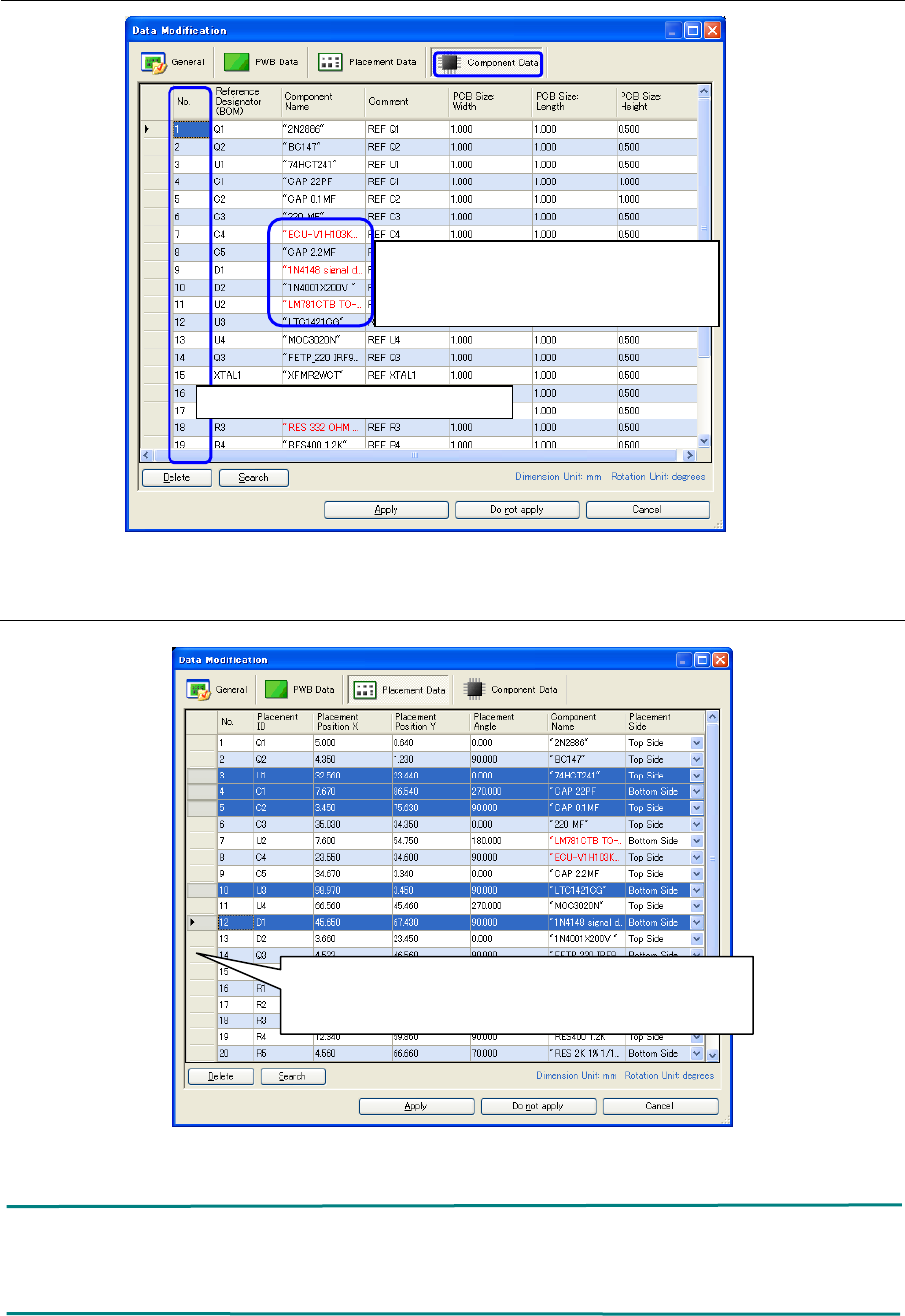

8.4 Component data screen
Figure 8.4-1 Component data
8.4.1 Deleting component data
Figure 8.4.1-1 Deleting component data
NOTE:
When the linked placement data is not deleted even if the component record is deleted, the
component data name is output to the output file but its contents are a null character string.
Click on the line header pressing the Ctrl key or Shift key
to select multiple lines.
Then, click the "Delete" button.
The "No. column" cannot be edited.
When the component name exceeds
the upper limit of the output format, this
name is displayed in red.
