A-8
5.3 Field transformation screen
In this example, there is no item requiring transformation.

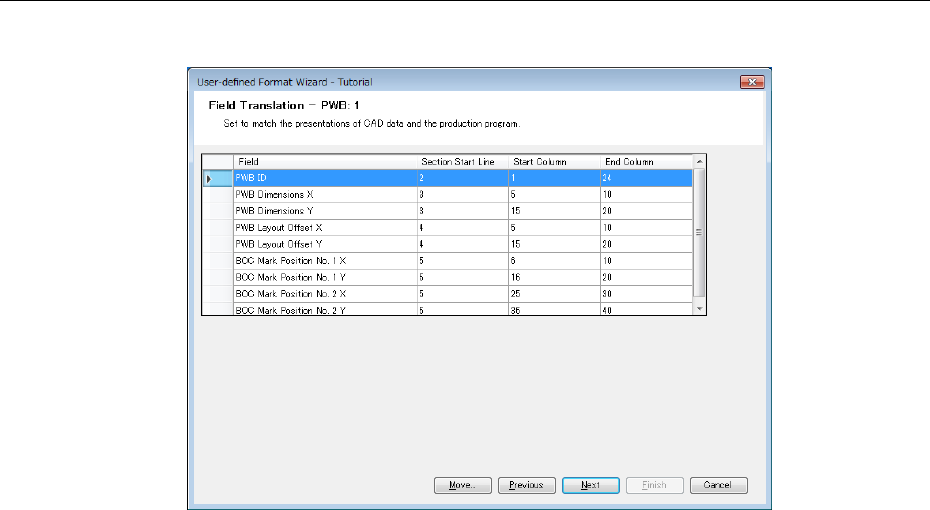

Figure A-11 PWB filed transformation screen
Click the "Next" button without performing any other operations.
* For the definition of multi-circuit non-matrix PWB, refer to the last part of Appendix A.
A-9
6. Placement Section
Next, the screen to define placement data is displayed.
6.1 Section definition screen
Move the scroll bar provided on the right side of "File display" downward by clicking it. Then, the
placement data screen is displayed.
● Section layout
From the "Section Layout" list, select "Tag" and enter "PLC" in "Tag Keyword."
(Because the characters of "PLC" exist in the line of placement data)
● Field layout
From the "Field Layout" list, select "Fixed Length."

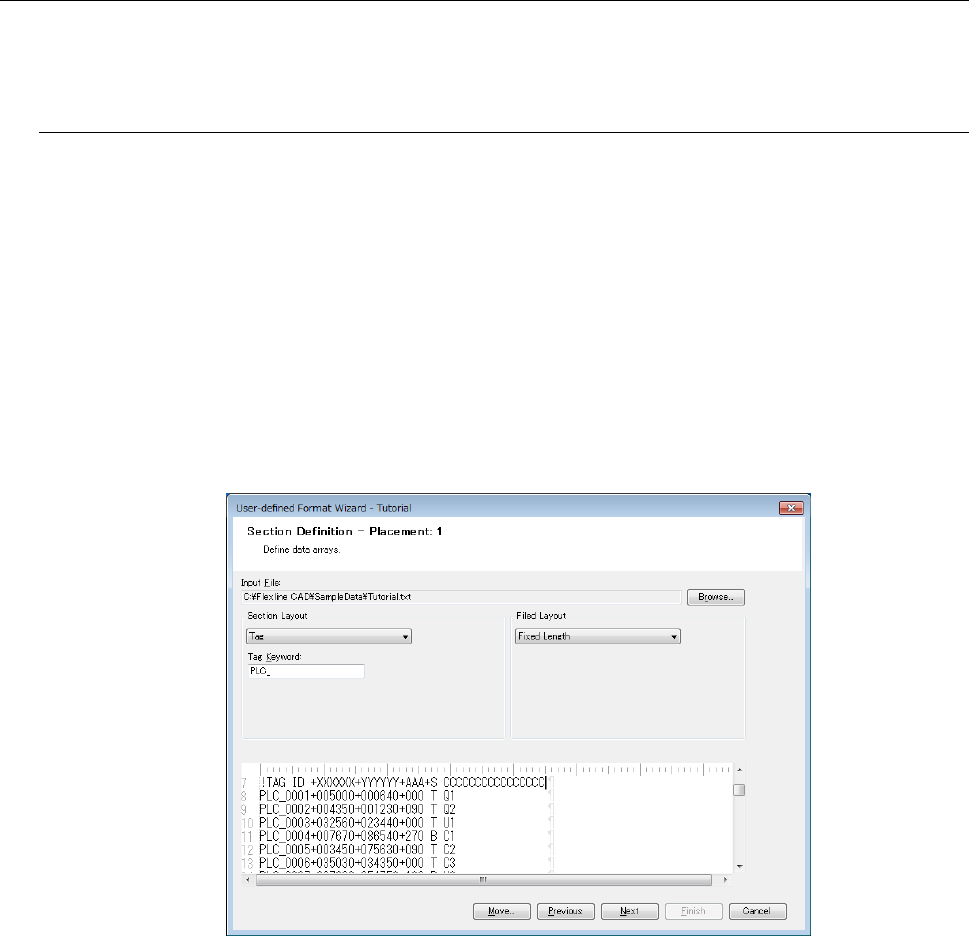

Figure A-12 Section Definition screen (placement)
Click the "Next" button.
A-10
6.2 Field definition screen
Next, specify the field position and perform definition.
6.2.1 Specifying the field position
At the position where each field is separated, enter a vertical line to divide fields.

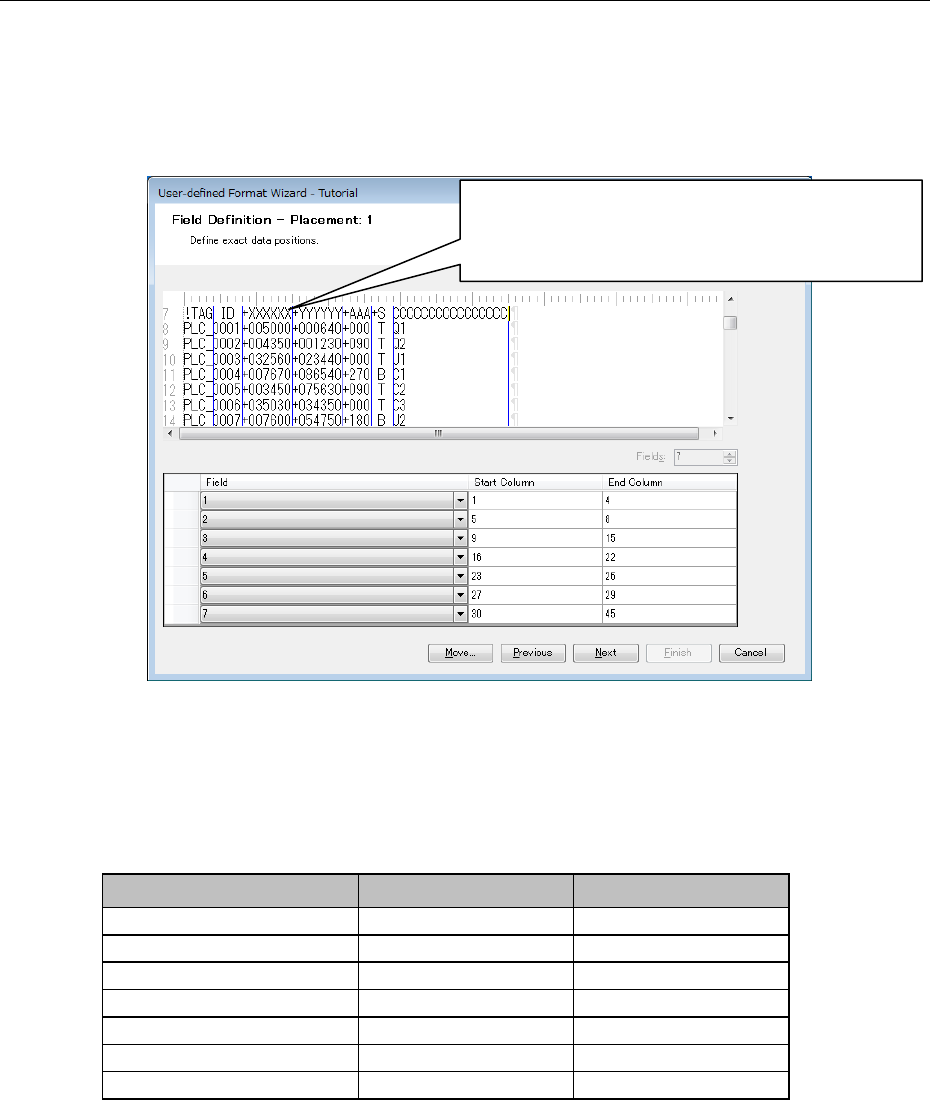

Figure A-13 Field definition screen (placement)
In the "Field" text box, a new created field is displayed.
In this example, there are seven fields as shown below:
Check whether the column numbers are correct or not.
Data
Start column
End column
!TAG
1
4
5
8
+XXXXXX
9
15
+YYYYYY
16
22
+AAA
23
26
+S
27
29
CCCCCCCCCCCCCCC
30
45
For entering a vertical line, click once on the screen
(on the column to be separated). If the vertical line is
wrongly entered, click on the vertical line once again
to delete it.
