Column to View
The columns checked in the list are displayed and non-checked columns are not displayed.
The "Input file" column must always be displayed. For this reason, the check mark is not
removed by clicking.
Fixed Column
On the batch conversion file table, a horizontal cross bar is displayed. Set the column that is
fixed by horizontal scrolling. At the default, no fixed column is set. Accordingly, all the columns
are scrolled by horizontal scrolling.

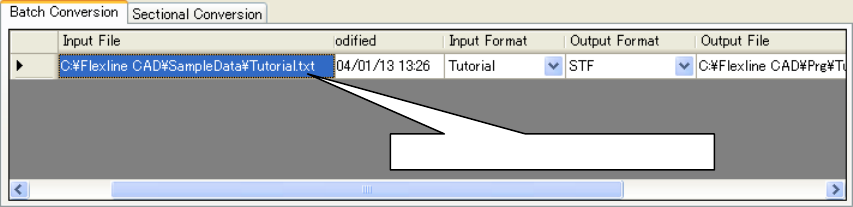

Figure 9.2.2-2 Batch Conversion file table (when the "Input column" is a fixed column)
The "Input file" column is not scrolled.
84
9.2.3 Sectional Conversion file table display setting screen

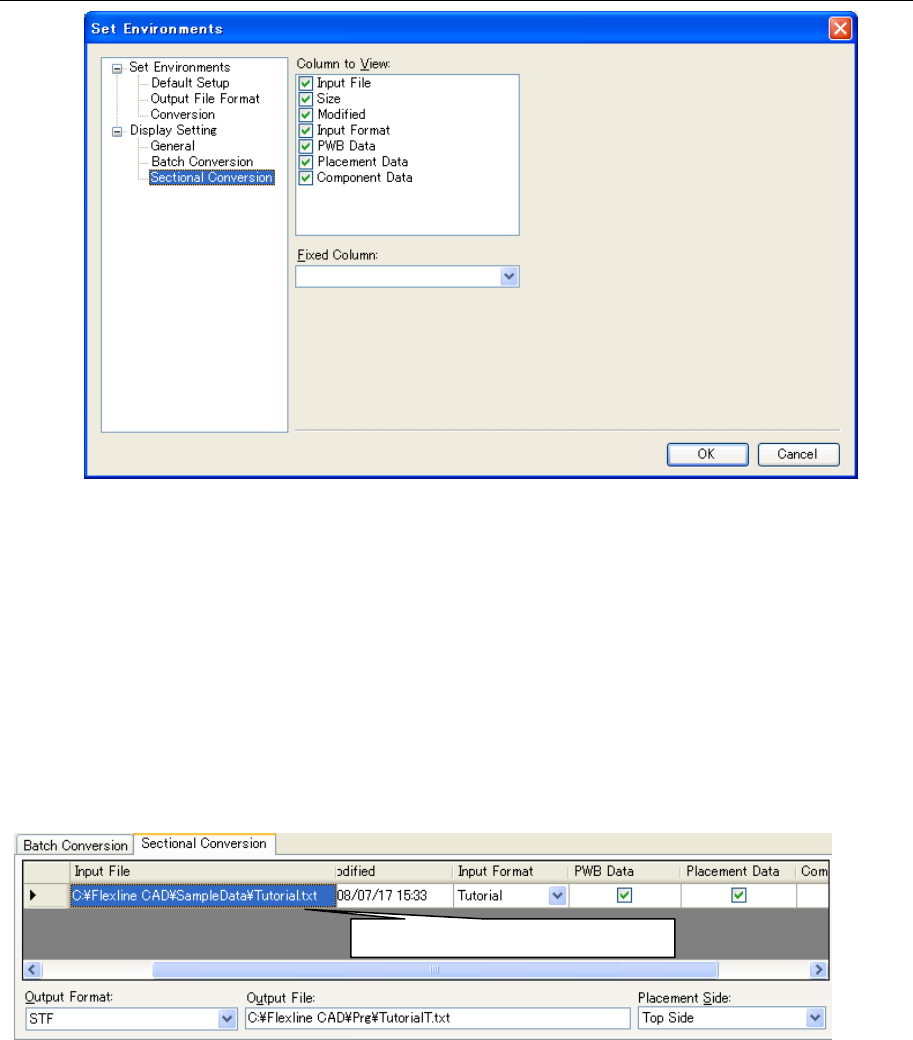

Figure 9.2.3-1 "Display Setting" - "Sectional Conversion"
Column to View
The columns checked in the list are displayed and non-checked columns are not displayed.
The "Input file" column must always be displayed. For this reason, the check mark is not
removed by clicking.
Fixed column
On the sectional conversion file table, a horizontal cross bar is displayed. Set the column
that is fixed by horizontal scrolling. At the default, no fixed column is set. Accordingly, all the
columns are scrolled by horizontal scrolling.
Figure 9.2.3-2 Sectional Conversion file table (when the "Input column" is a fixed
column)
The "Input file" column is not scrolled.
85
Chapter 10 Flexline CAD setting table
10.1 Standard format
The standard formats prepared at installing Flexline CAD are listed below:
Table 10-1 Standard formats
Format name
Explanation
Input format
Output format
STF
Simple text format type (Refer to Appendix C.)
○
○
730 4.2
KE730 Ver 4.2 type
○
○
740 4.2
KE740 Ver4.2 type
○
○
750 1.2
KE750 Ver1.2 type
○
○
750 1.25
KE750 Ver1.25 type
○ ○
750 1.35
KE750 Ver1.35 type
○
○
760 1.2
KE760 Ver1.2 type
○
○
760 1.25
KE760 Ver1.25 type
○
○
760 1.35
KE760 Ver1.35 type
○
○
2010 1.10
KE2010 Ver1.10 type
○
○
2010 1.11
KE2010 Ver1.11 type
○
○
2010 1.12
KE2010 Ver1.12 type
○
○
2010 1.20
KE2010 Ver1.20 type
○
○
2010 1.30
KE2010 Ver1.30 type
○
○
2010 1.40
KE2010 Ver1.40 type
○
○
2010 2.00
KE2010 Ver2.00 type
○
○
2020 1.10
KE2020 Ver1.10 type
○
○
2020 1.11
KE2020 Ver1.11 type
○
○
2020 1.12
KE2020 Ver1.12 type
○
○
2020 1.20
KE2020 Ver1.20 type
○
○
2020 1.30
KE2020 Ver1.30 type
○
○
2020 1.40
KE2020 Ver1.40 type
○
○
2020 2.00
KE2020 Ver2.00 type
○
○
2030 1.10
KE2030 Ver1.10 type
○
○
2030 1.11
KE2030 Ver1.11 type
○
○
2030 1.12
KE2030 Ver1.12 type
○
○
2030 1.20
KE2030 Ver1.20 type
○
○
2030 1.30
KE2030 Ver1.30 type
○
○
2030 1.40
KE2030 Ver1.40 type
○
○
2030 2.00
KE2030 Ver2.00 type
○ ○
2040 1.10
KE2040 Ver1.10 type
○
○
2040 1.11
KE2040 Ver1.11 type
○
○
2040 1.12
KE2040 Ver1.12 type
○
○
2040 1.20
KE2040 Ver1.20 type
○
○
2040 1.30
KE2040 Ver1.30 type
○
○
2040 1.40
KE2040 Ver1.40 type
○
○
2040 2.00
KE2040 Ver2.00 type
○
○
2050 1.XX
KE2050 Ver1.XX type
○
○
2050R 1.XX
KE2050R Ver1.XX type
○
○
2055R 1.XX
KE2055R Ver1.XX type
○
○
2060 1.XX
KE2060 Ver1.XX type
○
○
2060R 1.XX
KE2060R Ver1.XX type
○
○
2070 1.00
KE2070 Ver1.00 type
○
○
2070 1.XX
KE2070 Ver1.XX type
○ ○
2070 2.1X
KE2070 Ver2.1X type
○ ○
2080 1.00
KE2080 Ver1.00 type
○
○
2080 1.XX
KE2080 Ver1.XX type
○
○
2080 2.1X
KE2080 Ver2.1X type
○
○
2080R 2.1X
KE2080R Ver2.1X type *1
○ ○
3020 1.00
KE3020 Ver1.00 type *1
○ ○
3020R 1.00
KE3020R Ver1.00 type *1
○ ○
3020V 1.00
KE3020V Ver1.00 type *1
○ ○
3020VR 1.00
KE3020VR Ver1.00 type *1
○ ○
