7.4.3.6. Field
When the field has no regularity, this field is used. It can be selected only when the "Section" or
"Line range" is selected in the section layout.
Select the "Field" from the pull-down menu to display the section start line input screen.
◊ When the "Section" is selected in the section layout, the section start line can be set. Enter
the first line No. from the beginning of the file on the character entered as the section start
keyword. (If another line No. is entered, conversion cannot be performed correctly.)
Figure 7.4.3.3-1 Field Layout (Field)
* For the field definition screen when the "Field" is selected, refer to "7.5.3 Field."
7.4.4 File display
The contents of file are displayed so that the filed position can be known. However, the contents
of file cannot be changed.
* The displayed contents of file can be scrolled by using the vertical/horizontal cross bar.
Figure 7.4.4-1 File display
• When selecting the displayed bottom line provided at the file display, the text is shifted
upward if the column is in contact with the bottom frame.
• When selecting the displayed rightmost column, the text is shifted to the left if the column is
in contact with the right frame.
• When the "Add" button is pressed after selecting the field, a correct line/column No. is added
to the data field table.
53
7.5 Field definition screen
The position of each data is accurately defined. The field position specifying method varies
depending on the field layout ("Fixed length," "Delimited," and "Field").
For the table of field names corresponding to the PWB section, placement section, and
component section, refer to "10.3 Field."
7.5.1 Fixed length
This is a defining method for the case where the length of each item of the field is fixed. The
field is defined by distinguishing each item by column (vertical column).
◊ There are some unnecessary field data and name assignment is not necessary for these
data. In this case, leave the field as a blank.
◊ To delete the set field, click the vertical line corresponding to the field to be deleted. The
vertical line and field line are deleted.
The set vertical line has no effect on other sections.
Figure 7.5.1-1 Field Definition (Fixed Length)
1. Click on the column to be separated to set the vertical line.
To delete the vertical line, click again on the vertical line.
*
The vertical line cannot be set on the blank area beyond
the rightmost column that has a character.
Data field area
2. After performing the setting of 1, the field line is
added automatically. Select the target field name
to be defined.
54
7.5.2 Delimited
This is a defining method for the case where the each item of the field is separated by delimiter.

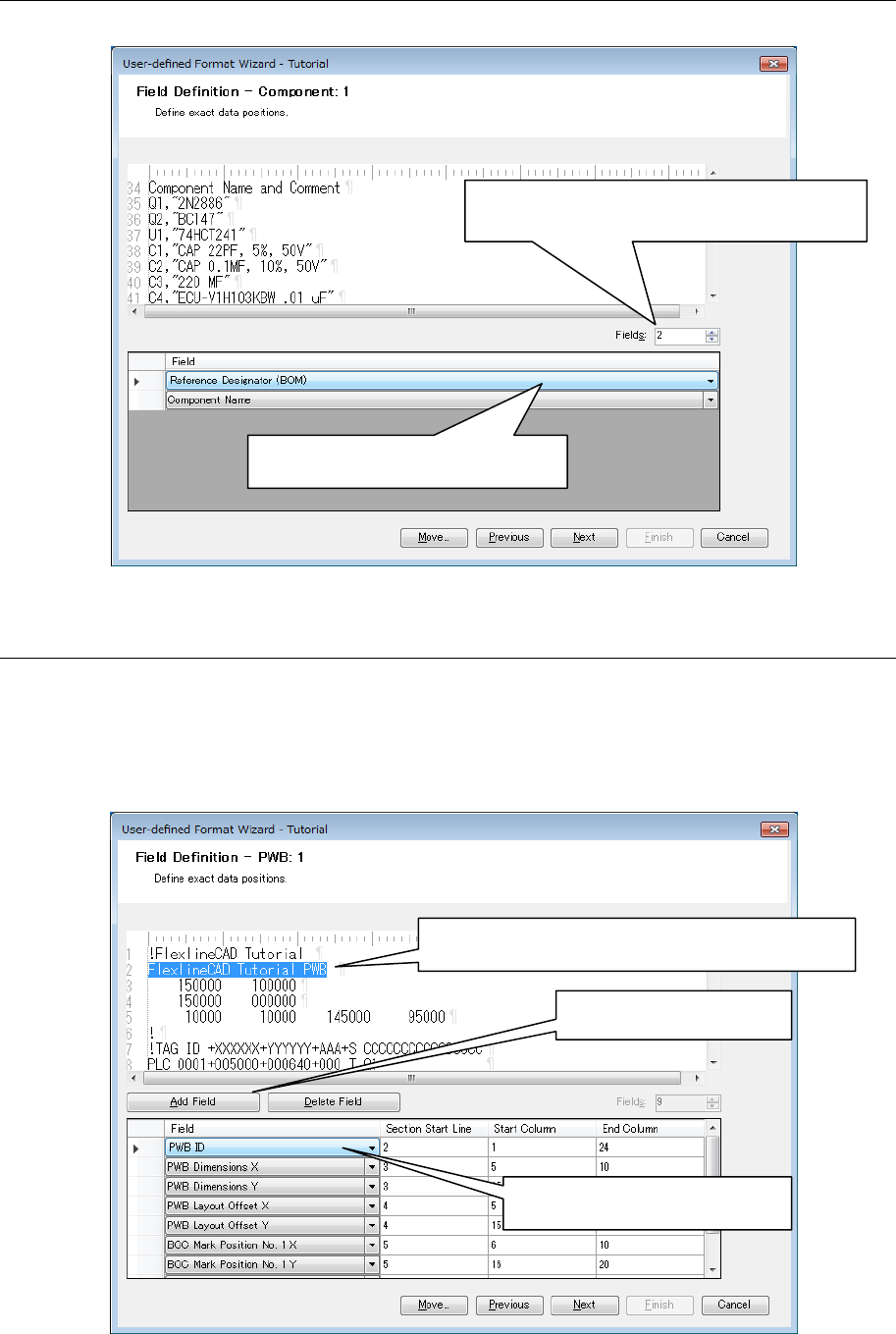

Figure 7.5.2-1 Field definition (delimiter)
7.5.3 Field
This is a defining method when the data has no regularity. Each item of data can be defined
optionally.
◊ On the section start line, the number of lines counted from the section start line set at the
field layout is displayed.
Figure 7.5.3-1 Field definition (field)
1. Enter the number of fields to be defined in
Fields and press the "Enter" key.
2. Select the target field name to be
defined.
1. Select the character string to be defined as the
field by mouse.
2. Click the "Add field"
button.
3. Select the target field name to
be defined.
