C-20
coordinates pointed by the mouse and the unit of the coordinates. The unit of the coordinates is
the one specified last in the Gerber file; however, if the Gerber file does not specify the unit, a
unit specified on the “Gerber File View” dialog box is used.
Clicking on the image of the board allows you to add a placement point.
A red mark is placed on the clicked point, and the coordinates are added to the list
automatically. Also, you can type a value of the coordinate directly in the list, which is editable.
Up to 6 digits can be entered for the integer portion of the value. The number of the digits for the
fractional portion depends on the setting of the “Gerber File Format” dialog box; the extra digits
are automatically discarded.
To delete a placement point, specify the row, and then select the “Edit” – “Delete” command
from the menus or press the [Delete] key.
To specify all rows, select the “Edit” – “Select All” command from the menus or press the [Ctrl]
key and the [A] key at the same time.
To enlarge the image of the board, select the “View” – “Zoom In” command from the menus or
press the [Ctrl] key and the [+] key at the same time.
To reduce the image of the board, select the “View” – “Zoom Out” command from the menus or
press the [Ctrl] key and the [-] key at the same time.
Press the “OK” button to continue the conversion using the selected placement data.
D-1
Appendix D Glossary and Troubleshooting
♦
Glossary for Flexline CAD
Term Meaning
Protect module A device that enables the Flexline CAD systems on the PC. It is to be attached to
the USB or parallel port on the PC that has installed Flexline CAD.
Batch conversion A mode that converts single or multiple CAD data files simultaneously. For one
CAD data, one production program is created.
Sectional conversion A mode that converts single or multiple CAD data files into one production
program.
Input file A CAD data file to be converted with the Flexline CAD systems.
Output file A production program file that was converted with the Flexline CAD systems.
Format A file that defines the structure of CAD data.
Standard format Ready-made format that is installed with the Flexline CAD system.
The user cannot delete the standard from the system or change the name.
User-defined format Format that is defined by the user using the user-defined wizard. The user can
delete it from the system or change the name.
BOM Abbreviation for Bill of Material. Component information which is peculiar to the
manufacture.
E-1
Appendix E Patch Type Installation Tool
What is the patch type installation tool?
This tool allows you to install the software to which some minor changes have been made in
the current Flexline CAD software.
1. Operations
1.1 Start-up and termination
How to start up: Double-click PatchInstaller.exe located immediately after the Flexline CAD
installation folder.
* Before starting the tool, close all application programs related to Flexline CAD except for the
language switching tool.
* This tool does not support real-time language switching performed with the language
switching tool. When you switch the language to the desired one before starting up
PatchInstaller, the tool starts up in the desired language.
How to terminate: Click the “Cancel” button or the close (
) button.
1.2 Patch type installation screen
Execute the patch type installation process on the following wizard screen.
Select the desired installation file from the “Browse” button to perform the installation task.

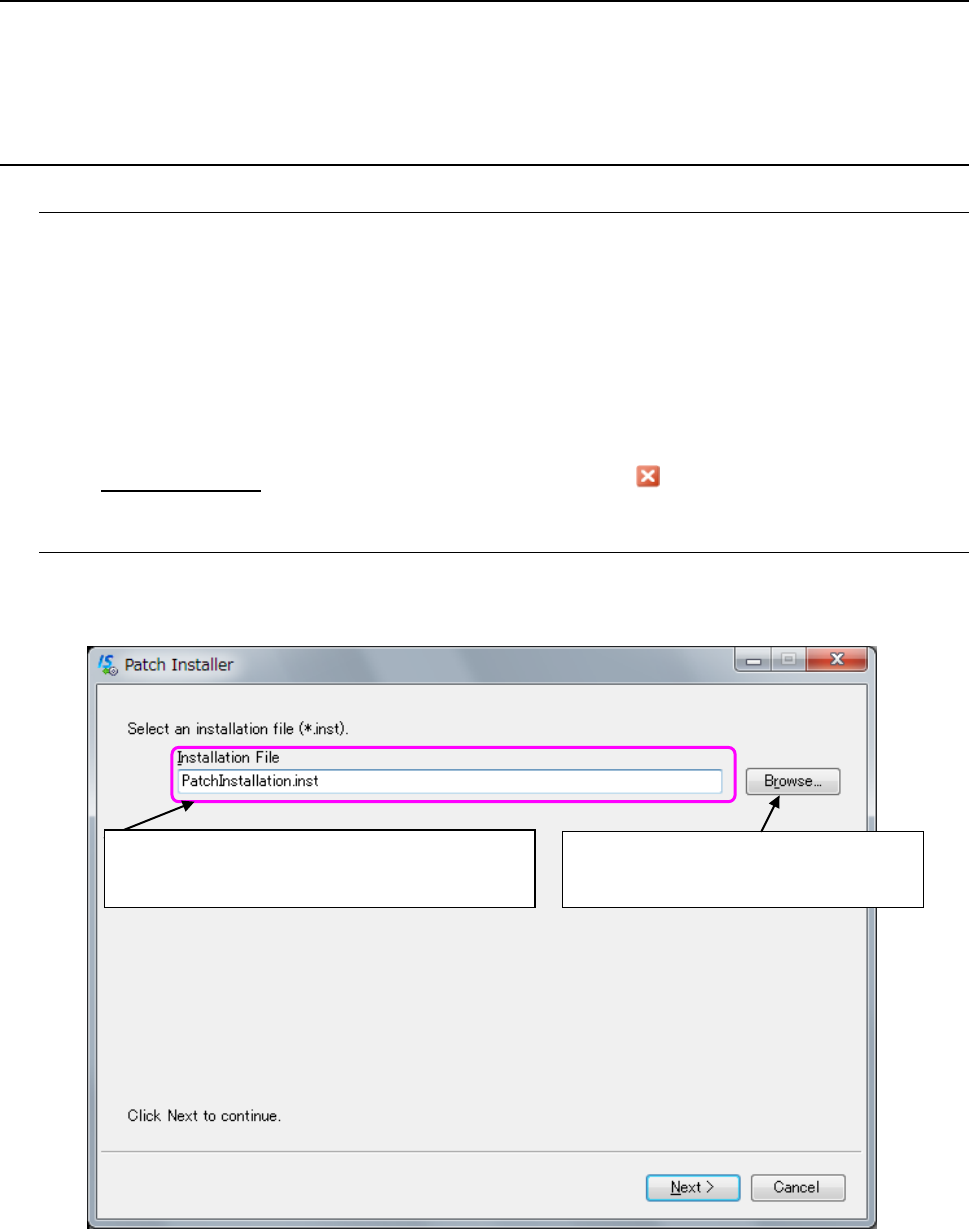

Figure E-1 Screen for selecting an installation file
Browse: Starts up the dialog box for
selecting a file.
The name of the selected installation file is
displayed here.
