2-90
2
Operation
3.10 Charts
[Charts] button opens "ENVIRONMENTAL CONDITIONS" screen which shows the temperature and the humid-
ity inside/outside of the machine.
3.10.1 ENVIRONMENTAL CONDITIONS screen
"ENVIRONMENTAL CONDITIONS" screen
[Save] button
[Charts] button
Last Measurement
Machine Chart setting Charts
242B2-KMS-00
Temperature and humidity charts
The temperature chart is on left, and the humidity chart is on right.Green line is for inside the machine, gray line is for
outside.
Machine
If there are multiple YST15s, it is possible to switch the machine shown here.
Chart setting
It is possible to show charts in the specified period.
Input the start time in left and the end time in right, then press [Chart] button to show the charts for the duration.
Input a packaging number into "Packaging" column, and press [Chart], then the chart shows about the packaging from
loaded to unloaded.
Last Measurement
It shows the time when the temperature and the humidity are monitored last.
[Save] button
This button captures the present screen and saves it in jpg format. Specify the file name and the folder to be saved.
Captured screen
242B3-KMS-00
2-91
2
Operation
3.11 DELIVERY ORDERS
YST15 has a function to manage remaining item quantities and traceability.
The function procedure is like the following.
1. Register packagings
→
2. Register BOMs
→
3. Create Job orders
→
4. Unload packagings
→
5.Close job orders
In some case, an external system like IT-system manages remaining item quantities and traceability.
In such a case, the machine doesn't manage remaining item quantities and traceability, but only unloads
packagings as a "SLAVE" machine. This function is called "Delivery order".
"DELIVERY ORDERS" screen lists the history of the delivery orders and other extractions.
n
NOTE
It is not required to create BOMs and job orders if packagings are unloaded by delivery orders.
It is only required to register items and packagings for unloading packagings.
3.11.1 DELIVERY ORDERS screen

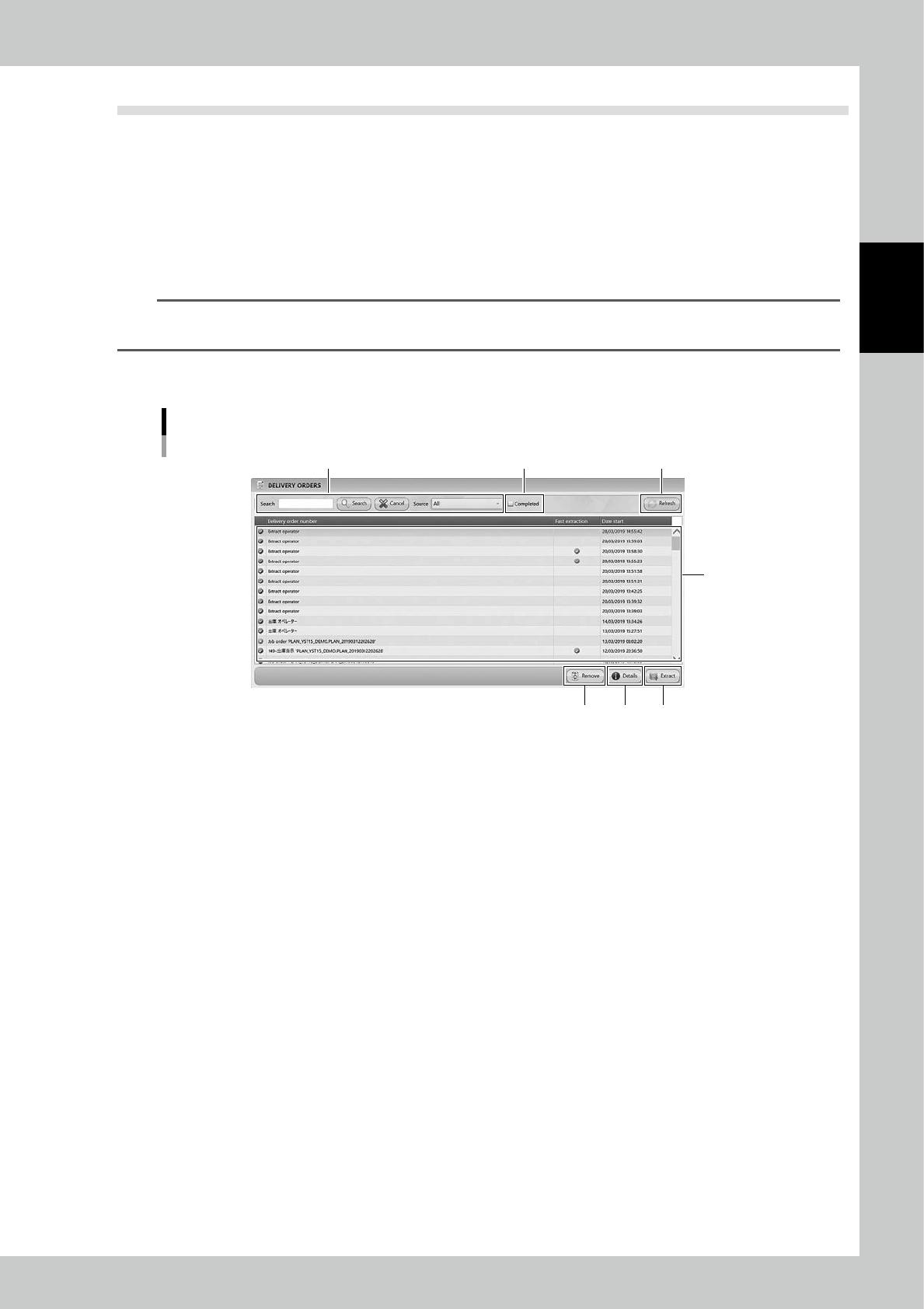

"DELIVERY ORDERS" screen
1
3 2
5 6 7
4
242C6-KMS-10
1. Delivery Order list
Delivery orders are listed. Normally, unclosed delivery orders are listed.
2. "Completed" tick box
Ticking it shows delivery orders which are unclosed as well as closed.
3. "Search" bar and "Source" pull-down
Able to search for now and closed delivery orders or other extractions.
Pressing [Search] button with words starts searching related extractions.
Pressing [Cancel] button stop searching.
On the "Source" pull-down, "external software" "Pick & Place" "Job order" "Extraction by operator", view each extraction
history.
4. [Refresh] button
Able to update the delivery orders list.
5. [Remove] button
Able to delete delivery orders by selecting the delivery orders and pressing this button.
2-92
2
Operation
6. [Detail] button
Able to display the detail of a delivery order by selecting the delivery order and pressing this button.

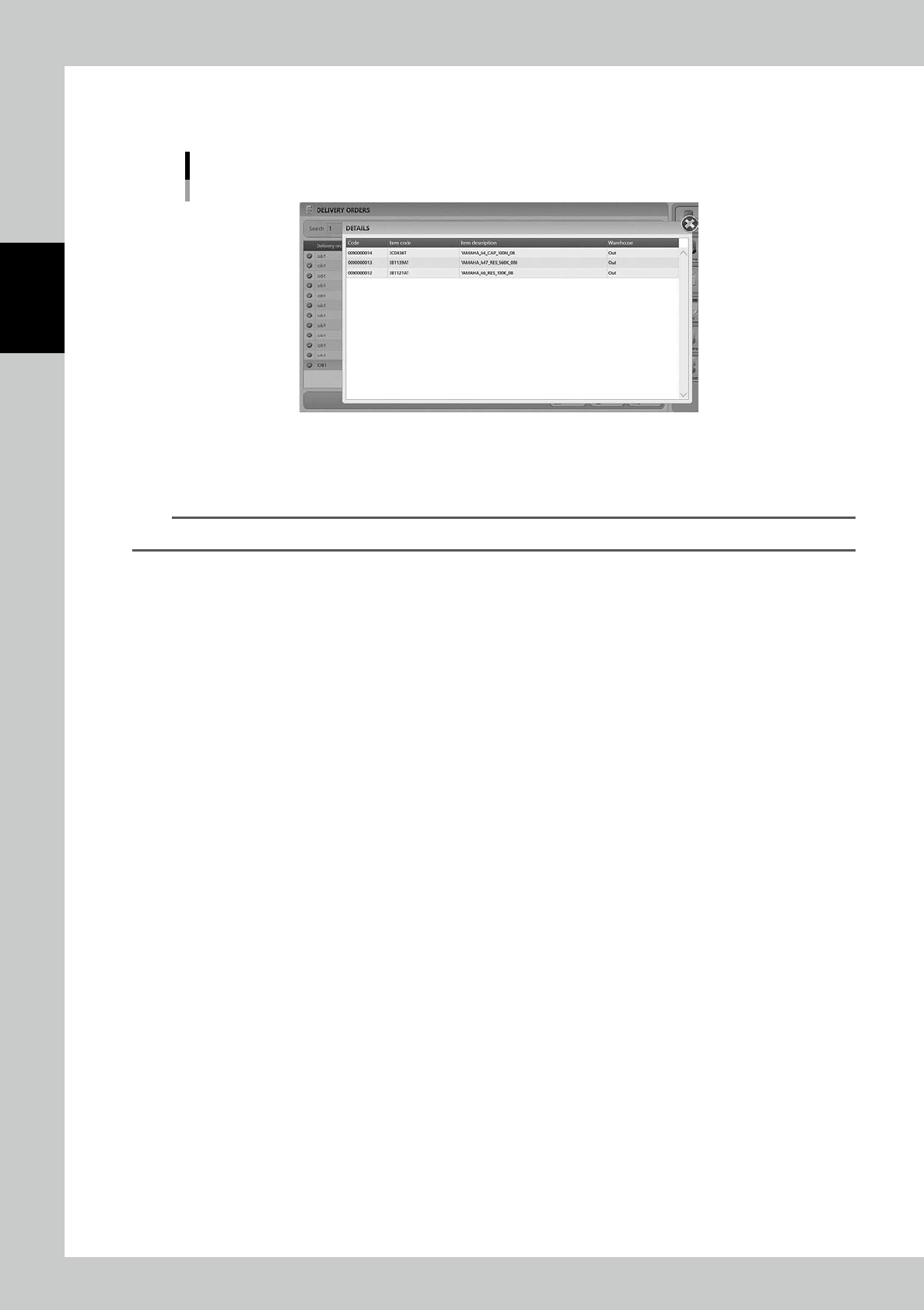

DELIVERY ORDERS DETAILS
242C7-KMS-00
7. [Extract] button
Normally unloading packagings by delivery orders are performed according to the order they are input,
but, it is possible to prioritize to start a delivery order by selecting it and pressing [Extract] button manually.
TIP
Completed delivery orders can't be extracted and even deleted.
