3.2.5 Make a setting of Alias

Alias setting is the function that some items can be used alternatively for the other items if there are no enough

quantities of them. If "Alias" is ticked at registration of Job Order or Planner, the items registered for an item

can be unloaded as its alias.

Select the item.

Select the item used mainly.

Select "Alias".

Select "Alias" in Menu, then "ALIAS" screen appears.

"ALIAS" screen

Select the item

“Alias”

[Menu] button

24225-KMS-00

Select the items.

Press [Add], then select an item to be set as the alias in "Item Code".

Press [Save] button to register the item as the alias.

"ALIAS" screen

[Add] button

[Save] button

“Item code”

24226-KMS-00

TIP

Select the item in "ALIAS" screen and press [Remove] button, then the alias setting of the item is removed.

2-27

Operation

3.3 Packaging

Item quantities and types of packagings stored in YST15 are registered in "PACKAGING" screen.

Bar code labels to manage packagings in the machine are printed based on this information.

There are two ways for registration. One is to register single packaging one by one. The other is to register

packagings at once by import function.

3.3.1 PACKAGING screen

"PACKAGING" screen

2 4

5 6 7 8 9

24227-KMS-00

1. Packaging list

Registered packagings are listed. Pressing a content in the top line sorts items.

The details of contents are described in the following page, too.

Code

Packaging numbers in the machine. The machine gives the numbers automatically when

the packagings are registered.

Item code The item codes, which are registered in "ITEM" screen, including in the packagings.

Description Details of items including the packagings. They are registered in "ITEM" screen.

Job Order

Job orders which are related to the packagings.The packagings which are reserved for

job orders are colored with red.

Type SMD, surface mount device, or TH, through hole, which is registered in "ITEM" screen.

Quantity The remaining quantities of the packagings.

Date code

Manufacture dates of the items included in the packaging. For example, "1829" means

29th week of year 2018.

Warehouse

The place where the packaging are stored. For example, "LZERO3-1.32968" means the

cell 32968 in 1st LZERP3, "Out" means out of the machine.

2. Search bar

Able to search based on Code or Description. Pressing [Search] button with words starts searching related packagings.

Pressing [Cancel] button stop searching.

3. [Refresh] button

Able to update stocks manually after production and re-loading packagings which include remaining items.

2-28

Operation

4. [Menu] button

Able to go to each function.

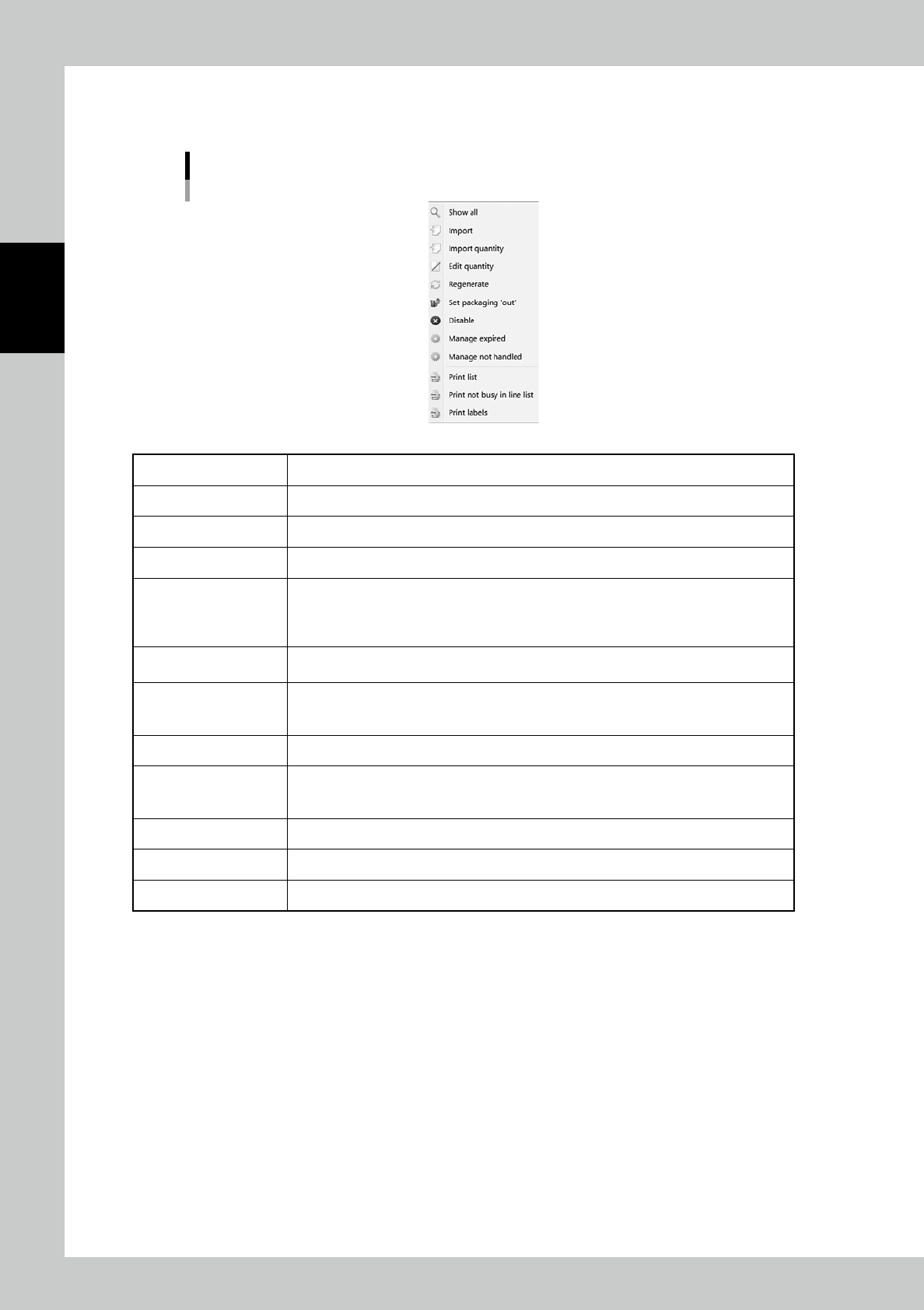

Menu list

24228-KMS-00

Show All All packagings are displayed.

Import Able to register packagings at once by importing files such as txt and csv format.

Import quantity Able to input remaining quantities of packagings by importing files such as txt and csv format.

Edit quantity Able to edit theremaining quantity of the selected packaging.

Regenerate

Packagings which are expired about MSL are colored blue to indicate expired so that they

can't be used.

If an expired packaging requires to become useful with treated baking processing, use this

function to enable the packaging.

Set packaging 'out'

Able to set the place for the selected packaging "Out". If some packagings are taken away

manually, use this function..

Disable/Enable

Able to set the selected packaging not to be used. Job Order can't select the packagings

which are disabled here.

The disabled packagings become useful by setting back to Enable.

Manage Expired Expired packagings about MSL are listed.

Manage not handled

Packagings defined as "not handled" which are not often used are listed.

Packagings which are not unloaded in 365 days after loaded are defined as "not handled" as

default.

Print list Packagings are listed.

Print not busy in line list Packagings defined as "not busy" which are not reserved for any Job Orders are listed.

Print labels Able to print bar code labels for packagings which are ticked on the columns in left end.
