2-13 2 Operation • Log-in status Log-in status 24209-KMS-00 Server The status of connection to the server or the 1st machine. Station The machine number if there are multiple machines. If there is only one machine, "…
2-12
2
Operation
3. Operation screen and operation buttons
The screen overview and operation are described here.
3.1 Overview
There are three areas of the screen.
Upper area and lower area are always displayed wherever the screen moves.
Middle area displays contents depending on the work.
Main screen
Upper area
Middle area
Lower area
24206-KMS-00
3.1.1 Upper area
Upper area
[Solution] button Log-in Status
24207-KMS-00
• [Solution] button
This button displays the software version.
[Solution] button
24208-KMS-00
2-13
2
Operation
• Log-in status
Log-in status
24209-KMS-00
Server The status of connection to the server or the 1st machine.
Station The machine number if there are multiple machines. If there is only one machine, "1" is displayed.
User User name which has logged in at present.
2-14
2
Operation

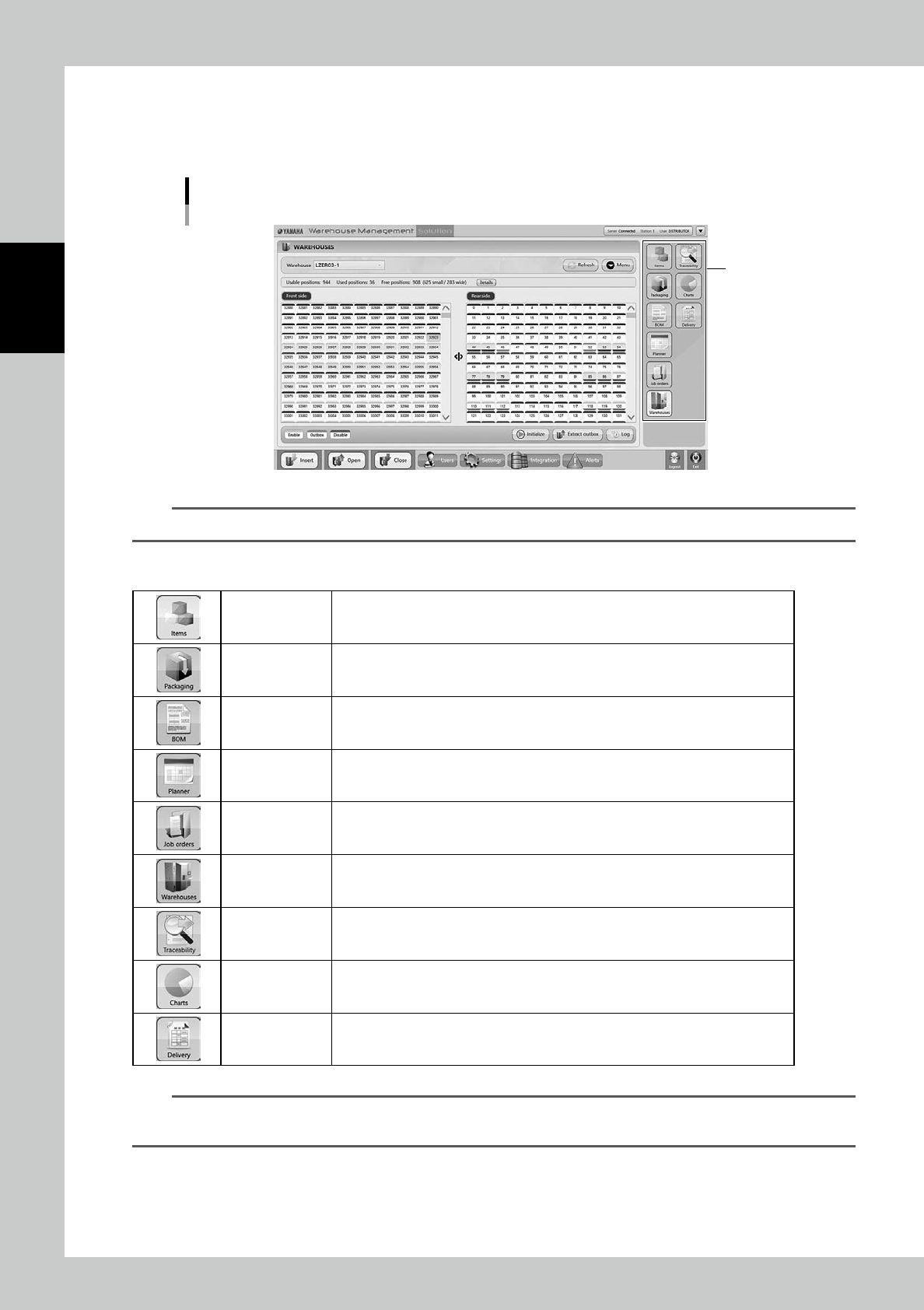

3.1.2 Middle area
Middle area is the main section of this software.
Pressing the buttons in right section displays their function screens. The selected button is colored with white.
Middle area
Buttons
24210-KMS-00
TIP
Once the software starts, these buttons are displayed in middle area.
The buttons are described in the following.
The screen of each button is described in the following pages.
Items Able to register details of items to be stored in the machine.
Packaging
Able to register types and quantities of packagings, which are related to registered
items, to be stored in the machine.
BOM Able to register the types and quantities of items required to product each product.
Planner
Able to judge the production feasibility based on the information of BOM and the
stocks of items and packagings.
Job orders
Able to create Job order which works for unloading packagings based on the
production plan and the BOM of its products
Warehouses The storage statuses of packagings in the machine are displayed.
Traceability Able to check the history of such as packagings loaded/unloaded.
Charts
The timeline charts of temperature and humidity inside/outside the machine are
displayed.
Delivery Able to check delivery orders and their history
n
NOTE
YST15 has a function to unload packagings according to external orders, if an external system manages remaining
item quantities and traceability. This function is called "Delivery order".
