1-5 1 Overview n Alcohol for cleaning Item Note Alcohol for cleaning Prepare IP A or absolute alcohol n Cleaning paper and soft cloth Item Note Cleaning wiper Do not make dust with it Soft cloth Used to clean sensors Cot…
1-4
1
Overview

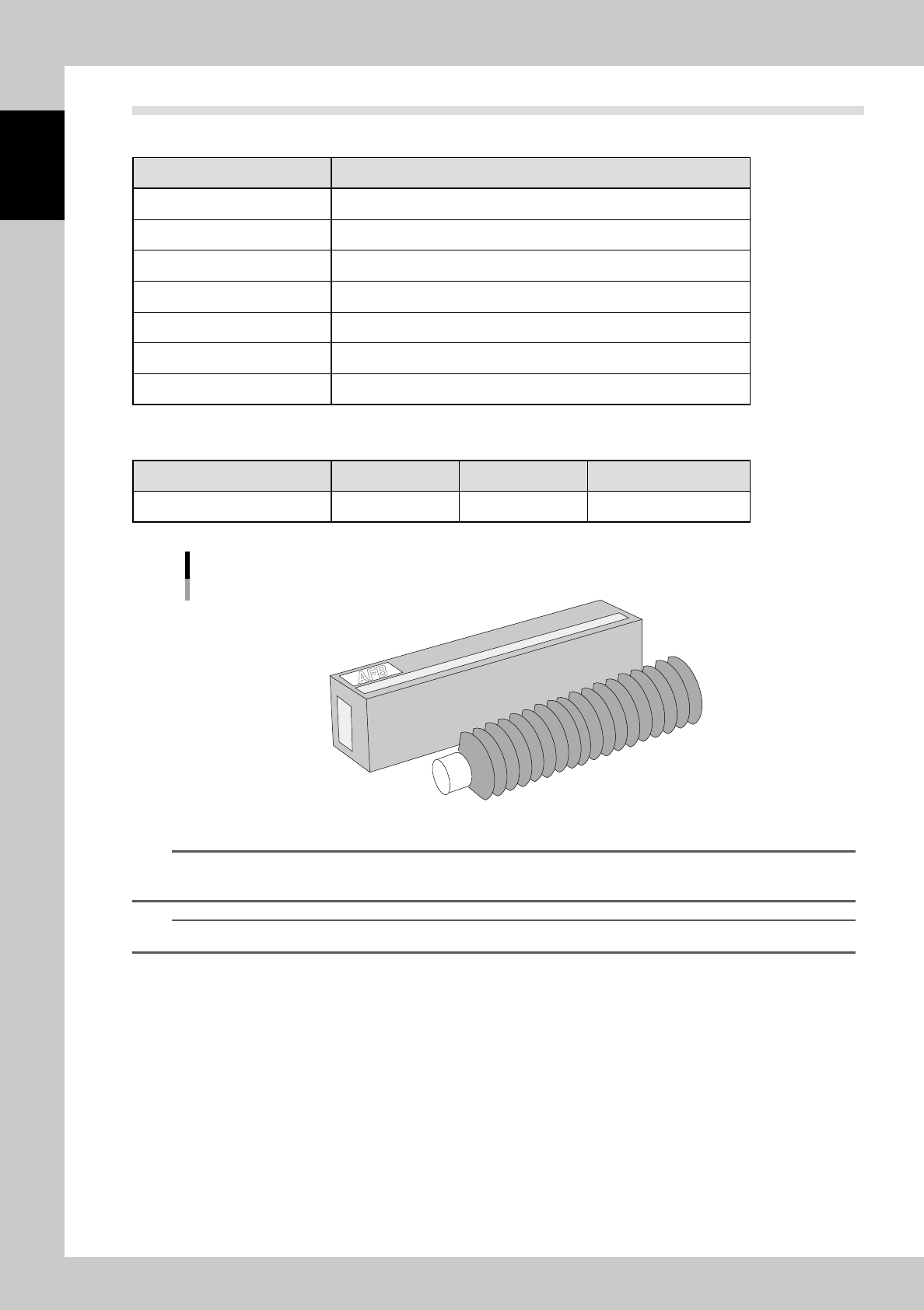

1.3 Tools and grease
n
Tools
Item Note
Precision flat-head screwdriver Used to check cable connection
Hex wrench set 2mm, 3mm, 4mm, and 5mm wrenches are used
Wrench 13mm Used to adjust Y-axis carrier wheels. Box wrench is recommended
Precision wrench set 7mm and 10mm are used
Vernier caliper Used to check X-axis level
Vacuum cleaner Used to clean inside machines
Step ladder This might be required to check inside the machine.
n
Grease
Item Part name Part number Note
AFB grease GREASE, AFB LG0-M86A4-00X 70g contained
AFB grease
53101-KMS-00
n
NOTE
AFB grease is used for three axes of the handler, Forward/Backward-axis, Open/Close-axis, and Rotation-axis. Do not
apply it on X-axis and Y-axis.
TIP
Apply grease by hands for this machine. Do not use grease guns.
1-5
1
Overview
n
Alcohol for cleaning
Item Note
Alcohol for cleaning Prepare IPA or absolute alcohol
n
Cleaning paper and soft cloth
Item Note
Cleaning wiper Do not make dust with it
Soft cloth Used to clean sensors
Cotton swabs Used to clean inside machine
n
Protective equipment
Item Note
Protective glove Used when working in machine
Protective glass Used when cleaning axes with alcohol
Protective glove of chemical
proof
Used when cleaning axes with alcohol and greasing
