Yearly maintenance items
Precautions
• Maintenance period
Maintenance period should be 1 year for machines which operate 8 hours a day in normal condition.
It is recommended to adjust the maintenance period depending on the machine operating time and the environment.
• Turn the machine off during maintenance, except for some indicated items.
• Work in the machine
It is required to work in the machine for some work.
Make sure that the machine is turned off before starting work.
Moving Y-axis up most or down most makes it easier to work in the machine in some cases.
Move Y-axis down most
Move Y-axis down most
53301-KMS-00
c
CAUTION
DO NOT move X-axis or Y-axis when Forward/Backward-axis moves forward.
Be careful not to step on and break the handler.
3-2
3
Yearly maintenance items
• "Initialization standby position" of the handler
"Initialization standby position" is defined as the state that the handler is placed in center of X-axis and Y-axis, and facing
forward.
If the handler is moved away from this position for maintenance, the handler must be placed back to this position before
initialization.
Initialization standby position
53302-KMS-00
3-3
3
Yearly maintenance items
1. Machine main unit
1.1 Cleaning in the machine
1
Turn the machine off.
2
Visually check inside the machine.
Open a side door and enter the machine
inside. Visually check the shelves and floor in
the machine.
3
Clean inside the machine
Use vacuum cleaner to clean inside the
machine.

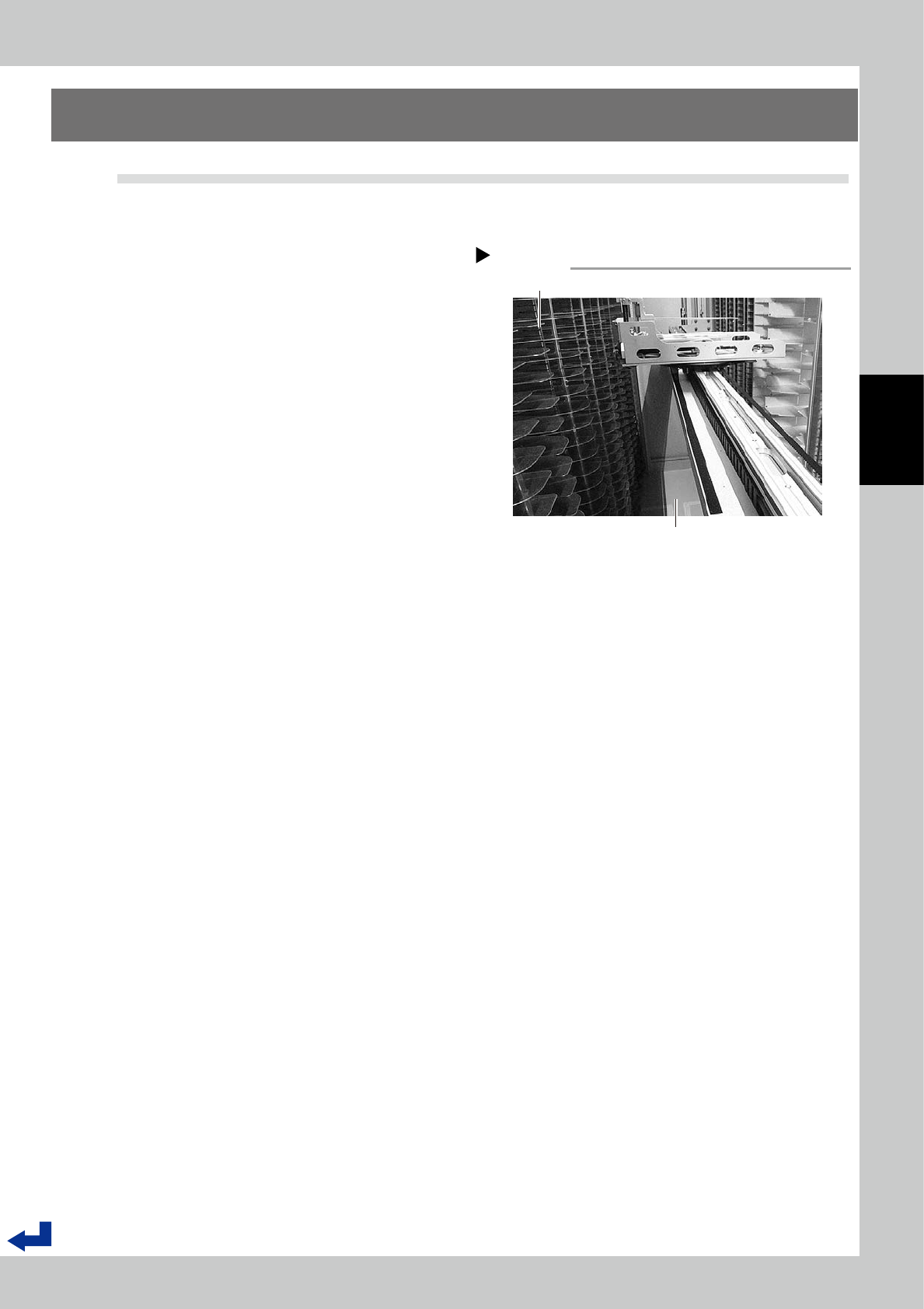

Inside the machine
Step 2
Shelves
Floor
53303-KMS-00
