2-43 2 Operation n NOTE If the barcode is placed in wrong direction due to the packaging direction, the internal barcode reader may fail to scan it. It can be read within 45 degree, but with more than 45 degree, the barc…
2-42
2
Operation
3.4 Loading/Unloading packagings
The process of loading/unloading packagings is described as the standard operation of YST15.
See "3.2 ITEMS" and "3.3 Packaging" for details of registering items and packagings.
n
NOTE
Only the packagings with bar code labels registered to the machine in advance can be loaded.

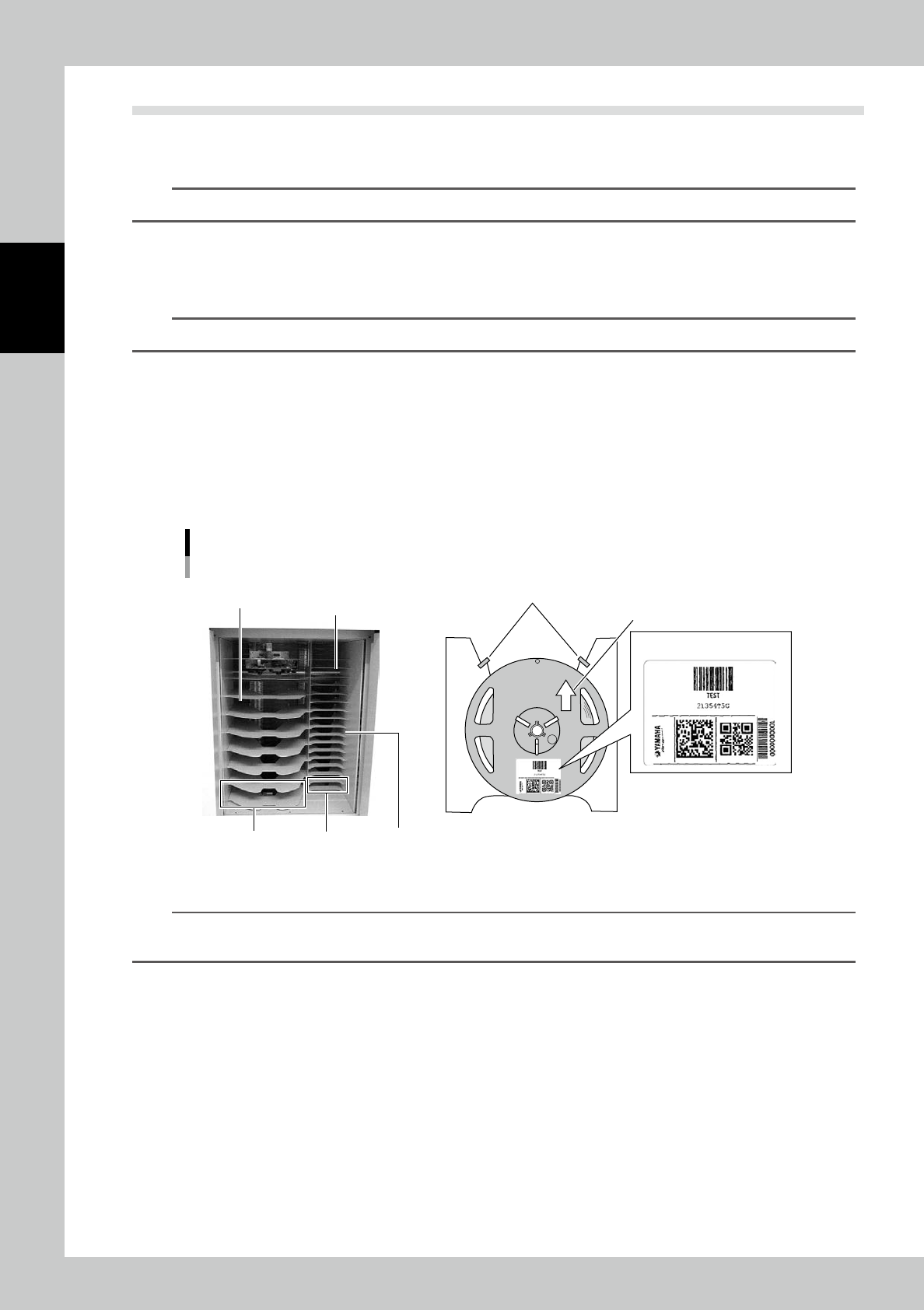

3.4.1 Loading packagings
1
Open the front door.
TIP
Front door can not open with locked while Handler is in operation.
2
Set packagings on Loading/Unloading area.
Follow the rules below to set packagings.
1. Set packagings from the top to down not to leave any empty shelf between packages.
2. Set packagings to let their barcodes be placed in front side (operator side).
3. Push each packaging until it touches in the rear end stopper of each shelf.
4. Keep the bottom-most shelf always empty because it is used only for Fast extraction.
Rules to set packagings
For 13-15-inch-reels
Set from the top.
Do not leave empty shelf
between packagings.
For 7-inch-reels
Keep the bottom-most shelf always
empty because it is used only
for Fast extraction.
Stopper
Push into the rear end stopper
Bar code label
23215-KMS-00
TIP
Loading/Unloading area of the figure is the type of 7-inch-reels/15-inch-reels combined.
The type depends on the machine specification.
2-43
2
Operation
n

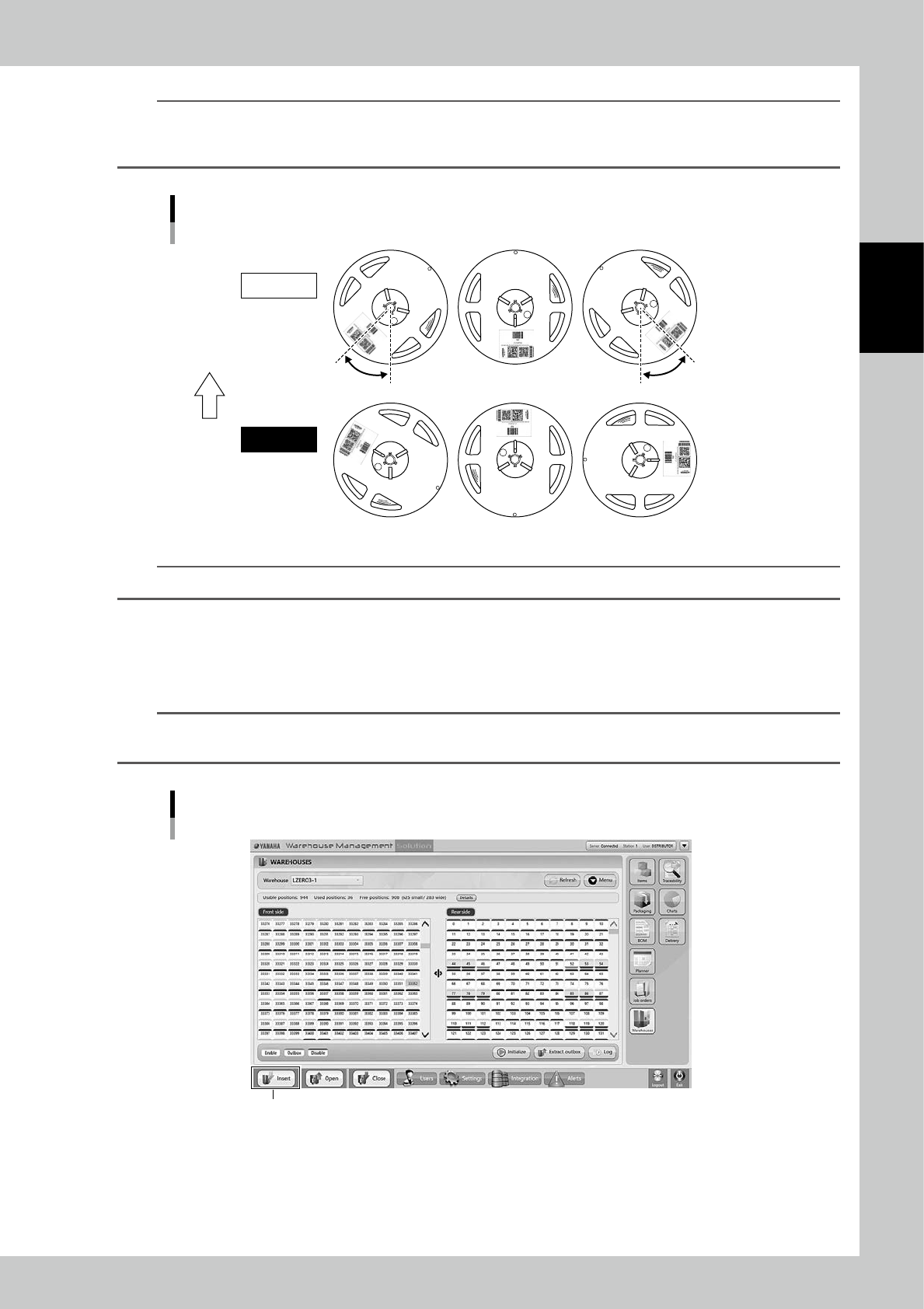

NOTE
If the barcode is placed in wrong direction due to the packaging direction, the internal barcode reader may fail to
scan it. It can be read within 45 degree, but with more than 45 degree, the barcode can be hidden by the handler or
the barcode can be out of the sight of the barcode reader.
Appropriate position of barcode labels
GOOD
FAILURE
45deg 45deg
Set direction
23216-KMS-00
TIP
When there are reels on Loading/Unloading area, the tower signal lights yellow.
3
Close the front door.
4
Load the packagings.
Press [Insert] at bottom left to load the packagings set in the shelf in order.
TIP
While loading packagings, the tower signal lights green and blue.
Once loading completed, the tower signal lights only green.
Load the packagings
[Insert] button
24246-KMS-00
2-44
2
Operation

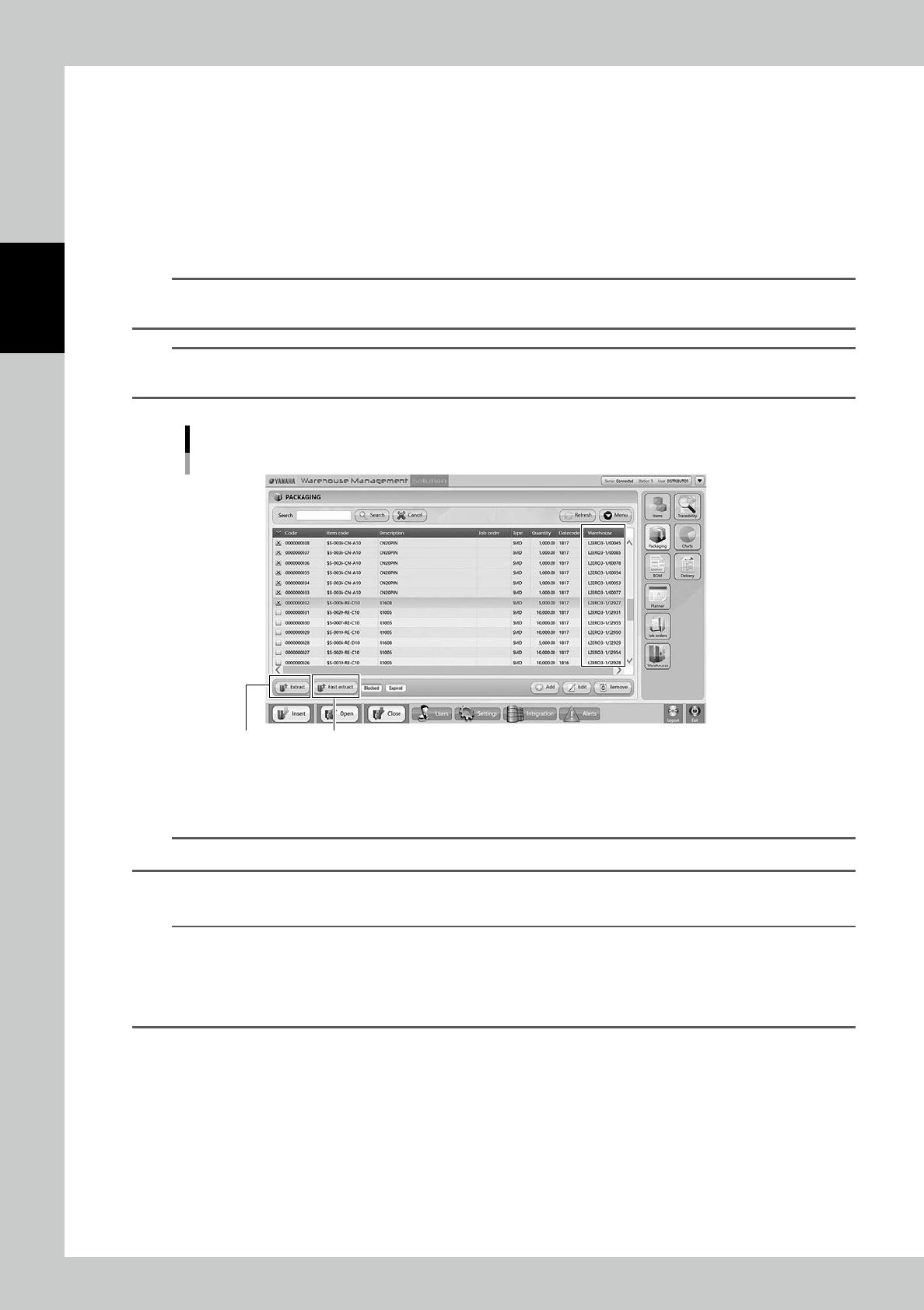

3.4.2 Unload packagings manually
The process of unloading packagings manually is described.
See "3.6 Job Orders" for the procedure to unload a group of packagings.
1
Open "PACKAGING" screen.
2
Tick the check boxes at left end of the packagings to be unloaded.
3
Press [Extract] button to unload the selected packagings.
TIP
Packagings stored in the machine have their cell numbers in "Warehouse" column.
Unloaded packagings have indication of "Out".
TIP
While unloading packagings, the tower signal lights green and yellow.
Once the machine completes unloading the packagings, the tower signal lights only yellow.
"PACKAGING" screen
[Extract] button [Fast Extract] button
24247-KMS-00
4
Confirm the tower signal lights only yellow, which means unloading completes,
then open the front door to take out the packagings.
TIP
Once the packagings are taken out, the tower signal lights green instead of yellow.
5
Close the front door.
TIP
[Fast extract] button
If a certain packaging requires to be unloaded as soon as possible while the machine is unloading packagings, use
this button so that the desired packaging can be unloaded earlier than the others.
Tick the check box at left end of the packagings which require to be unloaded soon, and press [Fast extract] button,
then the ticked packaging is unloaded.
