2-6
2
Operation
n
The case Handler is moved for some work like such as maintenance.
If Handler is moved for maintenance, or the machine stops operation by an error, confirm Handler is in Initialization
standby position.Confirm WMS MANAGER is on.
1
Check the machine status.
Open the side door, check Handler position inside the machine.
Confirm Handler is around center of X-axis and Y-axis, and it faces forward.
Initialization standby position
23204-KMS-00
n
NOTE
It is fine Handler is located around center. It must not be at either end of X-axis or Y-axis.
n
NOTE
This position is called Initialization standby position.
2
Turn Operation switch on.
Turn Operation switch left and turn it right.
Once boards are powered on, Operation indicator lights green.
3
Perform initialization.
See "1.2 Initialization" to perform initialization.
2-7
2
Operation
1.3 Turning off the machine.
1
Turn Operation switch off.
Turn Operation switch left to turn it off.
Operation buttons
Operation switch
Main switch
23205-KMS-00
2
Press [EXIT] button at bottom right in the screen.
3
Close the application.
The message "Do you want to quit ?" appears. Select [YES].
Close "WMS MANAGER"
[Exit] button
24204-KMS-00
2-8
2
Operation
4
Shut down the touch screen monitor.
1. Left click Menu button at bottom left in the screen.
2. Select "Shut Down", then touch screen monitor closes its operating system and it is turned off.

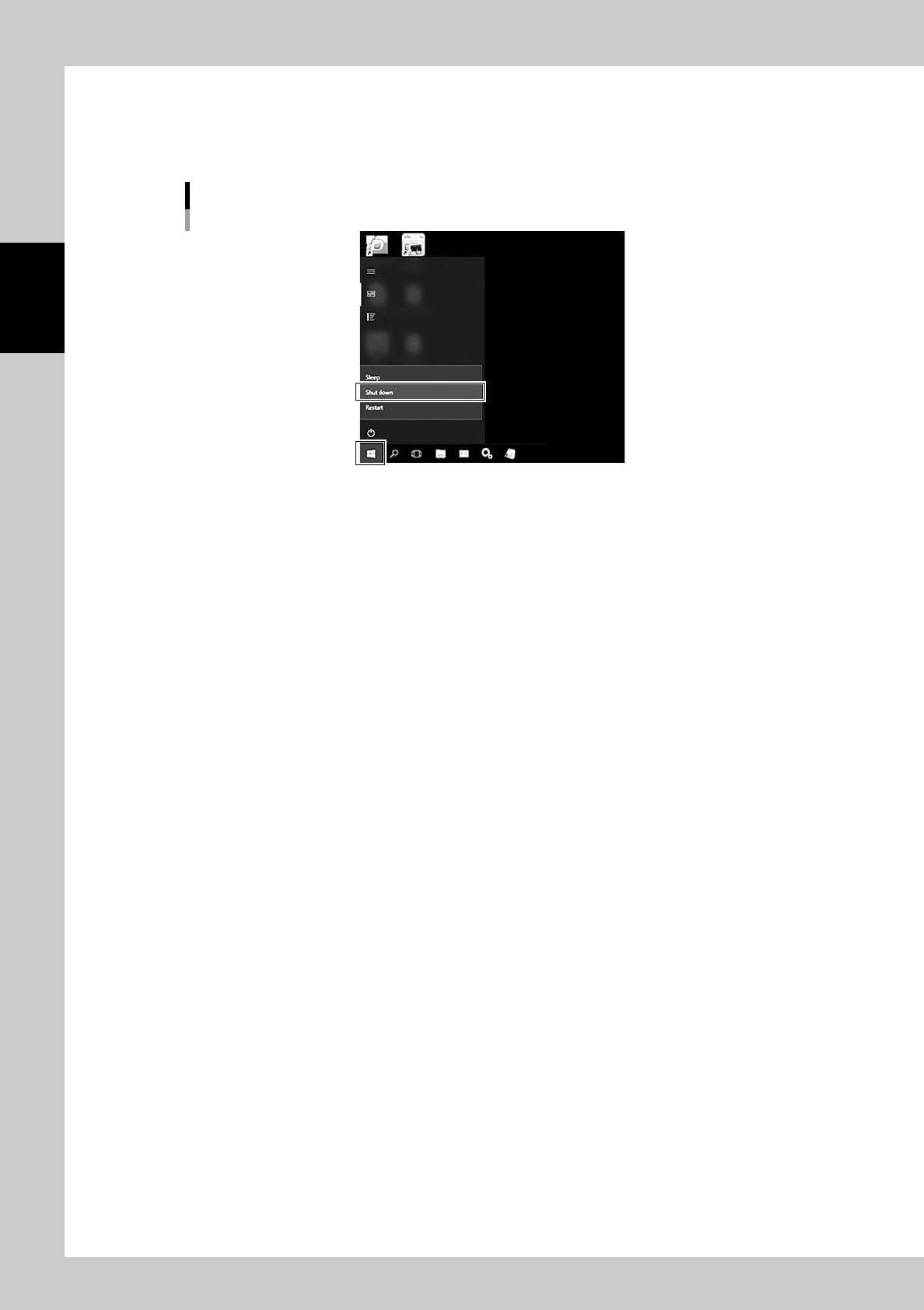

Shutdown menu
24205-KMS-00
5
Turn off Main switch.
Confirm the touch screen monitor is powered off, turn the main switch to 0 from 1.
