3-3 3 Y early maintenance items 1. Machine main unit 1.1 Cleaning in the machine 1 T urn the machine off. 2 Visually check inside the machine. Open a side door and enter the machine inside. Visually check the shelves and…
3-2
3
Yearly maintenance items
• "Initialization standby position" of the handler
"Initialization standby position" is defined as the state that the handler is placed in center of X-axis and Y-axis, and facing
forward.
If the handler is moved away from this position for maintenance, the handler must be placed back to this position before
initialization.
Initialization standby position
53302-KMS-00
3-3
3
Yearly maintenance items
1. Machine main unit
1.1 Cleaning in the machine
1
Turn the machine off.
2
Visually check inside the machine.
Open a side door and enter the machine
inside. Visually check the shelves and floor in
the machine.
3
Clean inside the machine
Use vacuum cleaner to clean inside the
machine.
Inside the machine
Step 2
Shelves
Floor
53303-KMS-00
3-4
3
Yearly maintenance items

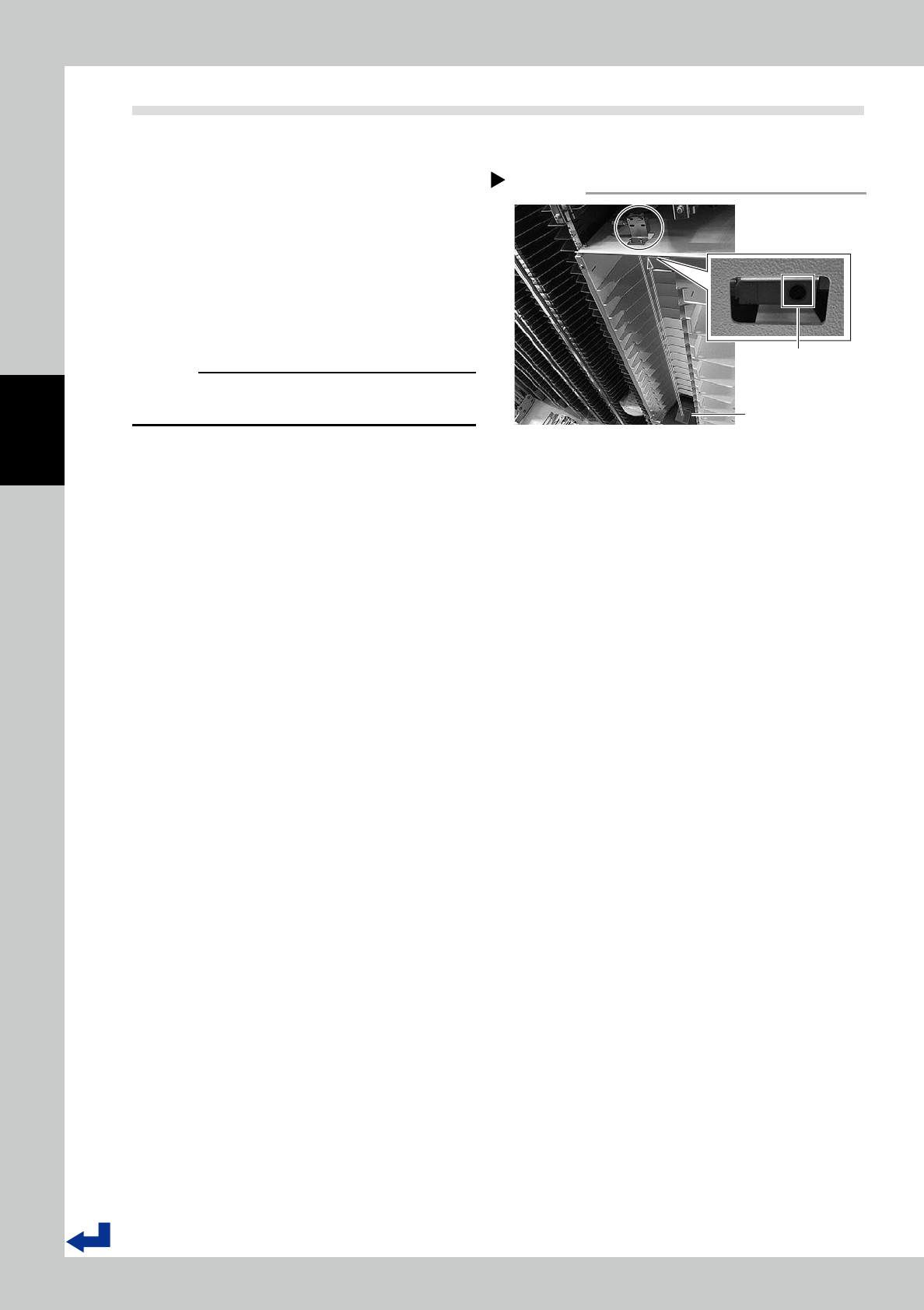

1.2 Cleaning reel detection sensors in loading/unloading area
1
Turn the machine off.
2
Clean the reel detection sensors
Open a side door and enter the machine.
Use dry soft cloth to clean two reel detec-
tion sensors at top of loading/unloading
area.
3
Clean reflectors.
Use dry soft cloth to clean two reflectors at
bottom of loading/unloading area.
c
CAUTION
Do not use alcohol for cleaning sensors and reflectors.
Using alcohol may damage sensors and reflectors.
Step 2,3
Reel detection sensors and reflectors
Two reflectors
To be cleaned
Two reel detection sensors
53304-KMS-00
