2-25
2
Operation
TIP

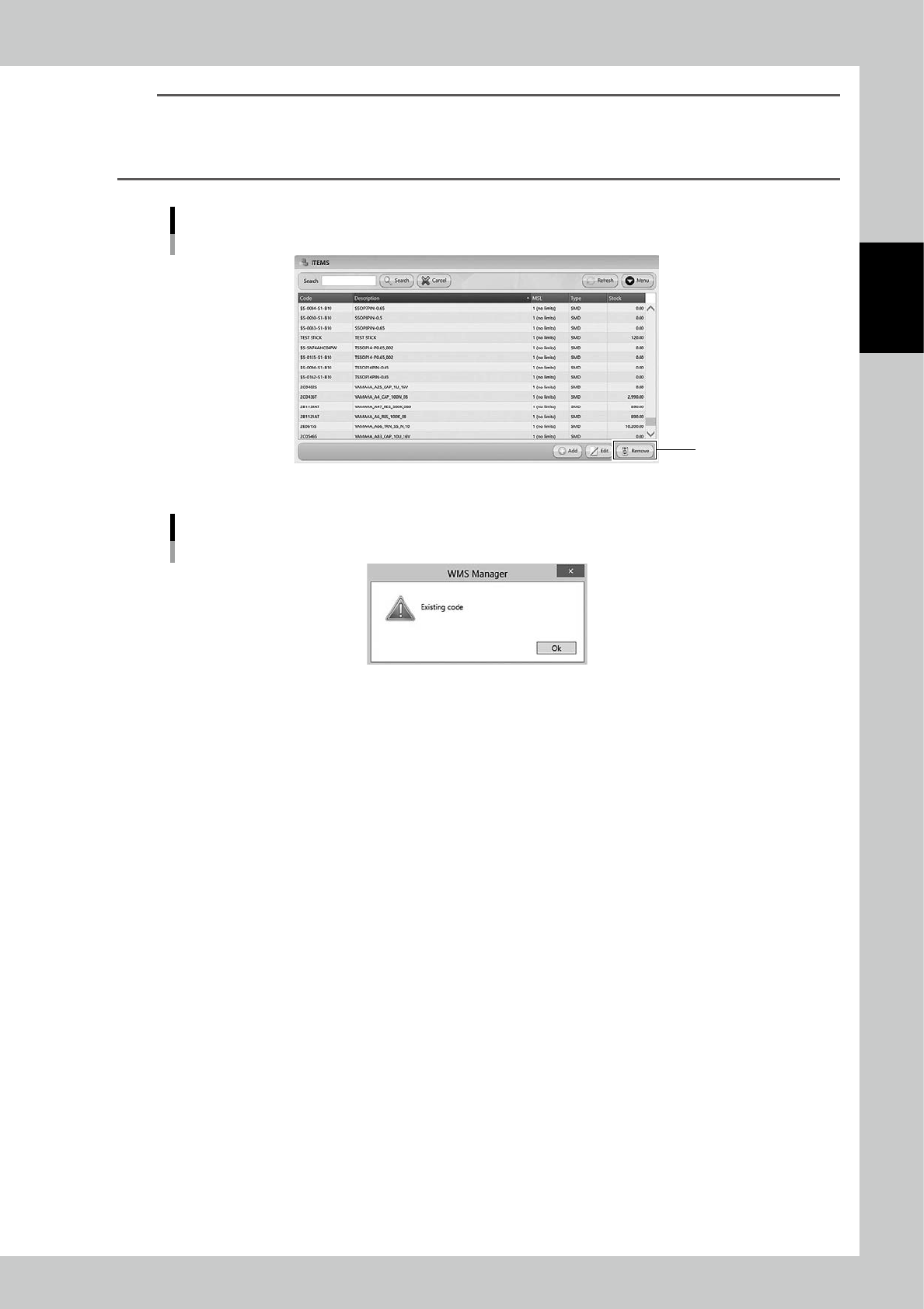

[Remove] button, which is displayed only for engineer authority.
Select an item and press [Remove], then the item is removed.Items which are removed once are not able to be
registered again, and the histories of them are also removed in traceability.
DO NOT remove any registered items basically.
[Remove] button
[Remove] button
24223-KMS-00
Existing Code
24224-KMS-00
2-26
2
Operation
3.2.5 Make a setting of Alias
Alias setting is the function that some items can be used alternatively for the other items if there are no enough
quantities of them. If "Alias" is ticked at registration of Job Order or Planner, the items registered for an item
can be unloaded as its alias.
1
Select the item.
Select the item used mainly.
2
Select "Alias".

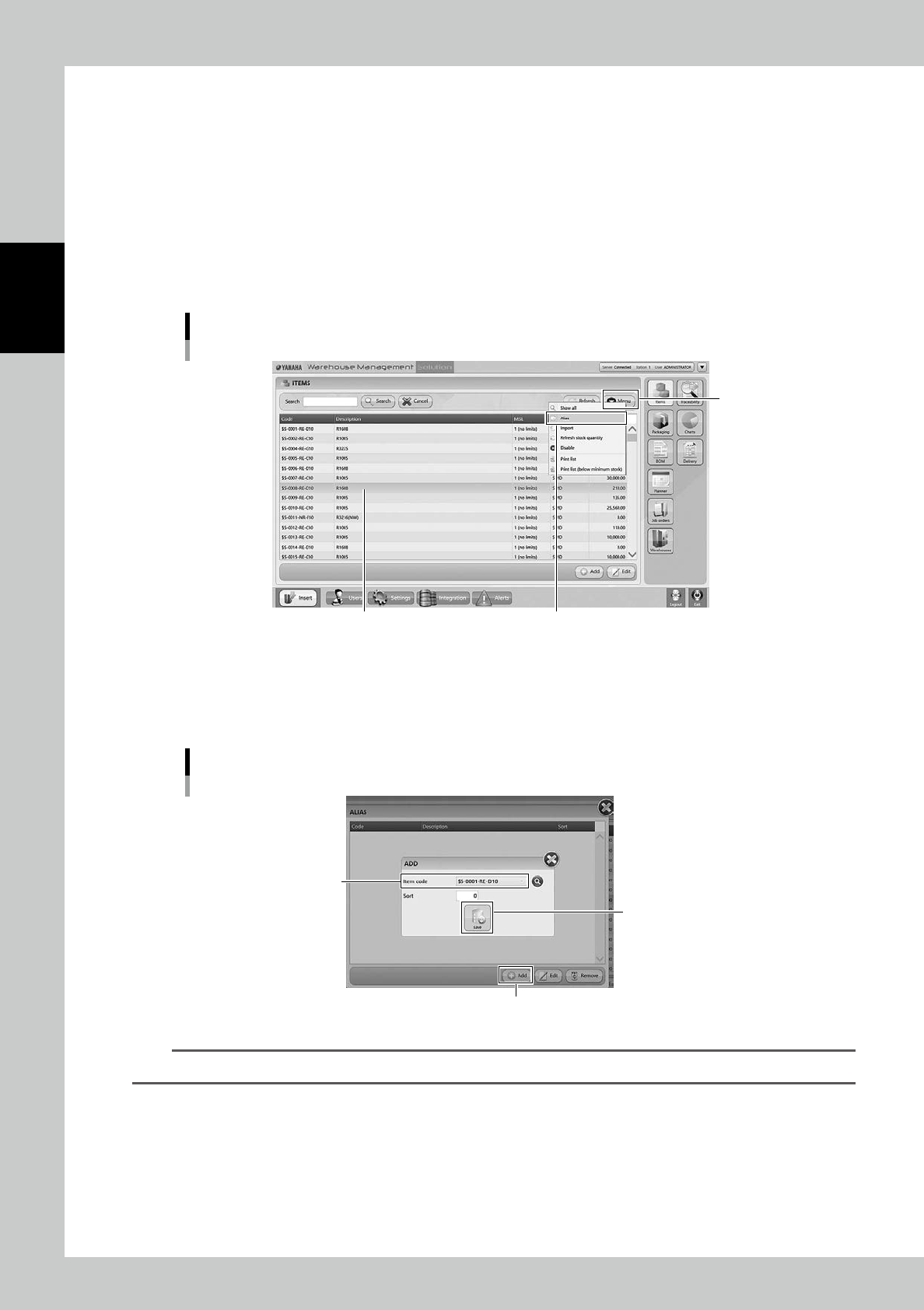

Select "Alias" in Menu, then "ALIAS" screen appears.
"ALIAS" screen
Select the item
“Alias”
[Menu] button
24225-KMS-00
3
Select the items.
Press [Add], then select an item to be set as the alias in "Item Code".
Press [Save] button to register the item as the alias.
"ALIAS" screen
[Add] button
[Save] button
“Item code”
24226-KMS-00
TIP
Select the item in "ALIAS" screen and press [Remove] button, then the alias setting of the item is removed.
2-27
2
Operation
3.3 Packaging
Item quantities and types of packagings stored in YST15 are registered in "PACKAGING" screen.
Bar code labels to manage packagings in the machine are printed based on this information.
There are two ways for registration. One is to register single packaging one by one. The other is to register
packagings at once by import function.
3.3.1 PACKAGING screen

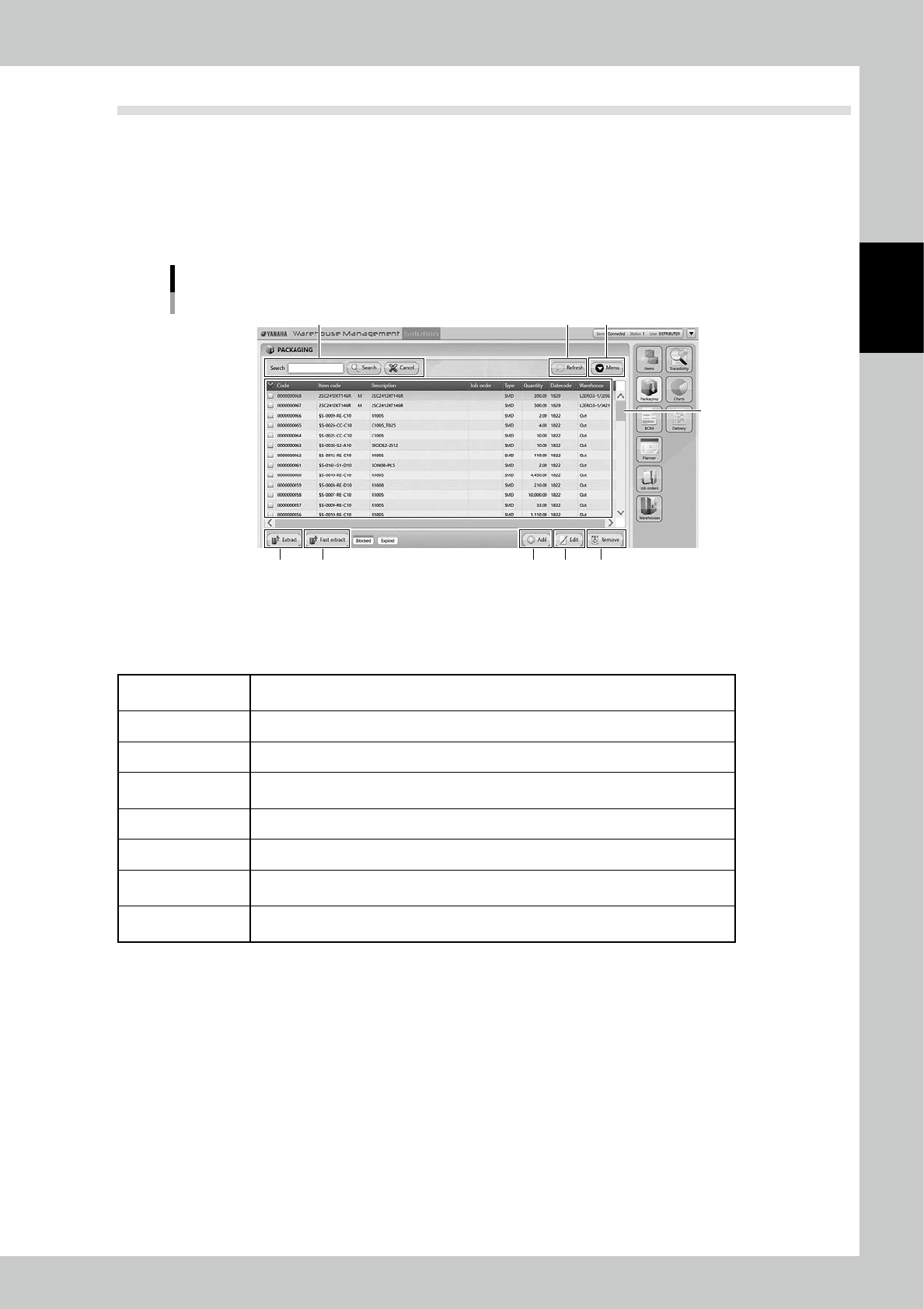

"PACKAGING" screen
1
2 4
5 6 7 8 9
3
24227-KMS-00
1. Packaging list
Registered packagings are listed. Pressing a content in the top line sorts items.
The details of contents are described in the following page, too.
Code
Packaging numbers in the machine. The machine gives the numbers automatically when
the packagings are registered.
Item code The item codes, which are registered in "ITEM" screen, including in the packagings.
Description Details of items including the packagings. They are registered in "ITEM" screen.
Job Order
Job orders which are related to the packagings.The packagings which are reserved for
job orders are colored with red.
Type SMD, surface mount device, or TH, through hole, which is registered in "ITEM" screen.
Quantity The remaining quantities of the packagings.
Date code
Manufacture dates of the items included in the packaging. For example, "1829" means
29th week of year 2018.
Warehouse
The place where the packaging are stored. For example, "LZERO3-1.32968" means the
cell 32968 in 1st LZERP3, "Out" means out of the machine.
2. Search bar
Able to search based on Code or Description. Pressing [Search] button with words starts searching related packagings.
Pressing [Cancel] button stop searching.
3. [Refresh] button
Able to update stocks manually after production and re-loading packagings which include remaining items.
