1-9
1
Unit names and functions
1.4 Hygrometer and dehumidifier
Hygrometer

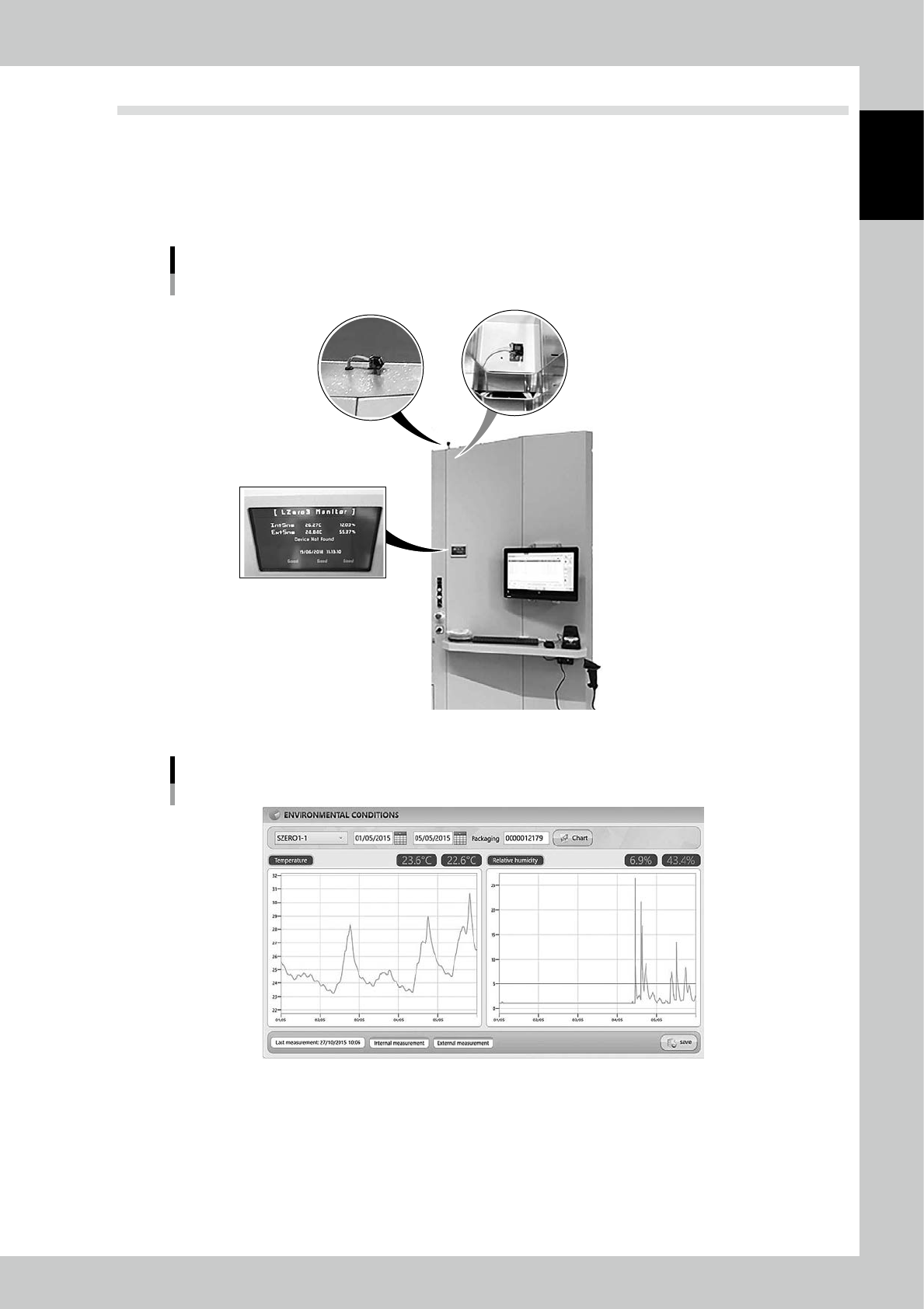

The hygrometers, which are located the machine top and inside, monitors humidity inside/outside the machine.
The current value can be checked on the LCD monitor.
The history is shown as a graph in “CHART” function.
Hygrometer
Outside hygrometer Inside hygrometer
Hygrometer monitor
23112-KMS-00
"Chart" screen
24101-KMS-00
1-10
1
Unit names and functions
Dehumidifier

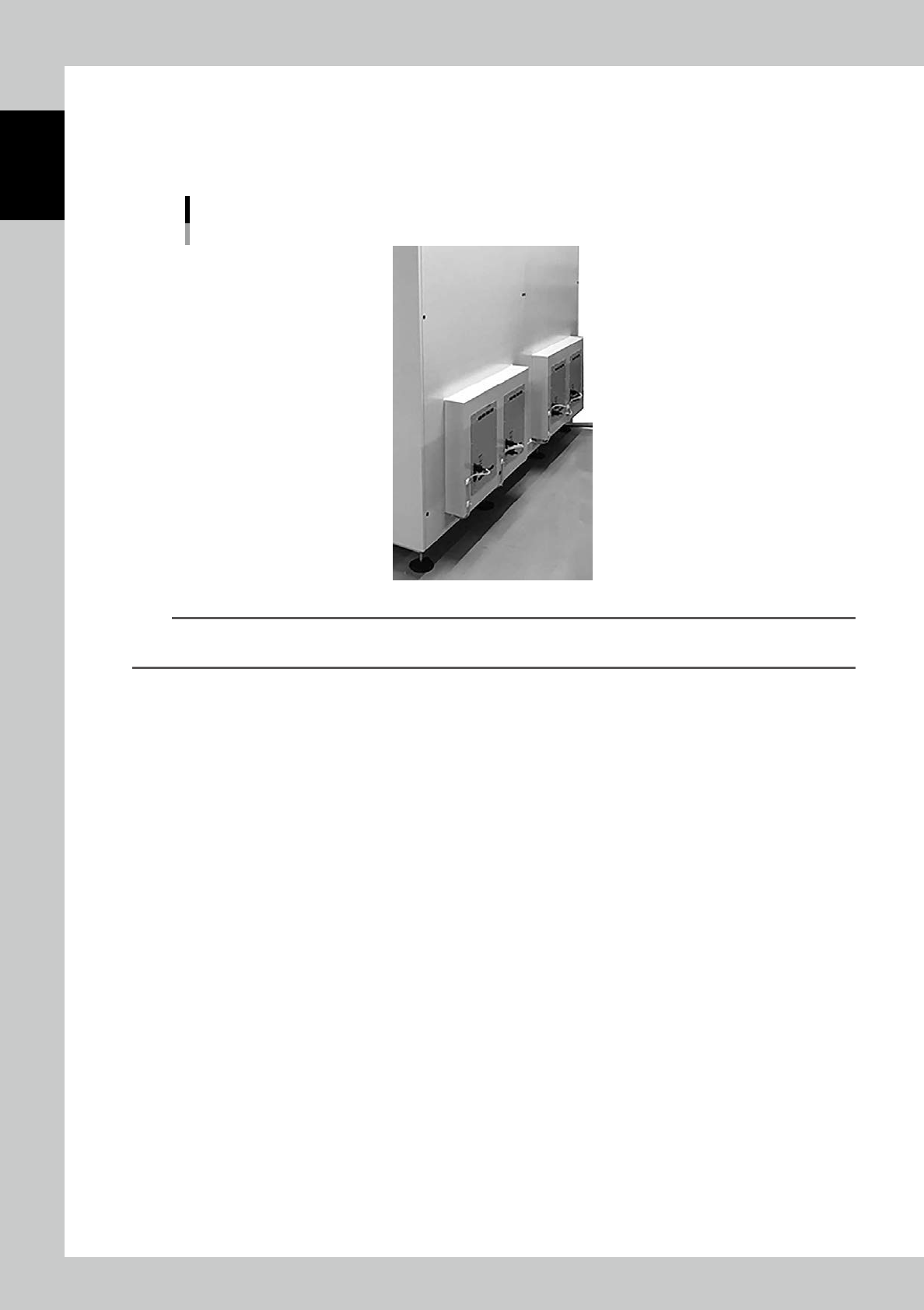

Dehumidifiers on the machine back dehumidify inside the machine.
There are four dehumidifiers. Since two of them work for “dehumidification” and the others work for “releasing moisture
to the air” alternately at 140 minutes intervals, it is not required to deal with water.
Dehumidifier
23113-KMS-00
TIP
The performance of the dehumidifier depends on its surrounding environment such as the place where the machine
is.
