Overview
"Intelligent SMD storage system YST15" is an automated warehouse system that automatically stores and
manages components.
YST15 can store up to 1500 7-inch size component reels in it as standard. The computer manages the stored
components and automatically extract them by considering the type, quantity, expiration date, and so on.
This machine can prevent human errors which are associated with loading/unloading components, and con-
trol the inventory properly. Additionally, it can handle more components and save larger space than opera-
tors manage the warehouse manually.
In addition, since up to 32 reels can be loaded or unloaded at a cycle, though it depends on the specifica-
tion the operator is not required to wait there, so the work efficiency will be significantly improved.
1-2
1
Unit names and functions
1. Machine main unit

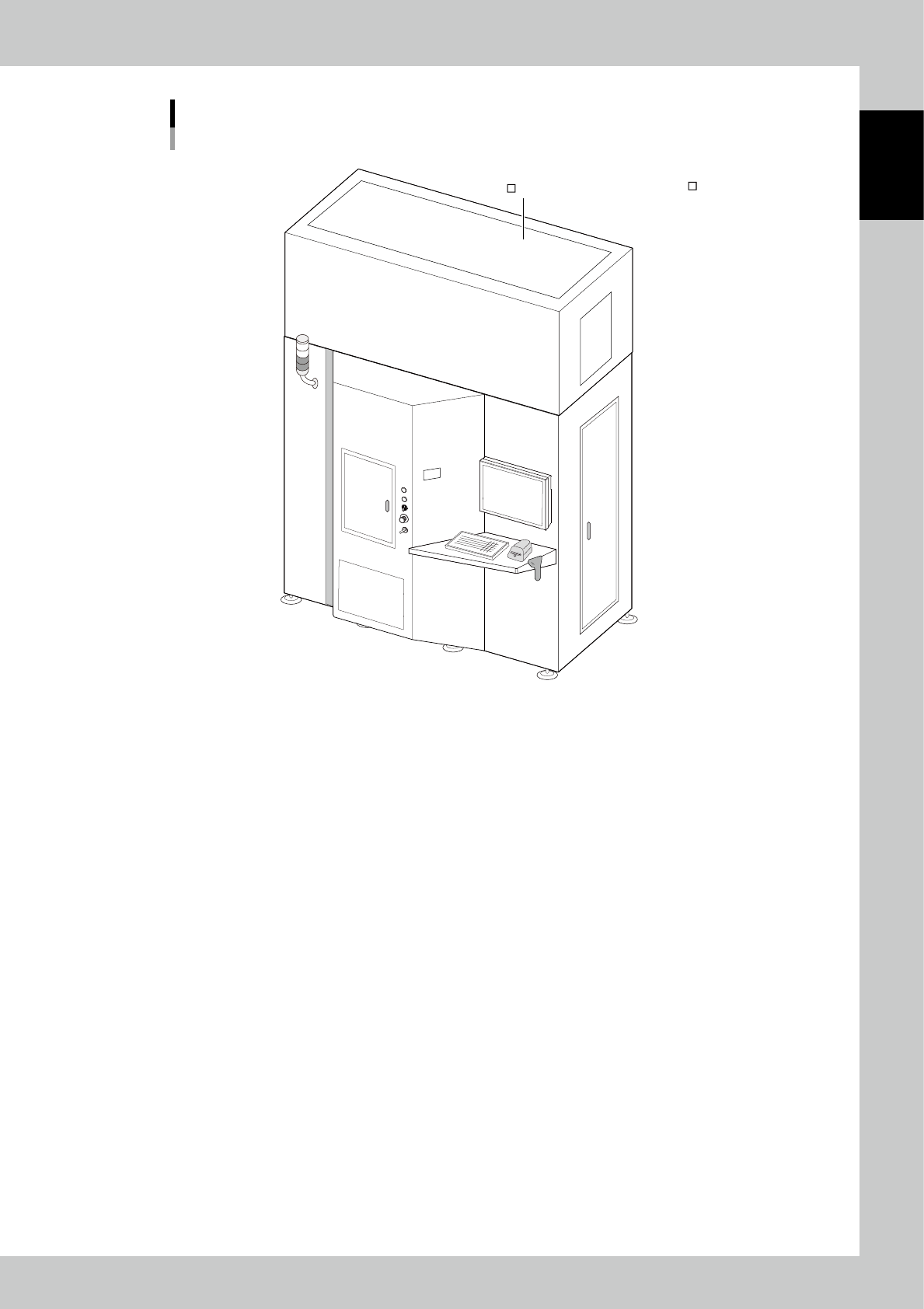

A standard machine has the following configurations after installation is complete.
Names and functions of major parts of the main unit are illustrated below.
Front
Rear
n Keyboard
n Tower signal
n : Standard units
: Options
Machine main unit
Standard specification
n Main control panel
n Dehumidifier
n Label printer
n Operation buttons
n Front door
n Bar code reader
n Touch screen monitor
n Side door
n Humidity monitor
23101-KMS-00
1-3
1
Unit names and functions
Machine main unit
Extension specification
Front
n : Standard units
: Options
Extension unit
23102-KMS-00
