6 Gantries 6.4 Trailing cable and printed circuit boards 132 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 Removal ► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthori…
6 Gantries
6.4 Trailing cable and printed circuit boards
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 131
6.4.6 Replacing the Head Interface
Parts, equipment and tools
NOTICE
SIPLACE C&P20 P/P2
If converting to a SIPLACE C&P20 P/P2, you must fulfil the following requirements:
► The head interface must have at least FS03 for a SIPLACE C&P20 P and at least
FS04 for a SIPLACE C&P20 P2.
► The Powercube [03055514-xx] must have at least FS02. Head interface with FS03 or
higher fulfil this requirement.
► It is possible to use a SIPLACE C&P20 P2 from serial no. H1440.
► A combination of SIPLACE C&P20 P and SIPLACE C&P20 P2 is not possible.
●
Select the appropriate head interface:
Machine type Gantry Head interface
SIPLACE X3 S, X4 S (micron) All Module head interface C700X-L HR
[03091013‑xx]
SIPLACE X4i S (micron) 1 and 3
SIPLACE X4i S (micron) 2 and 4 (rotated) Module head interface C700X-R HR
[03091023‑xx]
●
Loctite 241 or 243
Overview

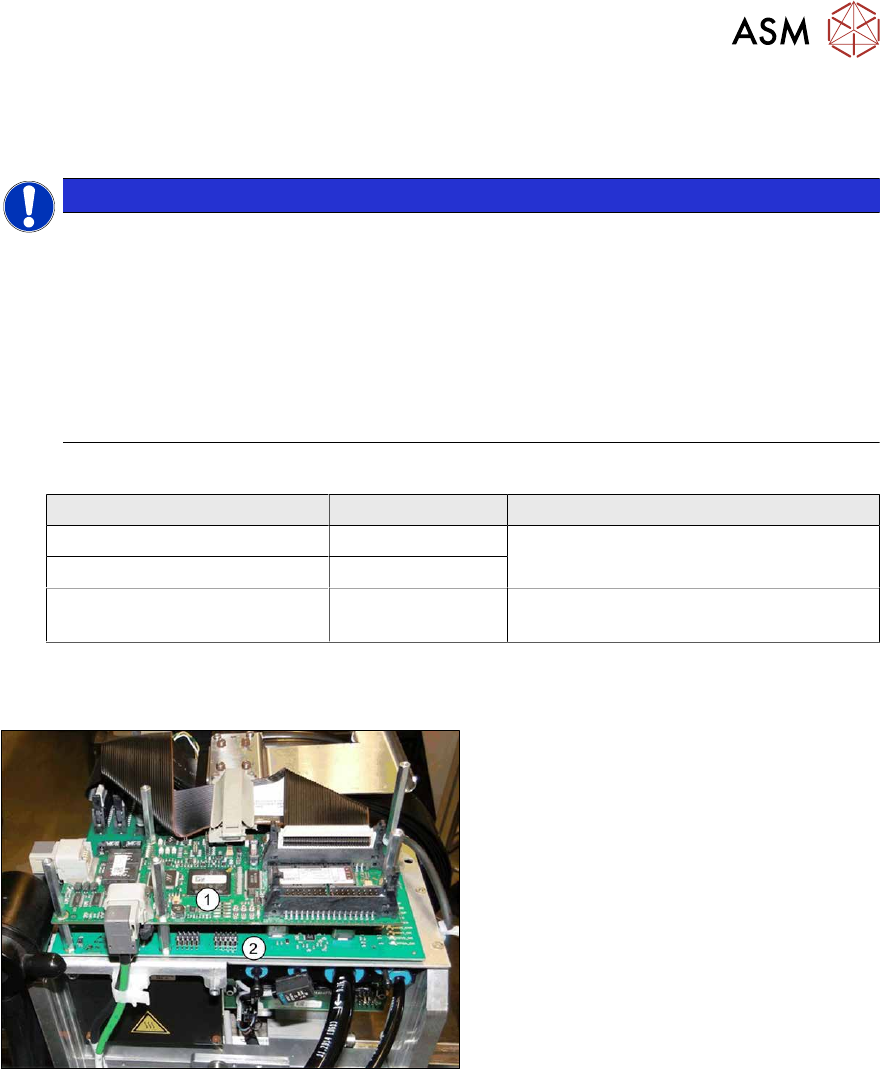

Fig.171: Boards on the gantry (from Hxxxx, with GigE)
1. Vision Head Interface (VHI)
2. Head interface including power cube
(under the VHI)
6 Gantries
6.4 Trailing cable and printed circuit boards
132 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► If there is a cover above the boards, dismantle it.
6.4.1 "Replacing the cover on the boards" [}118]
► Dismantle the Vision Head Interface.
6.4.8 "Replacing the Vision head interface (VHI)" [}136]
► Unplug all connector from the head interface and remove all cable ties. You might like to mark
their positions to make clear assignment or replacement easier later on.
► Remove the screws fastening the head interface.
► Carefully remove the head interface. Make sure that the connectors to the head adapter
MHCU are not damaged.
Installation
► Apply the DIP switch setting from the old head interface.
Follow the removal instructions in reverse order for further installation. Also observe the following
instructions:
Fig.172: Dummy plug
► Secure the connector X1on the head
interface, if present, with two dummy
plugs(1)
.
CAUTION!
Without the dummy plugs, there is a
risk of short circuit at the board cover!
.
6 Gantries
6.4 Trailing cable and printed circuit boards
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 133
Board description for head interface C700X-L/R HR
There are two head interface designs. Depending on the gantry, either head interface C700X-L or
C700X-R will be used.
Fig.173: Standard gantry (not rotated) [03091013-01]
