9 Component feeding
9.6 Smart Pin Support
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 365
9.6.7 Replacing the pneumatic cylinder
Parts, equipment and tools
●
Pneumatic cylinder [03088037Sxx]
●
Circlip pliers size 0 (supplier: http://www.hoffmann-tools.com – item no.:719770 J0)
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
Overview
Fig.525: Pneumatic cylinder
1. Swivel head
2. Pneumatic cylinder guidance
3. Pneumatic cylinder
4. Pneumatic connection for pneumatic
cylinder
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the Pin Picker.
9.6.1 "Replacing the Pin Picker Assembly" [}357]
► Remove the swivel head. For more information, read section 9.6.6 "Replacing the swivel
head" [}364].
► Unplug the pneumatic connection to the pneumatic cylinder.
Fig.526: Holding bolt
► Remove the circlip on the holding
bolt(1)
of the pneumatic cylinder and
then pull out the holding bolt.
9 Component feeding
9.6 Smart Pin Support
366 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
Installation
Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
► The circlips on the holding bolts are highly sensitive. Take care when placing these on the
holding bolt.
► Set the swivel head so that the following conditions are fulfilled:
► Check the linear guide travel path. The linear guide must be easy to move along the whole
length.
► Check that the sensors switch properly. The switch tag of the linear guide must have approx.
1 mm space to the trolley.
See also
2 9.6.12 "Replacing the top sensor" [}371]
2 9.6.13 "Replacing the bottom sensor" [}372]
9.6.8 Replacing the coil hose
Parts, equipment and tools
●
Coil hose for solenoid valve [03090227Sxx]
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
NOTICE
Replacing the strain reliefs
When working with the coil hose or the coiled cable, observe the technical information
"Smart Pin Support: Replacing Faulty Coiled Cables at the Pin Picker (Update)" [DE:
TI2013-09D04] [EN: TI2013-09E04].
► If needed, order the following additional parts:
Cover plate/SPS [03102482-xx]
Hose holder/SPS [03102480-xx]
Overview

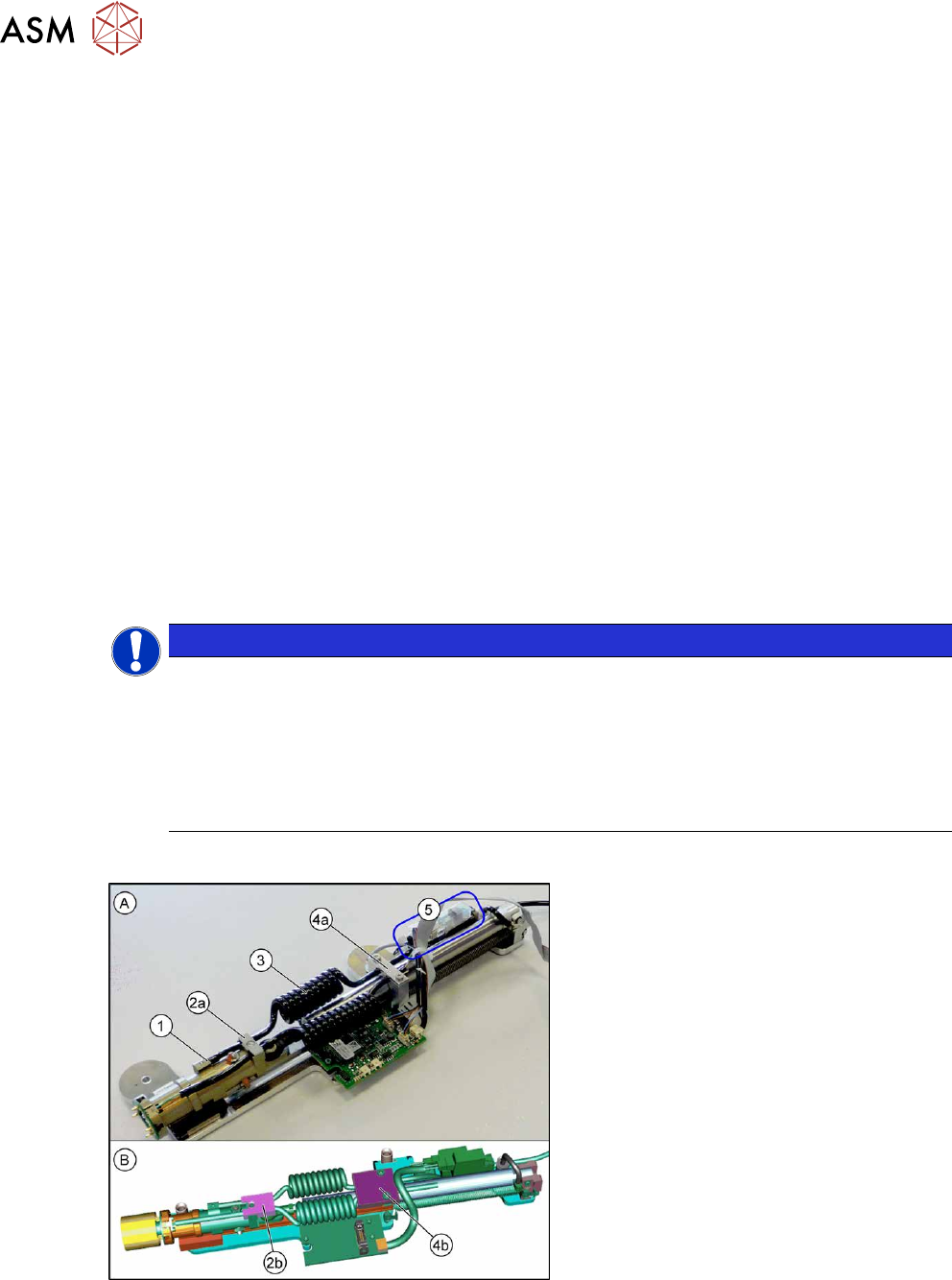

Fig.527: Coil hose – old and new version
A = Old version of Pin Picker
B = New version of Pin Picker
1. Pneumatic connection on return cylin-
der
2. Strain relief on return cylinder
2a: Old version
2b: New version
3. Coil hose
4. Strain relief on the pneumatic cylinder
guidance
4a: Old version
4b: New version
5. Valve terminal
9 Component feeding
9.6 Smart Pin Support
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 367
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the Pin Picker.
9.6.1 "Replacing the Pin Picker Assembly" [}357]
► Remove the strain relief on the back section of the cylinder.
► Remove the strain relief on the pneumatic cylinder guidance.
► Remove the coil hose on the pneumatic connection of the return cylinder.
Fig.528: Screws fastening the valve terminal
► Remove the two screws fastening the
(1)
valve terminal. These are on the
back of the Pin Picker.
► Remove the coil hose from the valve terminal.
Installation
Follow the removal instructions in reverse order for installation. Observe the following note:
► Make sure that the coil hose does not rub against anything. It is important that the coil hose
and the coiled cable do not touch when fully extended.
9.6.9 Replacing the coiled cable
Parts, equipment and tools
●
Coiled cable [03090273-xx]
●
Safety varnish red [00318197-xx]
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
NOTICE
Replacing the strain reliefs
When working with the coil hose or the coiled cable, observe the technical information
"Smart Pin Support: Replacing Faulty Coiled Cables at the Pin Picker (Update)" [DE:
TI2013-09D04] [EN: TI2013-09E04].
► If needed, order the following additional parts:
Cover plate/SPS [03102482-xx]
Hose holder/SPS [03102480-xx]
