2.7.3 PCBs Stationary Cameras
2.7.3.1 Vision LED Controller VLC25/33 GigE DTC
●
Vision LED Controller VLC33 GigE DTC [03117981-xx]
●
Vision LED Controller VLC25 GigE DTC [03117587-xx]
These two circuit boards are in principle identical. The VLC25 board however, also has the con-
nectors X21 and X22
The circuit boards are part of the stationary camera SST25/33 GigE.

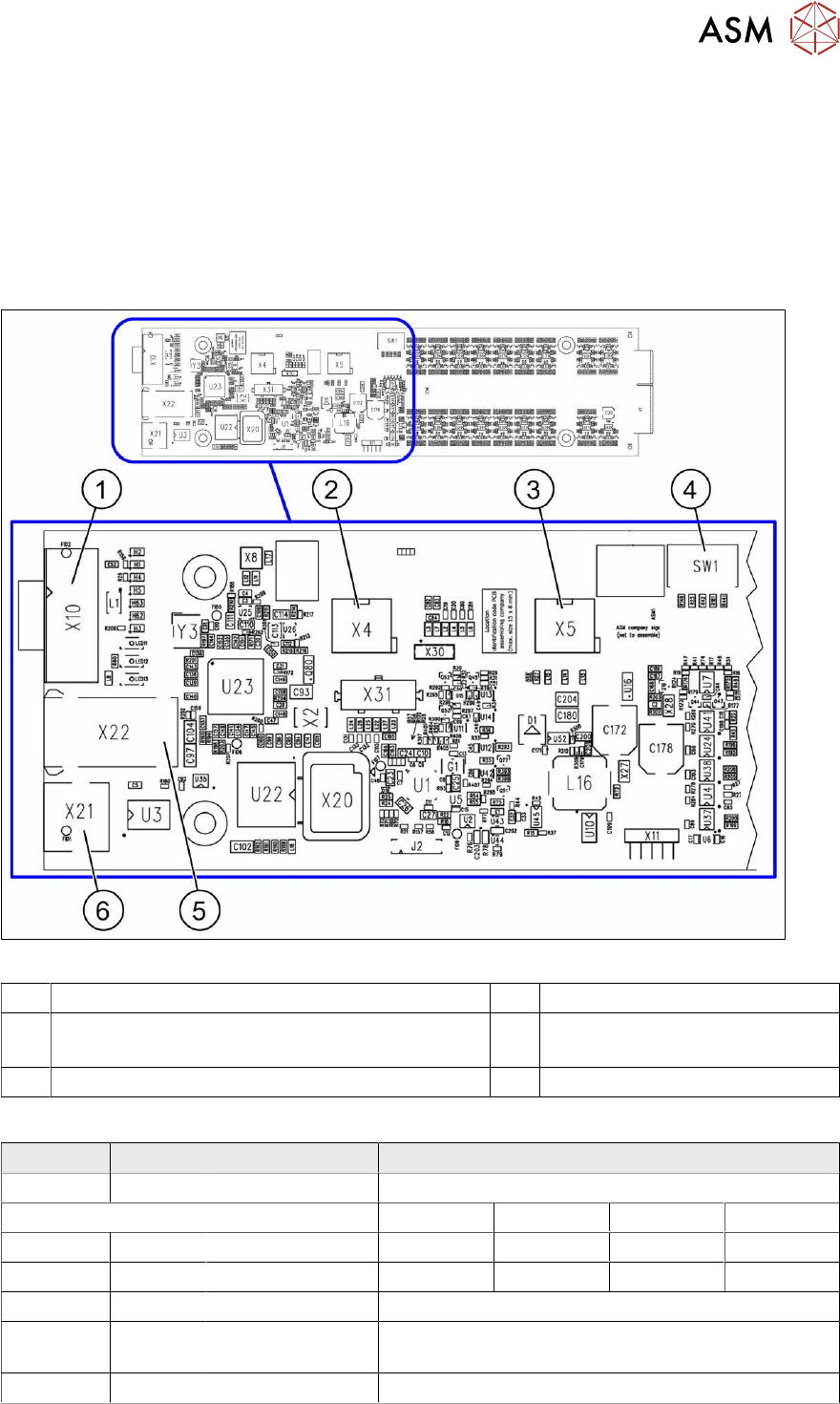

Fig.24: Vision LED Controller VLC25 GigE DTC [03117587-xx]
1 CAN bus 2 X4: Cable for power supply
3 X5: Cable for power supply, bridge to FC camera
(Not used in TX-Series)
4 DIP switch SW1 (see below)
5 Connector X22 (VLC25 only) 6 Connector X21 (VLC25 only)
DIP switch S1 [03117587-xx] [03117981-01]
Switch Status Signal name Description
S1.1 OFF VCU_CODE OFF: normal operation, ON: Reset
Location 1 Location 2 Location 3 Location 4
S1.2 ON/OFF GANTRY_ID_0 *) OFF ON OFF ON
S1.3 ON/OFF GANTRY_ID_1 *) OFF OFF ON ON
S1.4 OFF SMD_LED OFF: standard LED, ON: SMD LED
S1.5 OFF CAN_H OFF: with CAN terminator
ON: without CAN terminator
S1.6 ON/OFF CAN_GROUP ON: IC camera , OFF: FC camera
*) Set the location at which the stationary camera is fitted.
2 Basic Machine
2.8 Nozzle Changers and Reject Boxes
36 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
2.8 Nozzle Changers and Reject Boxes
See also
2 9.2 "COT insert" [}312]
2.8.1 Nozzle Changers and Nozzle Stations - Overview
Fig.25: Nozzle changer CPx short [03147925‑xx]
Nozzle changer basic structure (short
design) for all CPx placement heads
Fig.26: Nozzle changer, long [03147324‑xx]
Standard nozzle changer, long
[03147324‑xx] for six magazines
Fig.27: 20xx magazine with two and three fiducials
Magazine for 20 nozzles of 20 xx series
●
Magazine with two fiducials
[03135469‑xx]
●
Magazine with three fiducials
[03226630‑xx]
 NOTICE!
From SW713.1 the magazine will need to be recalibrated using three fiducials when changing
the magazine. This step will no longer be necessary from SW714.
.
Fig.28: Magazine 28xx [03065782-xx]
Magazine for nozzles of 28 xx series
2 Basic Machine
2.8 Nozzle Changers and Reject Boxes
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 37
Fig.29: 40xx/60xx magazine – with two and three fiducials
Magazine for nozzles of 40 xx/60 xx series
1. Magazine with two fiducials
[03101503‑xx]
2. Magazine with three fiducials
[03218226‑xx]
 NOTICE!
From SW713.1 the magazine will need to be recalibrated using three fiducials when changing
the magazine. This step will no longer be necessary from SW714.
.
Fig.30: Nozzle changer TwinStar
1. Nozzle changer TwinStar (long)
[03003138‑xx]
2. Nozzle changer TwinStar (short)
[03062452‑xx]
(for SIPLACE X4iS)
3. Magazine for 1 nozzle [03001807-xx]
4. Magazine for 2 nozzles [03005191-xx]
5. Nozzle changer in standard configura-
tion
1x magazine for 1 nozzle
3x magazine for 2 nozzles
