7 Conveyor 7.6 Conveyor Belt, Belt Drive and Hexagonal Shaft 202 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 Setting ► Use the software to move the conveyor sides into a position which allows you best access. …
7 Conveyor
7.6 Conveyor Belt, Belt Drive and Hexagonal Shaft
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 201
Overview of measuring points, measuring values and movable idler pulleys
Fig.265: Overview of measuring points and values
Side panel Side A Side B Side C Side D
1 Input area 182 +/- 18 182 +/- 18 142 +/- 14 142 +/- 14
2 PA1 49 +/- 5 49 +/- 5 49 +/- 5 49 +/- 5
3 Center 58 +/- 6 58 +/- 6 58 +/- 6 58 +/- 6
4 PA2 49 +/- 5 49 +/- 5 49 +/- 5 49 +/- 5
5 Output area 174 +/- 17 174 +/- 17 211 +/- 21 211 +/- 21
P Movable idler pulleys
7 Conveyor
7.6 Conveyor Belt, Belt Drive and Hexagonal Shaft
202 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
Setting
► Use the software to move the conveyor sides into a position which allows you best access. As
an alternative, you can loosen the clamps for the relevant sides in dual conveyors.
7.2 "Loosening the Conveyor Side Clamps" [}162]
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Check the belt tension at the relevant measuring point.
► Correct the belt tension when needed, using the movable idler pulley.
► Repeat the measurement 4 times.
7.6.2.2 Calculating the belt tension
NOTICE
For conveyor belt only
This calculation only applies to the conveyor belt.

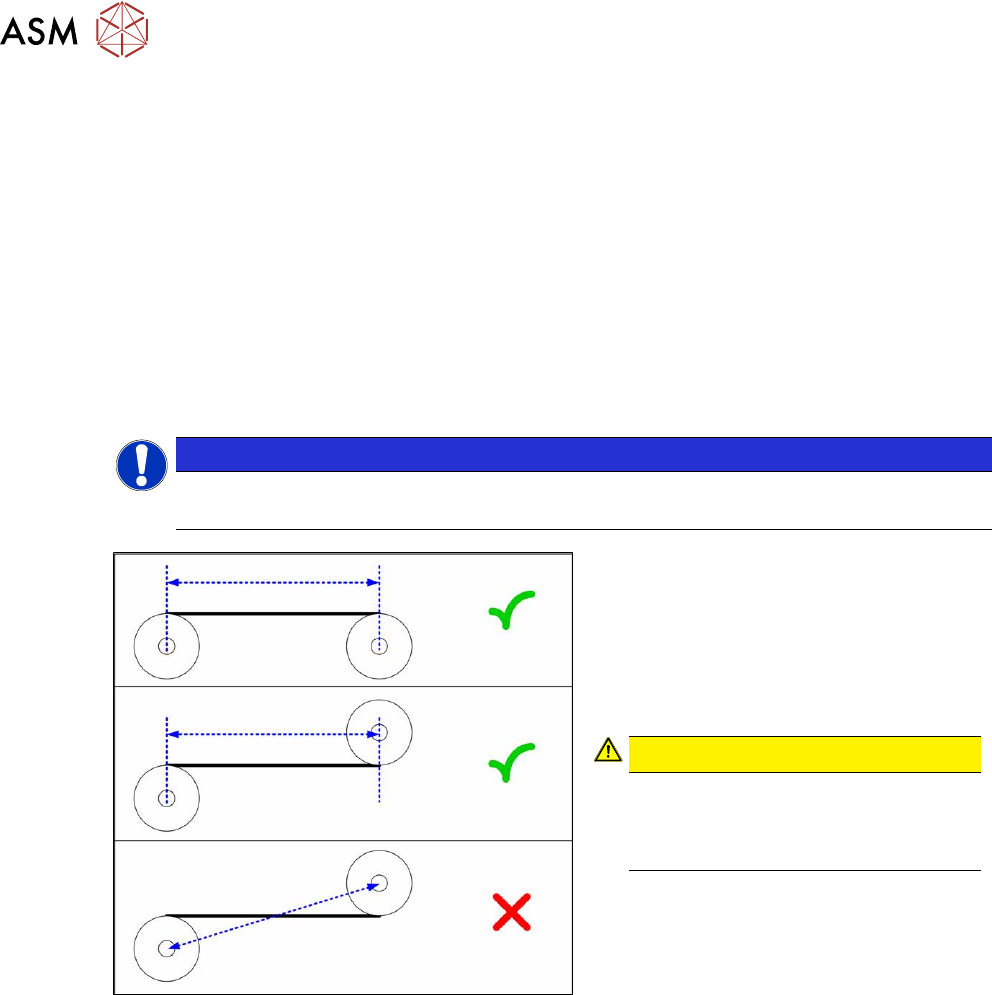

Fig.266: Measuring the distance
► Define the two idler pulleys between
which you want to set the belt tension.
If possible, do not use the movable
idler pulleys.
► Measure the distance between the two
idler pulleys parallel to the conveyor
belt.
CAUTION!
Note that it is not always possible to
simply measure the distance
between the idler pulleys from cen-
ter to center.
.
► Calculate the belt tension using the fol-
lowing formula:
20000 [Hz mm]
/ idler pulley spacing [mm]
The permissible tolerance is always plus/
minus 10% of the calculated value.
Example
Distance between the idler pulleys: 235mm
Calculation:
20000 / 235 = 85 (rounded, exactly 85.106…)
10 % of 85.106… = 9 (rounded, exactly 8.5106…)
Result:
Belt tension: 85 +/-9 Hz
7 Conveyor
7.6 Conveyor Belt, Belt Drive and Hexagonal Shaft
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 203
7.6.3 Replacing the tape drive
Parts, equipment and tools
●
Belt drive assembly SXa [03092315-xx]
●
Bearing for hexagonal shaft SXa (plastic bearing) – pack of 10 [03092024-xx]
Overview
Fig.267: Overview of tape drive
1. Tape drive
2. Washer under the top fastening screw
Removal/installation
► Replacement of the belt drive is identical to replacement of the conveyor drive. For more in-
formation about this read section 7.4.1
"Replacing the conveyor drive" [}173].
7.6.4 Replacing the drive shaft on the tape drive
Parts, equipment and tools
●
Synchronous shaft assembly SXa [03092383-xx]
●
Bearing for hexagonal shaft SXa (plastic bearing) – pack of 10 [03092024-xx]
Removal/installation
► Replacement of the drive shaft on the tape drive is follows the same procedure as replace-
ment of the toothed belt on the conveyor drive.
7.4.4 "Replacing the toothed belt (conveyor drive)" [}179]
