5. Troubleshooting 5 - 2 5-1 Points of caution and confirmation If an error occurs in the spindle drive unit, the warn ing or alarm will occu r. When a warning or alarm occurs, check the state while observing the followi…
5 - 1
5. Troubleshooting
5-1 Points of caution and confirmation ................................................................................................... 5-2
5-1-1 LED display when alarm or warning occurs .............................................................................. 5-3
5-2 Protective functions list of units ........................................................................................................ 5-4
5-2-1 List of alarms.............................................................................................................................. 5-4
5-2-2 List of warnings .......................................................................................................................... 5-6
5-3 Troubleshooting ................................................................................................................................ 5-7
5-3-1 Troubleshooting at power ON.................................................................................................... 5-7
5-3-2 Troubleshooting for each alarm No. .......................................................................................... 5-8
5-3-3 Troubleshooting for each warning No......................................................................................5-21
5-3-4 Troubleshooting the spindle system when there is no alarm or warning................................. 5-22
5. Troubleshooting
5 - 2
5-1 Points of caution and confirmation
If an error occurs in the spindle drive unit, the warning or alarm will occur. When a warning or alarm
occurs, check the state while observing the following points, and inspect or remedy the unit according
to the details given in this section.
<Point s of confirmation>
[1] What is the alarm code display?
[2] Can the error or trouble be repeated? (Check alarm history)
[3] Are the spindle motor and spindle drive unit temperature and ambient temperature normal?
[4] Are the power supply unit, spindle drive unit and motor grounded?
[5] Was the unit accelerating, decelerating or running at a set speed? What was the speed?
[6] Is there any difference during forward and backward run?
[7] Was there a momentary power failure?
[8] Did the trouble occur during a specific operation or command?
[9] At what frequency does the trouble occur?
[10] Is a load applied or removed?
[11] Has the drive unit been replaced, parts replaced or emergency measures taken?
[12] How many years has the unit been operating?
[13] Is the power supply voltage normal? Does the state change greatly according to the time band?
CAUTION
1. This power supply unit uses a large capacity electrolytic capacitor. When the
CHARGE lamp on the front of the power supply unit is lit, voltage is still
present at the PN terminal (TE2). Do not touch the terminal block in this
state.
2. Before replacing the unit, etc., always confirm that there is no voltage at the
PN terminal (TE2) with a tester or wait at least 15 minutes after turning the
main power OFF.
3. The conductivity in the unit cannot be checked.
4. Never carry out a megger test on the drive unit or power supply unit as the
unit could be damaged.
5. Troubleshooting
5 - 3

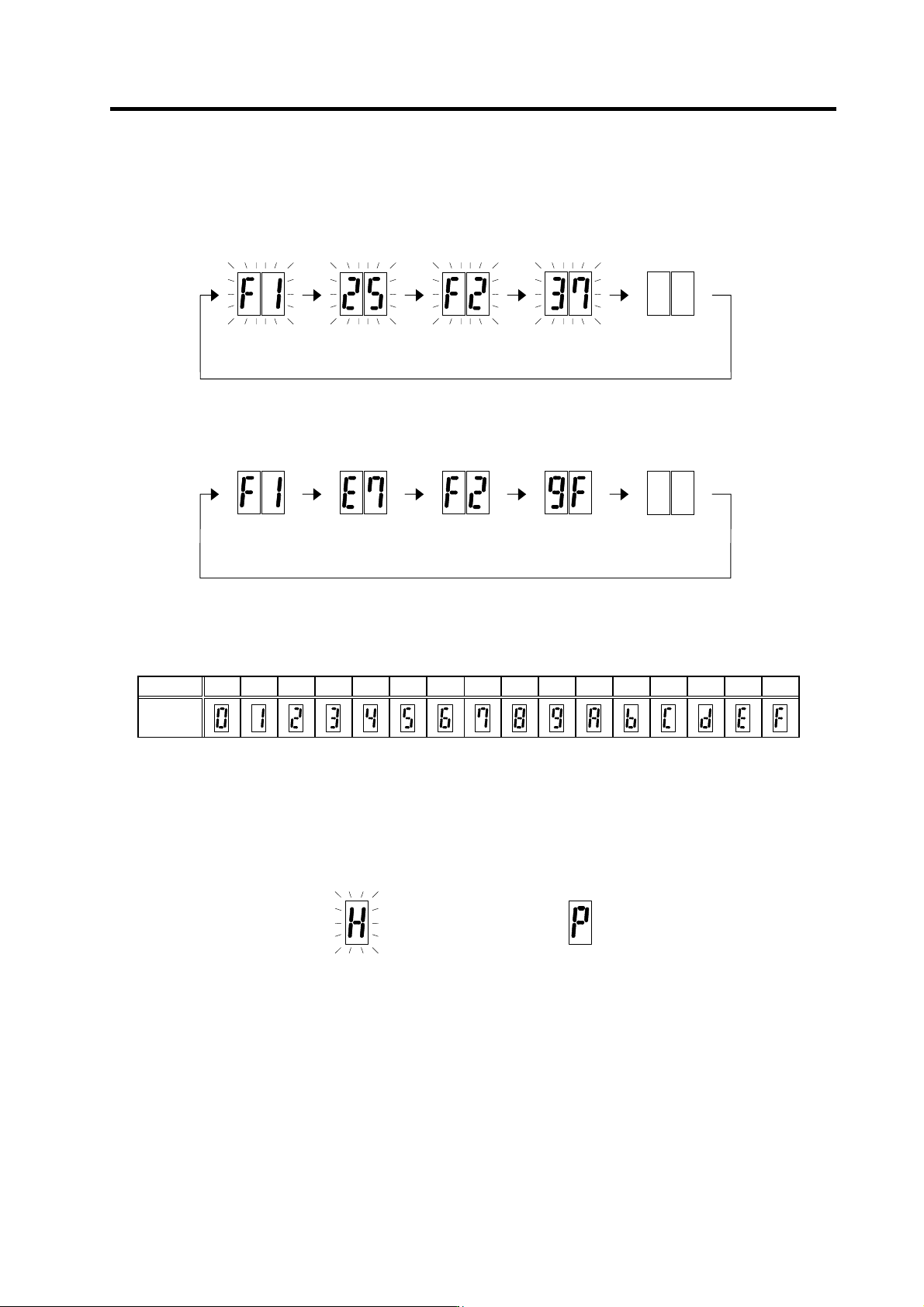

5-1-1 LED display when alarm or warning occurs
(1) Servo and spindle drive unit
The axis No. and alarm/warning No. alternate on the display. The display flickers when an alarm
occurs.
Numbers displayed on LED
No. 0 1 2 3 4 5 6 7 8 9 A B C D E F
LED
display
(2) Power supply unit
The alarm/warning No. is converted into a symbol and displayed. Refer to section "5-2-1 List of
alarms” and "5-2-2 List of warnings" for details. The display flickers when an alarm occurs.
Alarm 71 (flicker)
LED display
during power supply alarm
Warning E9
LED display
during power supply warning
LED displa
y
durin
g
servo alarm or spindle alarm
F1 (flicker)
F+axis No.
25 (flicker)
Alarm No.
Not lit F2 (flicker)
F+axis No.
37 (flicker)
Alarm No.
F1
F+axis No.
E7
Warning No.
Not lit F2
F+axis No.
9F
Warning No.
LED display during servo warning or spindle warning
