1. Installation 1 - 6 1-2-5 Heating value Each heating value is calculated with the following values. The values for the spindle drive unit are for a c ontinuous rated output. The value for the power supply unit includes…
1. Installation
1 - 5

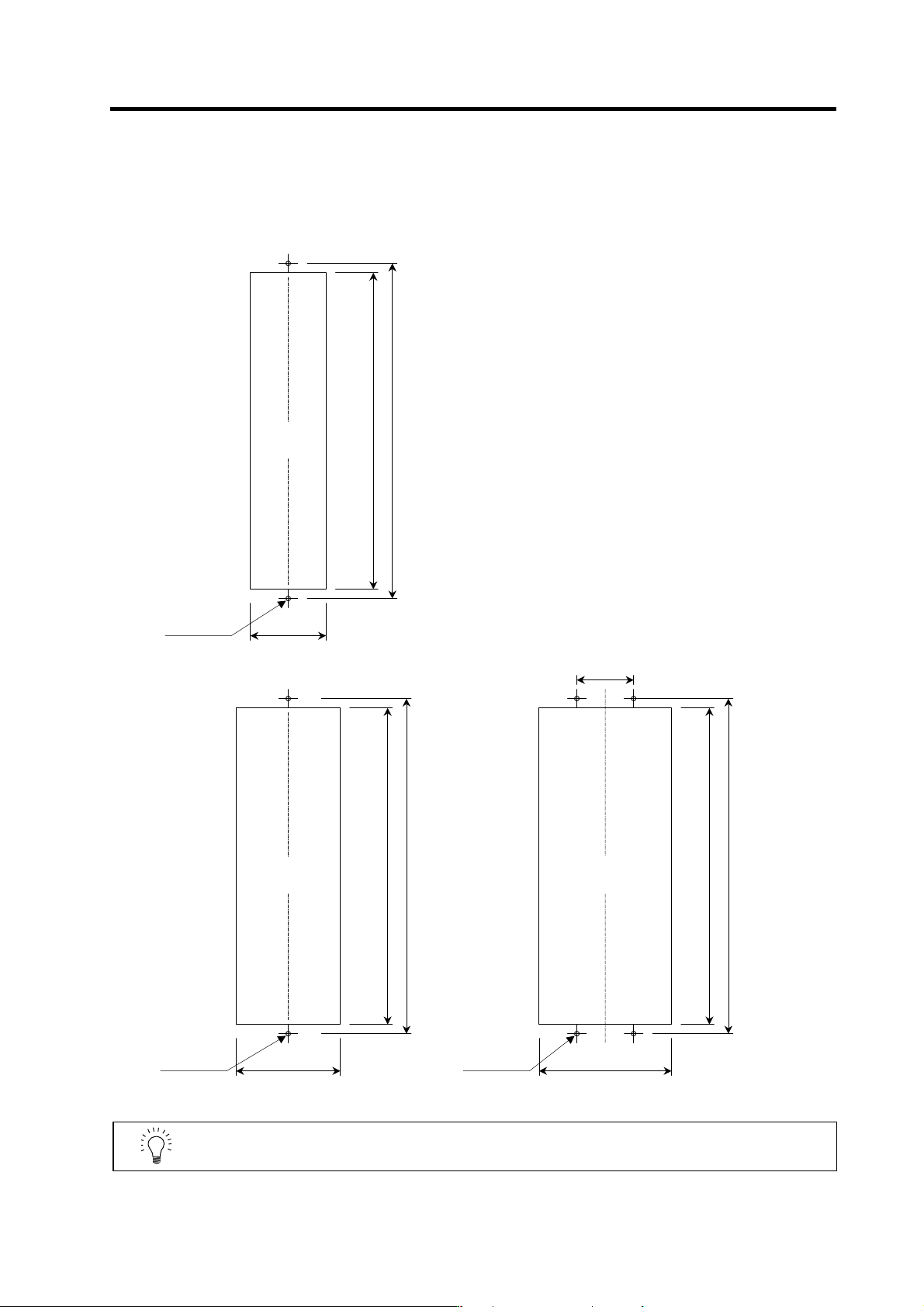

1-2-4 Panel installation hole work drawings (Panel cut drawings)
Prepare a square hole to match the unit width.
[Unit: mm]
342
360
82
2-M5 screw
Square hole
(Note 1)
342
360
112
2-M5 screw
Square hole
(Note 1)
342
360
142
4-M5 screw
60
Square hole
(Note 1)
Unit width: 90mm
Unit width: 120mm Unit width: 150mm
POINT
Attach p acking around the square hole to provide a seal.
1. Installation
1 - 6
1-2-5 Heating value
Each heating value is calculated with the following values.
The values for the spindle drive unit are for a continuous rated output. The value for the power supply
unit includes the AC reactor's heating value.
Servo drive unit Power supply unit
Heating amount
[W]
Heating amount
[W]
Type
MDS-C1-
Inside
panel
Outside
panel
Type
MDS-C1-
Inside
panel
Outside
panel
SPA- 55 31 76 CV- 37 21 34
SPA- 75 35 102 CV- 55 23 42
SPA-110 41 140 CV- 75 25 55
SPA-150 48 187 CV-110 26 99
SPA-185 62 280 CV-150 29 126
SPA-220 65 301 CV-185 33 162
SPA-260 80 403 CV-220 35 175
SPA-300 98 522 CV-260 40 220
CV-300 46 274
CV-370 54 346
(Example 1)
When using MDS-C1-CV-185, MDS-C1-SPA[]-185[]
Total heating value = (33+162) + (62+280)
= 537 [W]
Heating value in panel = (33) + (62)
= 95 [W]
1. Installation
1 - 7
1-2-6 Heat radiation countermeasures
In order to secure reliability and life, design the temperature in the panel so that the ambient
temperature of each unit is 55°C or less.
If heat accumulates at the top of the unit, etc., install a fan so that the temperature in the panel remains
constant.
(Note) Due to the structure, heat easily accumulates at the
top of the unit. Install a fan in the power distribution
panel to circulate the heat at the top of the unit.
Fan
(Ins ide panel)
Wind speed 2m/ s or more
