2. Wiring and Connection
2 - 6
(3) When using encoder orientation
B-AL Contactor
TYPE
MDS-C1-CV-□
TYPE
MDS-C1-SPA-□
NFB3
2. Wiring and Connection
2 - 7
2-2 Main circuit terminal block/control circuit connector
2-2-1 Names and applications of main circuit terminal block signals and control circuit
connectors
The following table shows the details for each terminal block signal.
Name Signal name Description
L1
.
L2
.
L3
Main circuit power
supply
Main circuit power supply input terminal
Connect a 3-phase 200VAC/200 to 230VAC, 50/60Hz power supply.
L11
L21
Control circuit power
supply
Control circuit power supply input terminal
Connect a single-phase 200VAC/200 to 230VAC, 50/60Hz power supply.
MC1
Contactor control
Contactor control terminal
The MC1 terminal has the same phase as L21. Connect to a different phase than the
phase connected to L21.
U
.
V
.
W
Motor output
(Single-axis unit)
Servo/spindle motor power output terminal
The servo/spindle motor power terminal (U, V, W) is connected.
LU
.
LV
.
LW
MU
.
MV
.
MW
Motor output
(Dual-axis unit)
Servo motor power output terminal (L-axis/M-axis)
The servo/spindle motor power terminal (U, V, W) is connected.
Protective grounding
(PE)
Grounding terminal
The servomotor/spindle motor grounding terminal is connected and grounded.
1. Always use one AC reactor per power supply unit. Failure to observe this
could lead to unit damage.
2. When sharing a breaker for several power supply units, of a short-circuit
fault occurs in a small capacity unit, the breaker could trip. This can be
hazardous, so do not share the breaker.
CAUTION
3. Be sure to use the breaker of proper capacity for each power supply unit.
2. Wiring and Connection
2 - 8

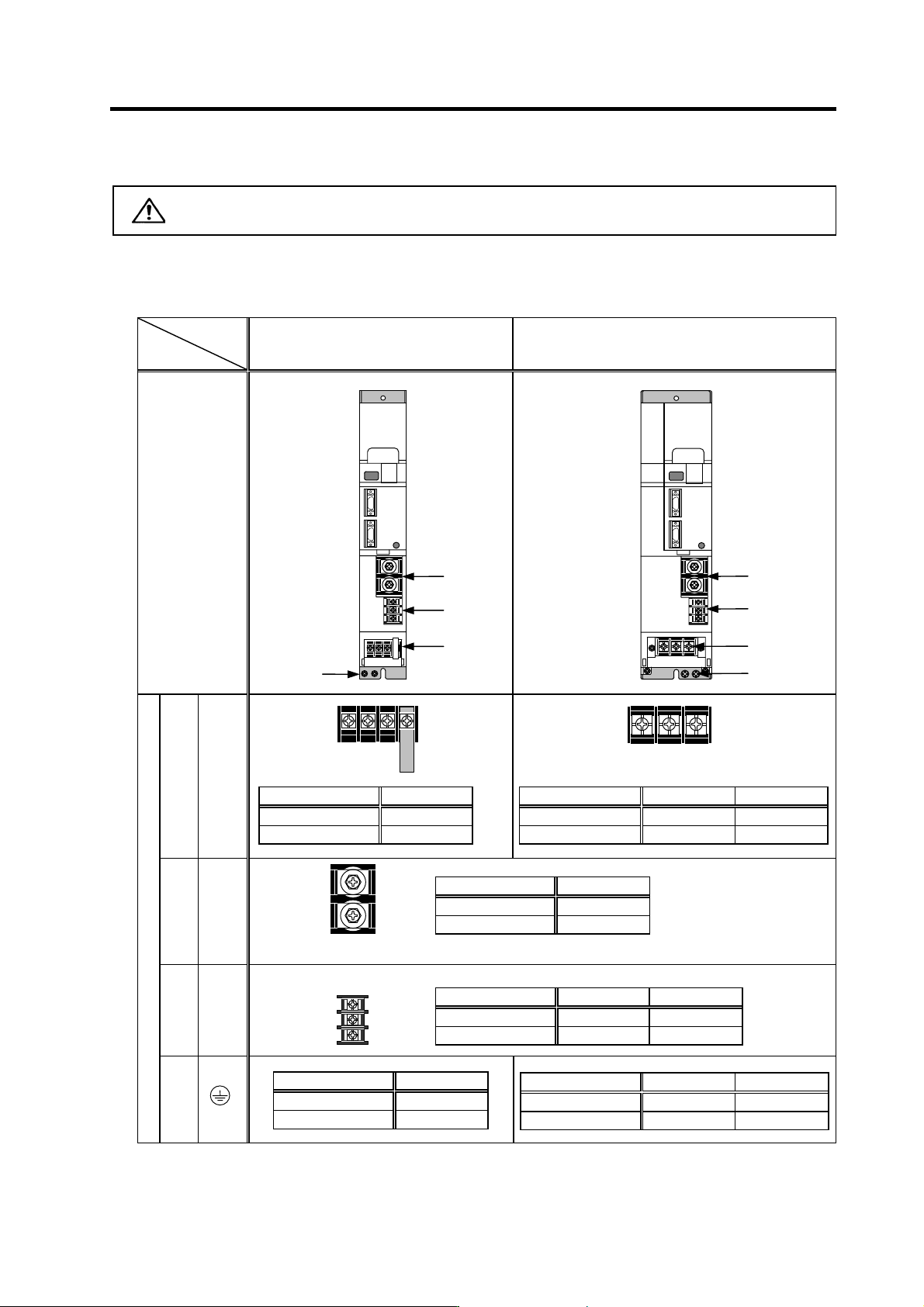

2-2-2 Connector pin assignment
CAUTION
Do not apply a voltage other than that specified in Instruction Manual on each
terminal. Failure to observe this item could lead to rupture or damage, etc.
(1) Main circuit terminal block
Power supply unit
Unit
Terminal
MDS-C1-CV-37 to 75 MDS-C1-CV-110 to 370
Terminal
position
[1] TE1
Compatible unit CV-37 to 75
Screw size
M4
Tightening torque
1.6Nm
Compatible unit CV-110 to 185 CV-220 to 370
Screw size
M5 M8
Tightening torque
3.37Nm 13.2Nm
[2] TE2
Compatible unit CV-37 to 370
Screw size
M6
Tightening torque
5.0Nm
[3] TE3
Compatible unit CV-37 to 75 CV-110 to 370
Screw size M4 M4
Tightening torque 2.0Nm 1.6m
Terminal specification/Pin assignment
[4]
Compatible unit CV-37 to 75
Screw size M4
Tightening torque 2.0Nm
Compatible unit CV-110 to 185 CV-220 to 370
Screw size M5 M8
Tightening torque 3.37Nm 13.2Nm
[2]
[3]
[1]
[4]
[2]
[3]
[4]
[1]
U V W
L+
L-
L11
L21
MC1
U V W
