Appendix 3. EMC Installation Guidelines
A3 - 13
MX13 Series 3-phase high attenuation noise filter for 200V
Features
•
Perfect for mounting inside control panel:
New shape with uniform height and depth
dimensions
• Easy mounting and maintenance work:
Terminals are centrally located on the
front
• Complaint with NC servo and AC servo
noise:
High attenuation of 40dB at 150KHz
• Safety Standards:
UL1283, CSA22.2 No.8, EN133200
• Patent and design registration pending
Specifications
Type
Item
MX13030 MX13050 MX13100 MX13150
1 Rated voltage (AC)
3-phase 250VAC (50/60Hz)
2 Rated current (AC)
30A 50A 100A 150A
3
Test voltage (AC for one minute across
terminal and case)
2500VAC (100mA) at 25°C, 70% RH
4
Insulation resistance (500VDC across
terminal and case)
100MΩ min. at 25°C, 70% RH
5 Leakage current (250V, 60Hz)
3.5 mA max. 8 mA max.
6 DC resistance
30 mΩ max. 11 mΩ max. 5.5 mΩ max. 3.5 mΩ max.
7 Temperature rise
30°C max
8 Working ambient temperature
–25°C to +85°C
9 Working ambient humidity
30% to 95% RH (non condensing)
10 Storage ambient temperature
–40°C to +85°C
11 Storage ambient humidity
10% to 95% RH (non condensing)
12 Weight (typ)
2.8kg 3.9kg 11.5kg 16kg
(Note) This is the value at Ta≤50°C.
Refer to the following output derating for Ta>50°C.
Contact: Densei-lambda Co., Ltd. Telephone: 03-3447-4411 (+81-3-3447-4411)
Fax: 03-3447-7784 (+81-3-3447-7784)
http://www.densei-lambda.com
Appendix 3. EMC Installation Guidelines
A3 - 14
Example of using MX13 Series
This is a noise filter with the same dimensions as the MDS-D/DH series drive unit depth (200mm) and
height (380mm).
This unit can be laid out easily in the device by arraigning it in a row with the servo unit.
As with the servo unit, the terminals are arranged on the front enabling ideal wire lead-out.
Refer to the following figure for details.
Noise filter (MX13 Series)
Servo unit
200
380
Wire to 3-phase power supply
Noise filter input terminal
Noise filter output terminal
Servo input terminal
Wire from noise filter to servo
Example of noise terminal voltage attenuation
Output derating
Noise terminal voltage
[
dBuV
]
EMI data for independent control panel
(with six-axis servo unit mounted)
Noise terminal voltage
EMI data for control panel + noise filter
(MX13030)
[dBuV]
A
mbient temperature Ta (°C)
Current (%)
Appendix 3. EMC Installation Guidelines
A3 - 15

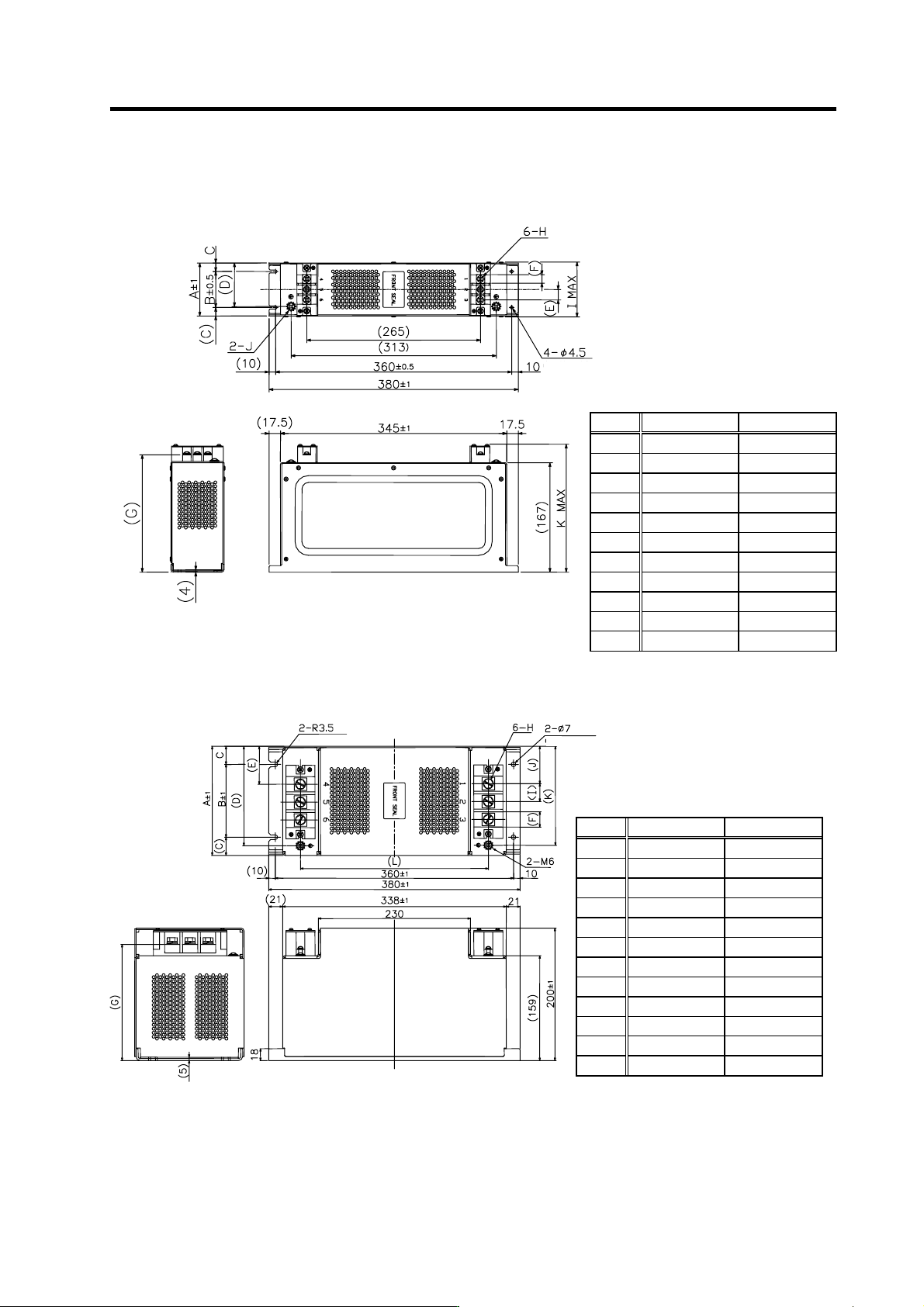

Outline dimension drawings
MX13030, MX13050
MX13100, MX13150
Model MX13030 MX13050
A 66 81
B 45 55
C 10.5 13
D 50 67
E 13 16
F 10 13
G 177 179
H M4 screw M6 screw
I 70 85
J M4 screw M6 screw
K 195 200
(Installation hole)
[Unit: mm]
Model MX13100 MX13150
A 130 165
B 90 110
C 20 27.5
D 115 150.5
E 37.5 57.5
F 18 23
G 174 176
H M6 screw M8 screw
I 21 27
J 37.5 56.5
K 115 149.5
L 276 284
(Installation hole)
(Installation hole)
[Unit: mm]
