Appendix 1. Cable and Connector Specifications A1 - 2 Appendix 1-1 Selection of cable Appendix 1-1-1 Cable wire and assembly (1) Cable w ire The following shows the specifications and processi ng of the wire used in each…
A1 - 1
Appendix 1. Cable and Connector Specifications
Appendix 1-1 Selection of cable.............................................................................................................A1-2
Appendix 1-1-1 Cable wire and assembly ..........................................................................................A1-2
Appendix 1-2 Cable connection diagram ...............................................................................................A1-4
Appendix 1-3 Connector outline dimension drawings............................................................................A1-8
Appendix 1. Cable and Connector Specifications
A1 - 2
Appendix 1-1 Selection of cable
Appendix 1-1-1 Cable wire and assembly
(1) Cable wire
The following shows the specifications and processing of the wire used in each cable. Manufacture
the cable using the following recommended wire or equivalent parts.
Wire characteristics Recommended
wire model
(Cannot be directly
ordered from
Mitsubishi
Electric Corp.)
Finished
outside
diameter
Sheath
material
No. of
pairs
Config-
uration
Conductor
resistance
Withstand
voltage
Insulation
resistance
Heat
resistant
temperature
Applica-
tion
UL20276 AWG28
10pair
6.1mm PVC 10
7
strands/
0.13mm
222Ω/km
or less
AC350/ 1min
1MΩ/km
or more
80°C
NC unit
communi-
cation cable
A14B2343 (Note 1) 7.2mm PVC 6
40
strands/
0.08mm
105Ω/km
or less
AC500/ 1min
1500MΩ/k
m or more
105°C
Detector
cable
2
(0.3 mm
2
)
60
strands/
0.08mm
63Ω/km
or less
TS-91026 (Note 2) 11.6mm PVC
10
(0.2 mm
2
)
40
strands/
0.08mm
95Ω/km
or less
AC750V/
1min
60MΩ/km
or more
60°C
Detector
cable
(Cable length:
20m or more)
(Note 1) Junko Co. (Dealer: Toa Denki)
(Note 2) BANDO ELECTRIC WIRE (http: //www.bew.co.jp)

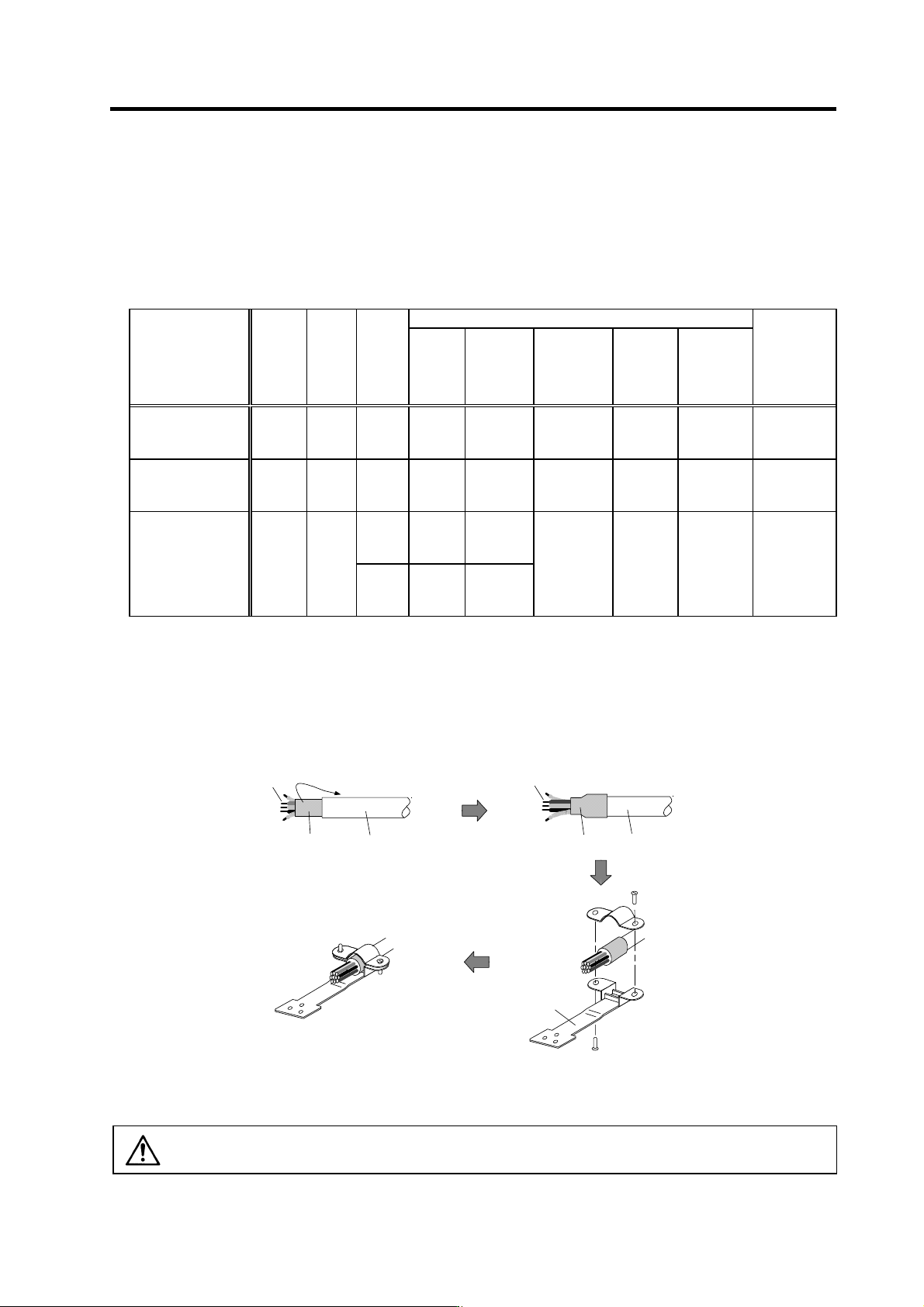

(2) Cable assembly
Assemble the cable as shown in the following drawing, with the cable shield wire securely
connected to the ground plate of the connector.
Ground plate
Shield
(external conductor)
Sheath
Shield
(external conductor)
Sheath
Core wire
Core wire
CAUTION
Do not mistake the connection when manufacturing the detector cable. Failure to
observe this could lead to faults, runaway or fires.
Appendix 1. Cable and Connector Specifications
A1 - 3
(3) Cable protection tube (noise countermeasure)
If influence from noise is unavoidable, or further noise resistance is required, selecting a flexible
tube and running the signal cable through this tube is effective. This is also an effective
countermeasure for preventing the cable sheath from being cut or becoming worn.
A cable clamp (MS3057) is not installed on the detector side, so be particularly careful of broken
wires in applications involving bending and vibration.
Connector
Supplier Tube
Drive unit side Installation screws Motor detector side
Nippon Flex
Control Corp.
FBA-4
(FePb wire braid sheath)
RBC-104 (straight)
RBC-204 (45°)
RBC-304 (90°)
G16
G16
G16
RCC-104-CA2022
DAIWA DENGYO
CO., LTD
Hi-flex
PT #17 (FePb sheath)
PSG-104 (straight)
PLG-17 (90°)
PS-17 (straight)
Screw diameter ø26.4
Screw diameter ø26.4
PF1/2
PDC20-17
Sankei Works
Purika Tube
PA-2 #17 (FePb sheath)
BC-17 (straight) Wire tube screws : 15 PDC20-17
(Note) None of the parts in this table can be ordered from Mitsubishi Electric Corp.
