2. Wiring and Connection
2 - 23
2-6 Peripheral control wiring
2-6-1 Input interface
(1) Digital input interface: CN10 to 12
(Special input: 3 points, general-purpose input: 12 points, multi-points orientation command: 12
points, digital speed command: 12 points)
Select from the following.
1) Connecting with contact 2) Connecting with photo coupler
NC(PC) side
+24V
Drive unit side
4.7KΩ
CES
1 to 3
Current capacity
5.1m A or more
NC(PC) side
+24V
Drive unit side
4.7K
Ω
CES
1 to 3
Current
capacity
5.1mA or more
3) Connecting with open emitter 4) Connecting with open collector
NC(PC) side
+24V
Drive unit side
4.7K
Ω
CES
1 to 3
Current
capacity
5.1m A or
more
NC(PC) side
+24V
Drive un it si de
4.7K
Ω
CES 1 to 3
Current
capacity
5.1mA or
more
(Note 1) A +24V(±10%) power supply is required for this unit. The required maximum power supply capacity is 26W. DC stabilized
power supply must be used here.
(Note 2) Common for dedicated/general-purpose input is CES1, common for digital speed command is CES2, and common for
multi-point orientation command is CES3. Each command is electrically separated one another.
Thus, when using CES1, 2 or 3, each of them has to be connected to one of the signals (power supply, etc.).
(Note 3) Filter time constant at the input section is 5 to 15ms.
(Note 4) When running the motor on a trial basis, (when only "machine ready complete", "forward run" and "reverse run" are input
and all the other 24V I/O are not used.), external +24V power supply is exceptionally not necessary; internal +24V power
supply will do. In this case, use CN10-7 pin for +24V, CN10-10 pin for RG (24G).
(Note 5) Power supply unit's CN23 is a similar circuit; however, the resistance is not 4.7kΩ but 2kΩ.
2. Wiring and Connection
2 - 24
(2) Encoder (1024p/rev) input interface
When connecting an encoder, +5V must be supplied from the drive unit side.
Power does not need to be supplied from the NC(PC) side.

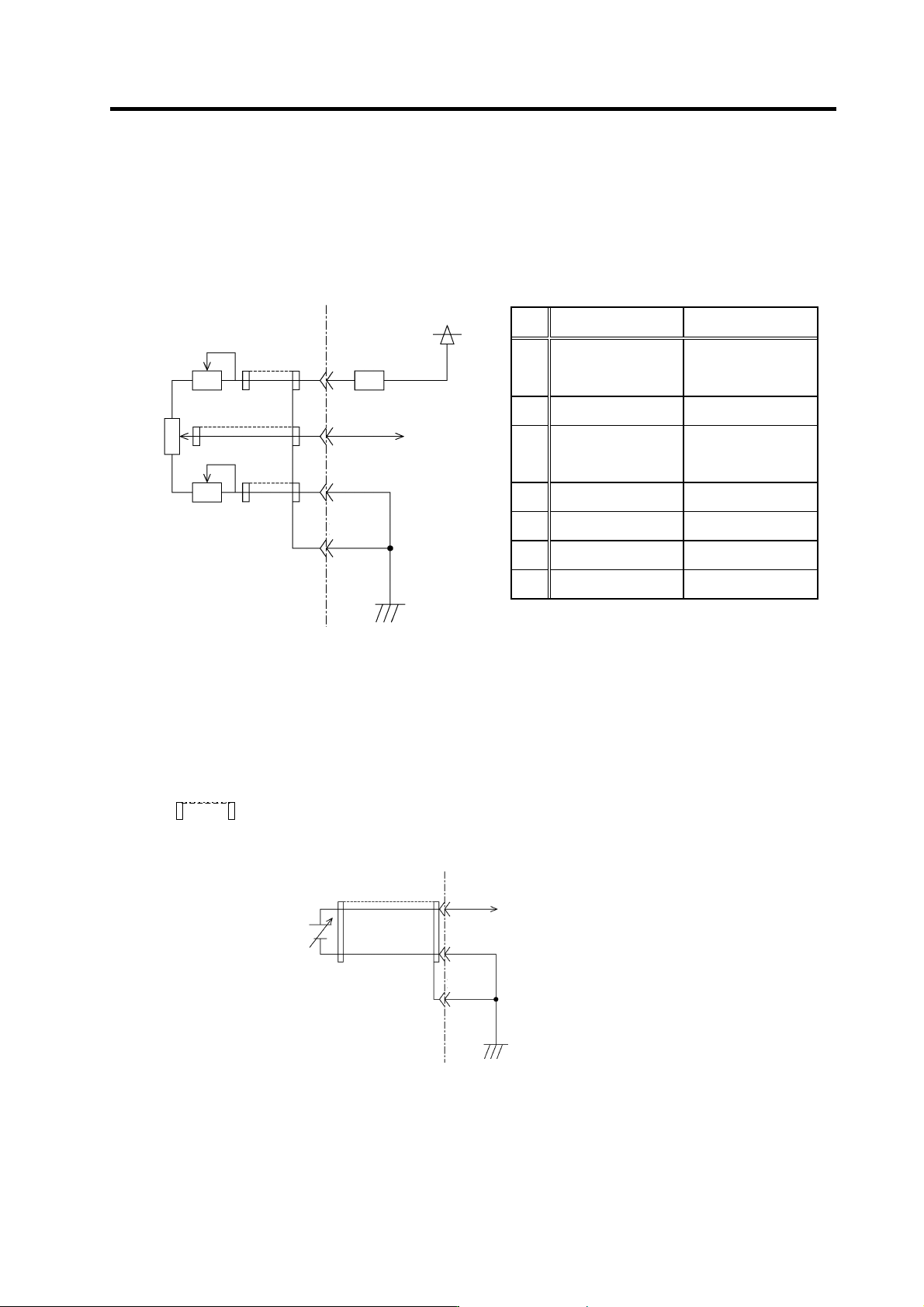

(3) Analog input interface
Analog speed
command input
Override input
VR1
Upper speed limit
setting
Not required
VR2 Analog speed setting Override s peed setting
VR3
Lower speed limit
setting
Not required
A RP (CN8A-6) OR3 (CN8A-16)
B SE1 (CN8A-7) OR2 (CN8A-17)
C SE2 (CN8A-8) OR1 (CN8A-18)
D SES (CN8A-5) ORS (CN8A-15)
Input impedance of input pin B (SE1, OR2):
Approx. 10K
Ω
NC(PC) side Drive unit side
1K
Ω
+15V
680
Ω
A
B
C
D
VR1
VR3
1K
Ω
VR2
2K
Ω
(Note 1) The figure above indicates the case of unipolar input. (Bipolar input cannot be created only with the power supply from the
drive unit side.)
(Note 2) +15V power supply is output from the input pin A (RP, OR3) via the resistance.
(Note 3) Input voltage tolerable value of the input pin B (SE1, OR2) is as follows.
SE1: ±12V
OR2: 0 to +12V
(Note 4) Make sure to use a shielded cable for the cable connecting to each input pin and provide with shield treatment.
(
represents for a shield.)
(Note 5) If there is a separate analog speed input command (or override input) power supply, connection will be as shown below.
NC(PC) side
Drive unit side
B
C
D
2. Wiring and Connection
2 - 25
2-6-2 Output interface

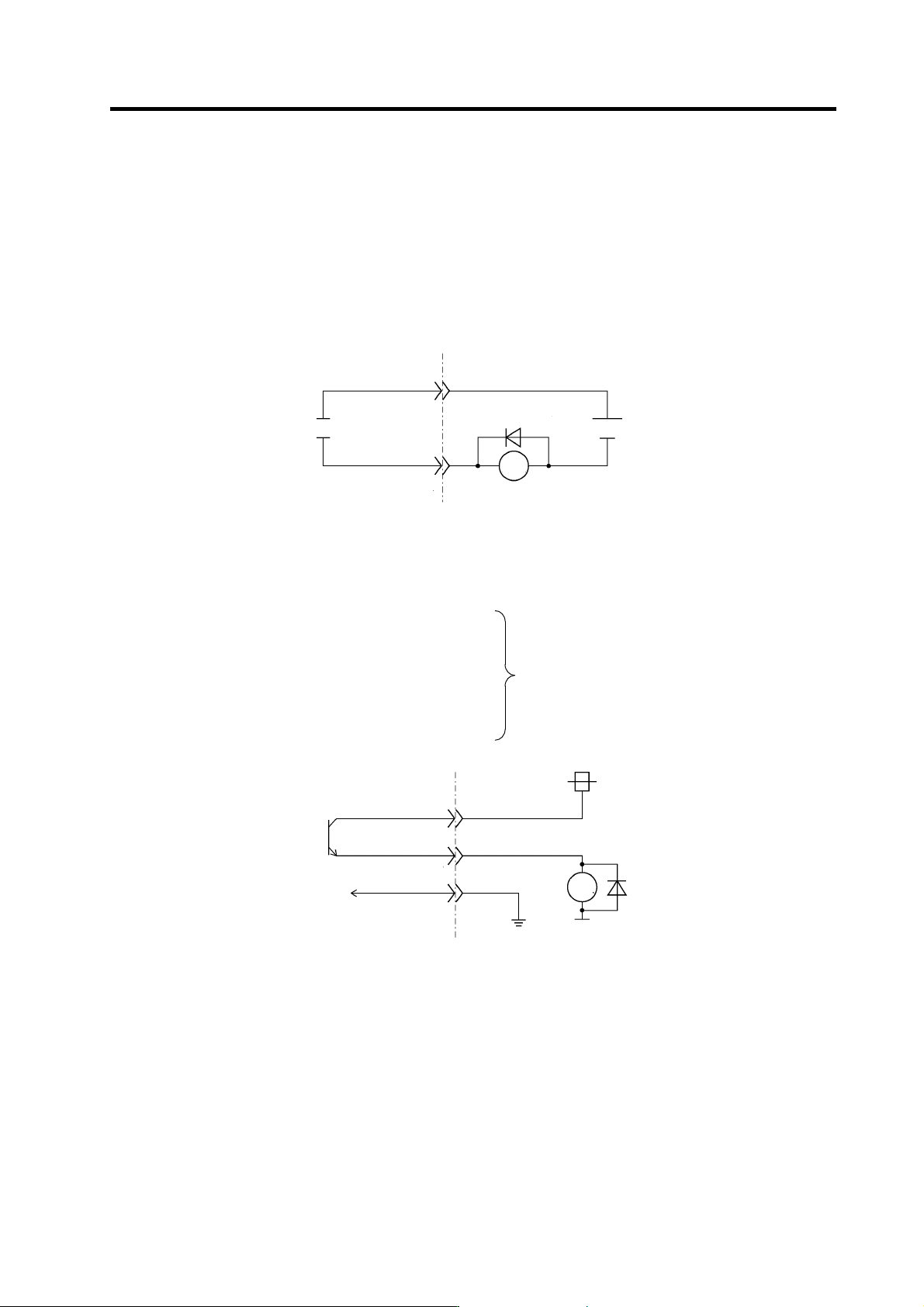

(1) External contact output circuit
The drive unit fault output signal FA(CN12-10) and FC(CN12-20) are the outputs.
Use the contacts with the rating indicated below.
24VDC 0.3A or less
Chattering 5ms or less
Compact relay is used. When connecting an inductive load such as relay, preferably use a DC
compact relay, and connect a flywheel diode in parallel with the coil as shown in the figure below.
NC(PC) side Drive unit side
FC(CN12-20)
FA(CN12-20)
Flywheel diode
24V
RA
(2) Open emitter output circuit
The followings are the open emitter outputs.
General-purpose output 1: OUT1 (CN11-7)
General-purpose output 2: OUT2 (CN11-17)
General-purpose output 3: OUT3 (CN11-8)
General-purpose output 4: OUT4 (CN11-18)
General-purpose output 5: OUT5 (CN11-9)
General-purpose output 6: OUT6 (CN11-10)
General-purpose output 7: OUT7 (CN11-20)
General-purpose output 8: OUT8 (CN9A-8)
Output transistor rating
M54630P TR array
Tolerable voltage 24VDC or less
Tolerable current 50mA or less
(per 1 output)
NC(PC) side Drive unit side
RG(CN10-10)
24V
RA
+24V(CN10-17)
OUT1 to 8
