Appendix 1. Cable and Connector Specifications
A1 - 8

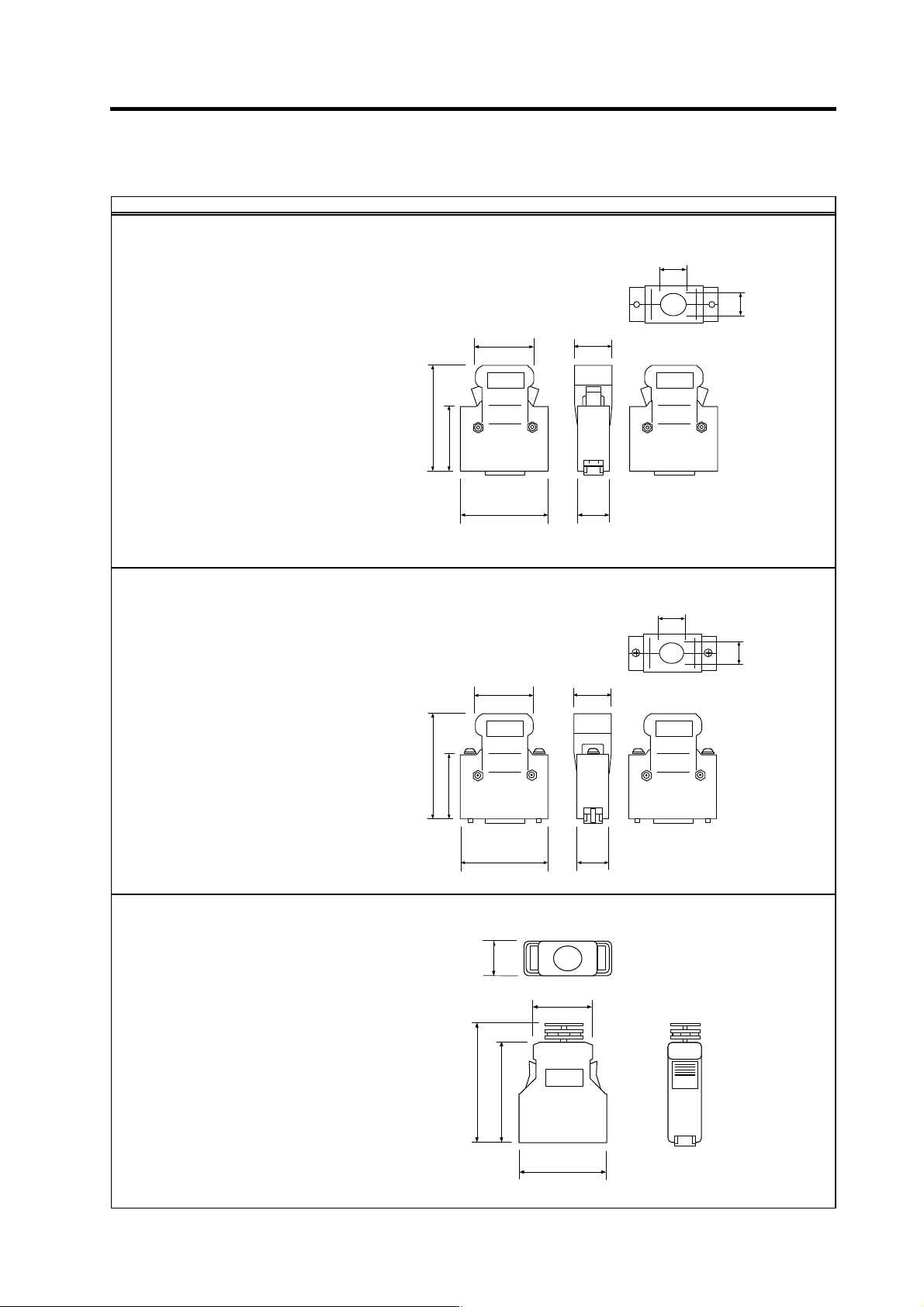

Appendix 1-3 Connector outline dimension drawings
Connector for CN2 Servo drive unit
Manufacturer: 3M (Ltd.)
<Type>
Connector: 10120-3000VE
Shell kit: 10320-52F0-008
[Unit: mm]
22.0
39.0
33.3
12.7
14.0
23.8
12.0
10.0
Manufacturer: 3M (Ltd.)
<Type>
Connector: 10120-3000VE
Shell kit: 10320-52A0-008
[Unit: mm]
22.0
3
9
.
0
33.3
2
3
.
8
12.7
14.0
12.0
1
0
.
0
Manufacturer: 3M (Ltd.)
<Type>
Connector: 10120-6000EL
Shell kit: 10320-3210-000
Because this connector is an
integrated molding part of the cable,
it is not an option setting in the
connector set.
The terminal connector (A-TM) also
has the same outline.
[Unit: mm]
20.9
29.7
33.0
42.0
11.5
22.0
14.0
12.0
33.3
12.7
39.0
23.8
10.0
12.0
10.0
14.0
22.0
33.3
12.7
23.8
39.0
11.5
42.0
33.0
20.9
29.7
A2 - 1
Appendix 2. Compliance to EC Directives
Appendix 2-1 Compliance to EC Directives ...........................................................................................A2-2
Appendix 2-1-1 European EC Directives............................................................................................A2-2
Appendix 2-1-2 Cautions for EC Directive compliance ......................................................................A2-2
Appendix 2. Compliance to EC Directives
A2 - 2
Appendix 2-1 Compliance to EC Directives
Appendix 2-1-1 European EC Directives
In the EU Community, the attachment of a CE mark (CE marking) is mandatory to indicate that the basic
safety conditions of the Machine Directives (issued Jan. 1995), EMC Directives (issued Jan. 1996) and
the Low-voltage Directives (issued Jan. 1997) are satisfied. The machines and devices in which the
servo and spindle drive are assembled are the targets for CE marking.
(1) Compliance to EMC Directives
The servo and spindle drive are components designed to be used in combination with a machine or
device. These are not directly targeted by the Directives, but a CE mark must be attached to
machines and devices in which these components are assembled. The next section "EMC
Installation Guidelines", which explains the unit installation and control panel manufacturing
method, etc., has been prepared to make compliance to the EMC Directives easier.
(2) Compliance to Low-voltage Directives
The MDS-C1-SPA Series units are targeted for the Low-voltage Directives. An excerpt of the
precautions given in this specification is given below. Please read this section thoroughly before
starting use.
A Self-Declaration Document has been prepared for the EMC Directives and Low-voltage
Directives. Contact Mitsubishi or your dealer when required.
Appendix 2-1-2 Cautions for EC Directive compliance
Use the Low-voltage Directive compatible parts for the servo/spindle drive and servo/spindle motor. In
addition to the items described in this instruction manual, observe the items described below.
(1) Configuration
Use a type B (AC/DC detectable type) breaker
Isolating
transformer
Circuit breaker
AC reactor
Electromagnetic
contactor
Drive unit
CB
MC
M
(2) Environment
Use the units under an Overvoltage Category II and Pollution Class of 2 or less environment as
stipulated in IEC60664.
These units do not provide protection against electric shock and fire sufficient for the requirements
of the Low-voltage Directive and relevant European standards by themselves, so provide additional
protection (refer to 5.2.4 and 7.1.6.1 of EN50178)
Drive unit Motor
During
operation
Storage
During
transportation
During
operation
Storage
During
transportation
Ambient
temperature
0°C to 55°C -15°C to 70°C -15°C to 70°C
Ambient
temperature
0°C to 40°C -15°C to 70°C -15°C to 70°C
Humidity
90%RH or
less
90%RH or
less
90%RH or less Humidity
80%RH or
less
90%RH or
less
90%RH or
less
Altitude
1000m or
less
1000m or
less
13000m or
less
Altitude
1000m or
less
1000m or
less
13000m or
less
