2. Wiring and Connection 2 - 2 DANGER 1. Wiring work must be done by a qualified technician. 2. Wait at least 15 minutes after tu rning the power OFF and check the voltage with a tester, etc., before starting wiring. Fai…
2 - 1
2. Wiring and Connection
2-1 Connection diagram ........................................................................................................................... 2-3
2-1-1 Part system connection diagram.................................................................................................. 2-3
2-1-2 Detailed connection diagram........................................................................................................ 2-4
2-2 Main circuit terminal block/control circuit connector .......................................................................... 2-7
2-2-1 Names and applications of main circuit terminal block signals and control circuit connectors .. 2-7
2-2-2 Connector pin assignment .......................................................................................................... 2-8
2-3 Drive unit connection........................................................................................................................ 2-11
2-4 Motor and detector connection ........................................................................................................ 2-14
2-4-1 Connection of the spindle motor ............................................................................................... 2-14
2-5 Connection of power supply............................................................................................................. 2-17
2-5-1 Power supply input connection ................................................................................................. 2-17
2-5-2 Connecting the grounding cable ............................................................................................... 2-20
2-5-3 Main circuit control .................................................................................................................... 2-21
2-6 Peripheral control wiring................................................................................................................... 2-23
2-6-1 Input interface............................................................................................................................ 2-23
2-6-2 Output interface......................................................................................................................... 2-25
2-6-3 Spindle coil changeover ............................................................................................................ 2-27
2-6-4 Wiring of an external emergency stop....................................................................................... 2-30
2. Wiring and Connection
2 - 2
DANGER
1. Wiring work must be done by a qualified technician.
2. Wait at least 15 minutes after turning the power OFF and check the voltage
with a tester, etc., before starting wiring. Failure to observe this could lead to
electric shocks.
3. Securely ground the drive units and spindle motor.
4. Wire the drive units and spindle motor after installation. Failure to observe this
could lead to electric shocks.
5. Do not damage, apply forcible stress, place heavy items on the cables or get
them caught. Failure to observe this could lead to electric shocks.
6. Always insulate the power terminal connection section. Failure to observe
this could lead to electric shocks.
CAUTION
1. Correctly and securely perform the wiring. Failure to do so could result in
runaway of the spindle motor or injury.
2. Do not mistake the terminal connections.
Failure to observe this item could lead to ruptures or damage, etc.
3. Do not mistake the polarity ( + ,
- ). Failure to observe this item could lead to
ruptures or damage, etc.

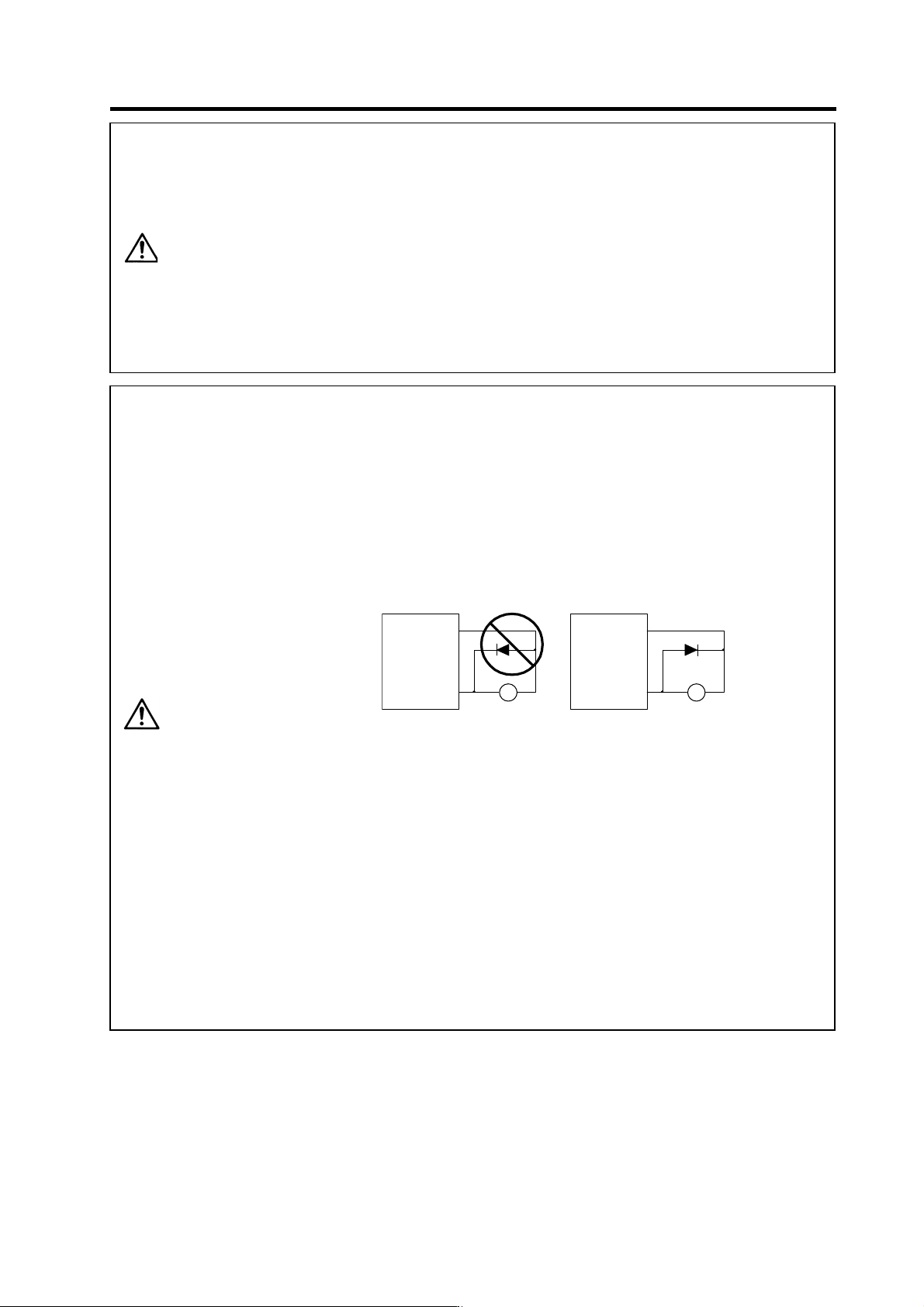

4. Do not mistake the direction of the diodes for the surge absorption installed
on the DC relay for the general-purpose output and contactor (magnetic
contactor) control. The signal might not be output when a failure occurs.
COM
(24VDC)
Control output
signal
Servodrive unit
RA
COM
(24VDC)
Servodrive unit
RA
Control out put
signal
5. Electronic devices used near the drive units may receive magnetic
obstruction. Reduce the effect of magnetic obstacles by installing a noise
filter, etc.
6. Do not install a phase advancing capacitor, surge absorber or radio noise
filter on the power line (U, V, W) of the spindle motor.
7. Do not modify this unit.
8. The half-pitch connector (CN10, etc.) on the front of the drive units have the
same shape. If the connectors are connected incorrectly, faults could occur.
Make sure that the connection is correct.
9. When grounding the motor, connect to the protective grounding terminal on
the drive units, and ground from the other protective grounding terminal.
(Use one-point grounding) Do not separately ground the connected motor
and drive unit as noise could be generated.
2. Wiring and Connection
2 - 3
2-1 Connection diagram

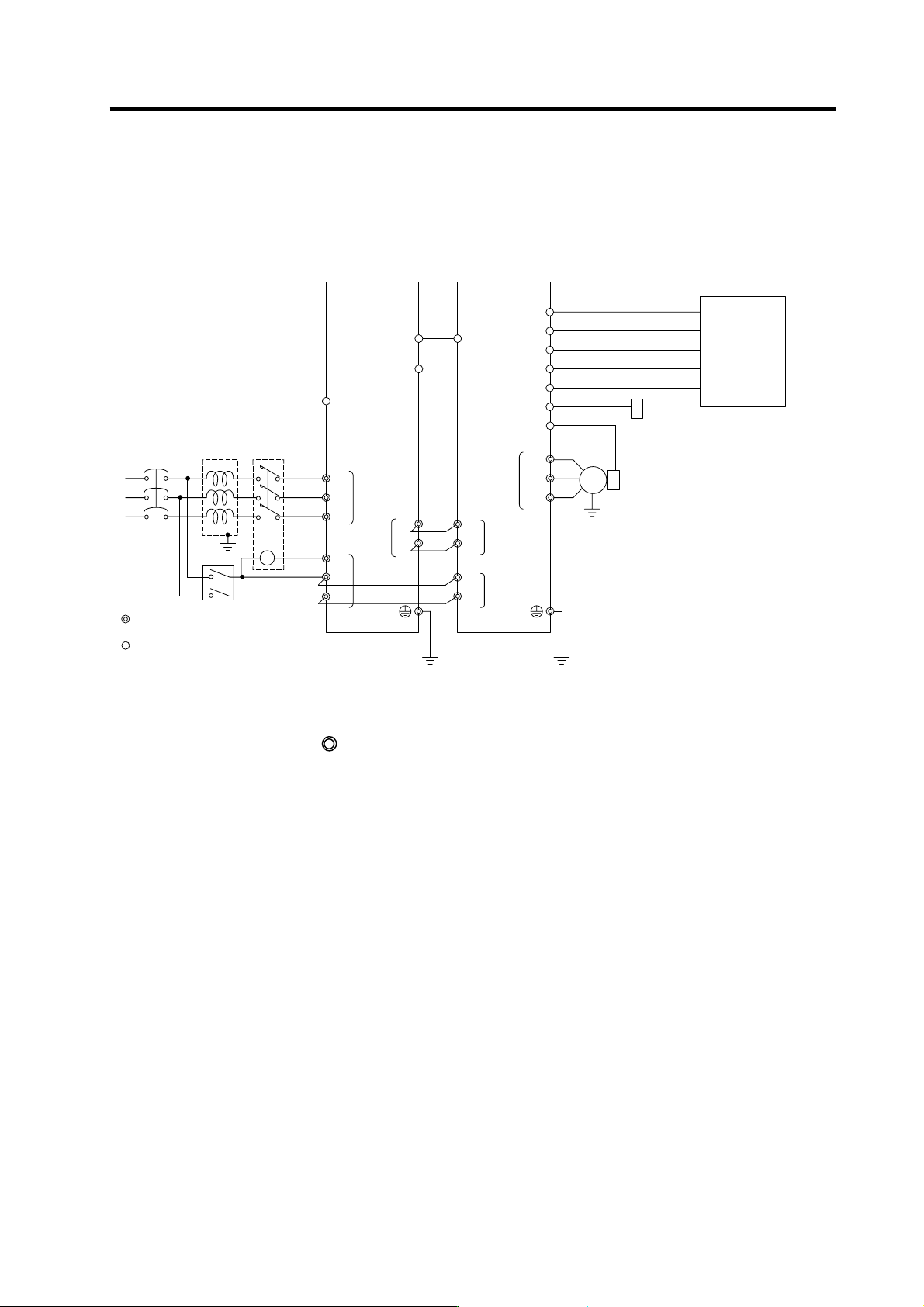

2-1-1 Part system connection diagram
MC1
External emergency stop input
T
S
R
Contacto
r
No-fuse
breaker
Ground
: Main circuit
: Control circuit
CN23
CN4
L1
L2
L3
L11
TE3
TE1
CN9
CN12
L+
L-
U
V
W
CN6
CN5
TE1
PLG
Spindle drive unitPower supply unit
Spindle
motor
CN4
TE3
TE2
L+
L-
L11
L21
TE2
AC
reactor
Ground
Ground
L21
CN9A
CN8A
MC
Breake
r
CN11
CN10
ENC
Spindle side detector
S-analog speed command, pulse feedback
Speed
•
load meter, serial I/F
Digital speed command,
general-purpose
•
error output
Orientation position command,
General-purpose output
General purpose, general-purpose output
NC
PC
DIO
Meter
Personal compu te
r
(Note 1) The connection method will differ according to the used motor.
(Note 2) The main circuit (
) and control circuit ({) are safely separated.
