2. Wiring and Connection 2 - 9 Spindle drive unit Unit Terminal MDS-C1-SPA-55 to 300 Terminal position MDS-C1-SPA- 55 to 185 220 to 300 Screw size M5 M8 Tightening torque 3.2Nm 13.2Nm [1] TE1 Compatible unit All capacity…
2. Wiring and Connection
2 - 8
2-2-2 Connector pin assignment
CAUTION
Do not apply a voltage other than that specified in Instruction Manual on each
terminal. Failure to observe this item could lead to rupture or damage, etc.
(1) Main circuit terminal block
Power supply unit
Unit
Terminal
MDS-C1-CV-37 to 75 MDS-C1-CV-110 to 370
Terminal
position
[1] TE1
Compatible unit CV-37 to 75
Screw size
M4
Tightening torque
1.6Nm
Compatible unit CV-110 to 185 CV-220 to 370
Screw size
M5 M8
Tightening torque
3.37Nm 13.2Nm
[2] TE2
Compatible unit CV-37 to 370
Screw size
M6
Tightening torque
5.0Nm
[3] TE3
Compatible unit CV-37 to 75 CV-110 to 370
Screw size M4 M4
Tightening torque 2.0Nm 1.6m
Terminal specification/Pin assignment
[4]
Compatible unit CV-37 to 75
Screw size M4
Tightening torque 2.0Nm
Compatible unit CV-110 to 185 CV-220 to 370
Screw size M5 M8
Tightening torque 3.37Nm 13.2Nm
[2]
[3]
[1]
[4]
[2]
[3]
[4]
[1]
U V W
L+
L-
L11
L21
MC1
U V W
2. Wiring and Connection
2 - 9
Spindle drive unit
Unit
Terminal
MDS-C1-SPA-55 to 300
Terminal
position
MDS-C1-SPA- 55 to 185 220 to 300
Screw size M5 M8
Tightening torque 3.2Nm 13.2Nm
[1] TE1
Compatible unit All capacity
Screw size M6
Tightening torque 5.0Nm
[2] TE2
Compatible unit All capacity
Screw size M4
Tightening torque 2.0Nm
[3] TE3
Terminal specification/Pin assignment
[4]
The PE screw size is the same as TE1.
L+
L-
L11
L21
[
2
]
[
3
]
[1]
[4]
U V W
2. Wiring and Connection
2 - 10

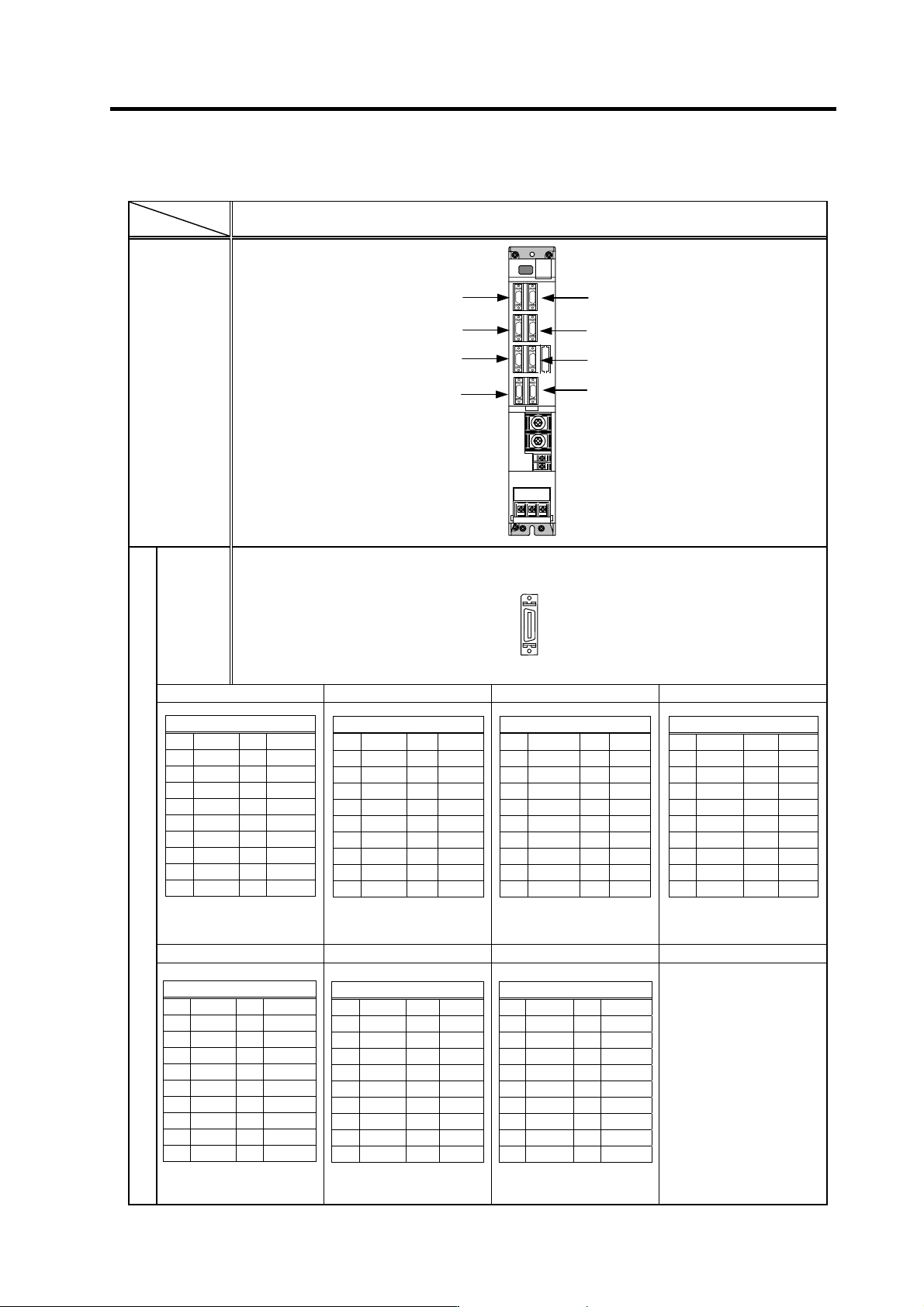

(2) Control circuit connector
Unit
Terminal
MDS-C1-SPA-55 to 300
Connector
position
[1] CN11
[2] CN12
[3] CN9A
[4] CN4
[5] CN5
[6] CN6
[7] CN10
[8] CN8A
[5] CN5 [6] CN6 [9] CN8A [3] CN9A
[7] CN10 [1] CN11 [2] CN12
Connector specifications
[1]
[3]
[5]
[2]
[4]
[9]
[6]
[7]
Pi
n
N
o.
N
o.
1
No.10
N
o.
1
1
No.20
Pin assignment
1 GND 11 GND
2 RD 12 RD*
3 MOH 13 RG
4 SD 14 SD*
5 P15 15 N15
6 PA 16 RA
7 PB 17 RB
8 PZ 18 -
9 P24 19 -
10 - 20 -
Pin assignment
1 GND 11 GND
2 MA 12 MA*
3 MB 13 MB*
4 MZ 14 MZ*
5 P15B 15 GND
6 MSA 16 MSC
7 LSA 17 LSC
8 - 18 -
9 - 19 P5
10 P5 20 P5
Pin assignment
1 GND 11 GND
2 SYA 12 SYA*
3 SYB 13 SYB*
4SYZ 14SYZ*
5 SES 15 ORS
6RP 16OR3
7 SE1 17 OR2
8 SE2 18 OR1
9- 19-
10 - 20 -
Pin assignment
1 GND 11 GND
2 DR 12 DX
3 CLK 13 FSX
4 P5 14 -
5 RX 15 TX
6 - 16 -
7 IU 17 IV
8 OUT8 18 P5
9 SM0 19 LM0
10 - 20 -
Pin assignment
1 REDY 11 SRN
2 SRI 12 IN1
3 IN2 13 IN3
4 IN4 14 IN5
5 IN6 15 IN7
6 IN8 16 IN9
7 - 17 +24V
8 IN10 18 IN11
9 IN12 19 CES1
10 RG 20 OUT6C
Pin assignment
1 1H 11 2H
2 3H 12 4H
3 5H 13 6H
4 7H 14 8H
5 9H 15 10H
6 11H 16 12H
7 OUT1 17 OUT2
8 OUT3 18 OUT4
9 OUT5 19 CES3
10 OUT6 20 OUT7
Pin assignment
1 R1 11 R2
2 R3 12 R4
3 R5 13 R6
4 R7 14 R8
5 R9 15 R10
6 R11 16 R12
7 OUT1C 17 OUT2C
8 OUT3C 18 OUT4C
9 OUT5C 19 CES2
10 FA 20 FC
