Figure 22. S/S Refresh, HX/HX Refresh Processor Display Architecture R Display—Intel ® Core ™ , Xeon ™ 6300 And Xeon ™ E 2400 Processors 13 th Generation Intel ® Core ™ , Intel ® Core ™ 14 th Generation, Intel ® Core ™ P…
Table 59. Display Ports Availability and Link Rate for PX - Processor Lines
Port PX-Processor Line
4
DDI A
eDP* up to HBR3
MIPI DSI up to 2.5 Gbps
DP* up to HBR3
1
HDMI* up to 5.94 Gbps
DDI B
eDP* up to HBR3
MIPI DSI up to 2.5 Gbps
DP* up to HBR3
1
HDMI* up to 5.94 Gbps
TCP 0
DP* up to UHBR20
HDMI* up to 5.94 Gbps
TCP 1
DP* up to UHBR20
HDMI* up to 5.94 Gbps
TCP 2
DP* up to UHBR20
HDMI* up to 5.94 Gbps
TCP 3 N/A
Notes: 1. On board re-timer is required.
2. HBR3 - 8.1 Gbps lane rate.
3. HBR2 - 5.4 Gbps lane rate.
4. UHBR20 - 20 Gbps lane rate.
5. For non Type-C ports DisplayPort maximum supported link rate is HBR3.
Table 60. Display Ports Availability and Link Rate for S/S Refresh, HX/HX Refresh -
Processor Lines
Port S/S Refresh, HX - Processor Lines
DDI A
eDP* up to HBR3
DP* up to HBR3
1
HDMI* up to 5.94 Gbps
DDI B
DP* up to HBR3
1
HDMI* up to 5.94 Gbps
DDI C
DP* up to HBR3
1
HDMI* up to 5.94 Gbps
DDI D
DP* up to HBR3
1
HDMI* up to 5.94 Gbps
DDI E
DP* up to HBR3
1
HDMI* up to 5.94 Gbps
Notes: 1. On board re-timer is required.
2. HBR3 - 8.1 Gbps lane rate.
3. HBR2 - 5.4 Gbps lane rate.
R
Intel
®
Core
™
, Xeon
™
6300 And Xeon
™
E 2400 Processors—Display
13
th
Generation Intel
®
Core
™
, Intel
®
Core
™
14
th
Generation, Intel
®
Core
™
Processor (Series 1) and (Series 2), Intel
®
Xeon
™
E
2400 Processor and Intel
®
Xeon
™
6300 Processor
Datasheet, Volume 1 of 2 May 2025
154 Doc. No.: 743844, Rev.: 015

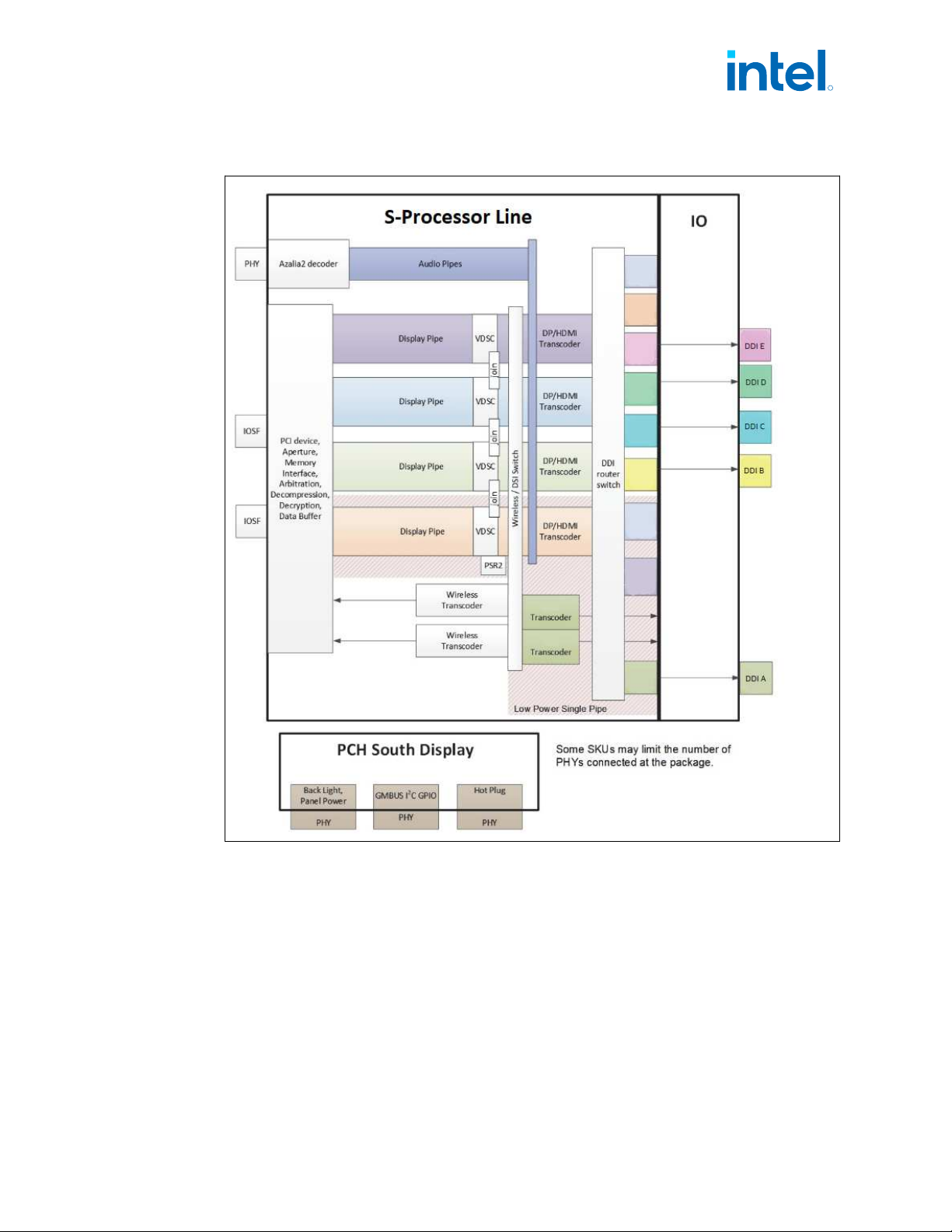

Figure 22. S/S Refresh, HX/HX Refresh Processor Display Architecture
R
Display—Intel
®
Core
™
, Xeon
™
6300 And Xeon
™
E 2400 Processors
13
th
Generation Intel
®
Core
™
, Intel
®
Core
™
14
th
Generation, Intel
®
Core
™
Processor (Series 1) and (Series 2), Intel
®
Xeon
™
E
2400 Processor and Intel
®
Xeon
™
6300 Processor
May 2025 Datasheet, Volume 1 of 2
Doc. No.: 743844, Rev.: 015 155

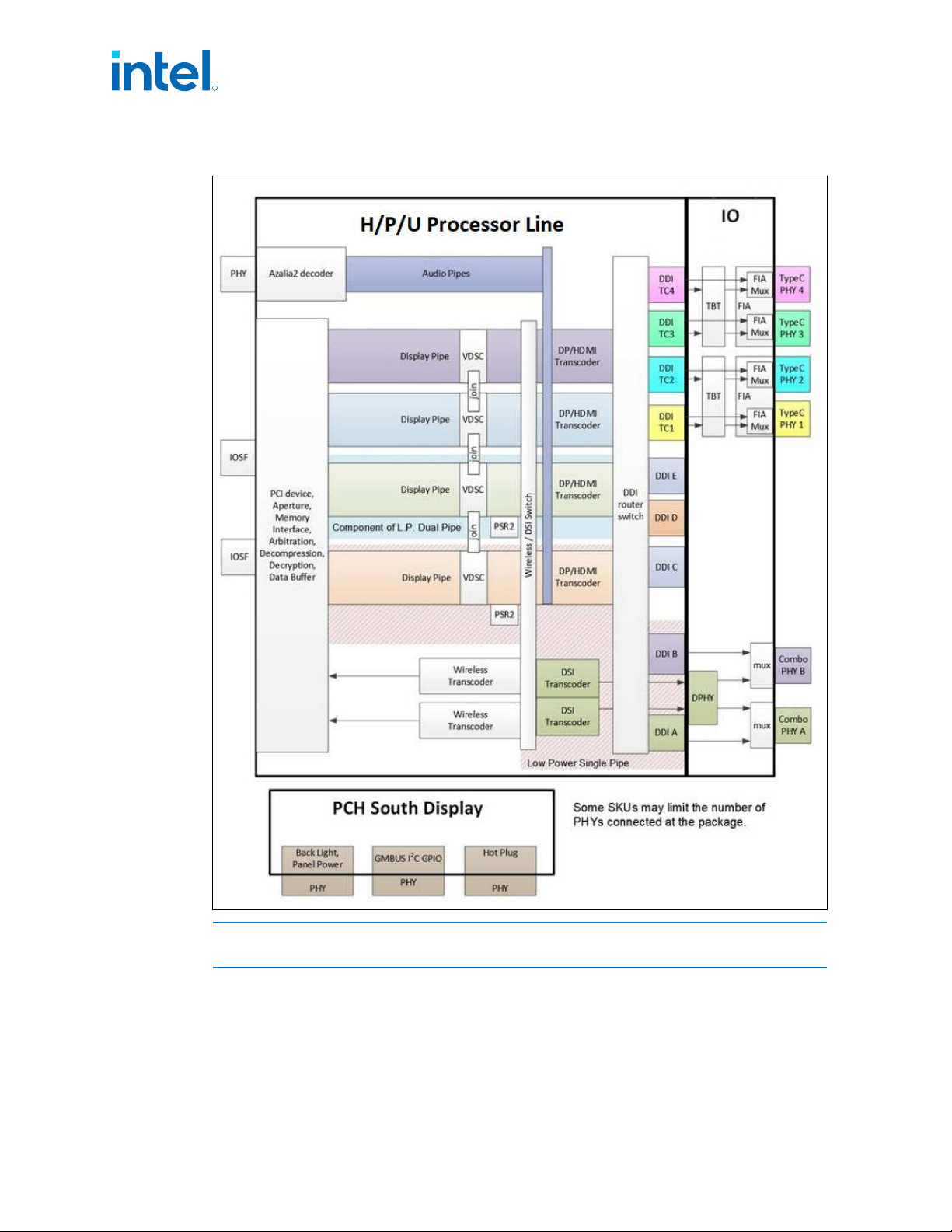

Figure 23. P, PX/U/U Refresh/H/H Refresh Processor Display Architecture
NOTE
For port availability in each of the processor lines, refer to the above table.
