Processor Line 1 Package Processor Base Power (a.k.a TDP) 2, 3 Processor IA P-Cores Processor IA E-Cores Graphics Configuration Platform Type U Refresh-Processor 2P +8E BGA1744 15W 2 8 96EU 1-Chip PX-Processor 6P+8E BGA1…
• S -Refresh, HX -Refresh Processor when referring to Intel
®
Core
™
14th
Generation.
• U-Refresh Processor when referring to Intel
®
Core
™
Processor ("Series 1") and
("Series 2").
• H-Refresh Processor when referring to Intel
®
Core
™
Processor ("Series 2").
• E Processor when referring to Intel
®
Xeon
®
E 2400 Processor.
• E- Refresh Processor when referring to Intel
®
Xeon
®
6300 Processor.
The following table describes the different processor lines:
Table 1. Processor Lines
Processor Line
1
Package
Processor
Base Power
(a.k.a
TDP)
2, 3
Processor
IA P-Cores
Processor
IA E-Cores
Graphics
Configuration
Platform Type
S-Processor LGA1700 35W 8 16 32EU 2-Chip
S-Processor LGA1700 65W 8 16 32EU 2-Chip
S-Processor LGA1700 125W 8 16 32EU 2-Chip
S-Processor LGA1700 150W 8 16 32EU 2-Chip
S-Processor LGA1700 35W 8 8 32EU 2-Chip
S-Processor LGA1700 65W 8 8 32EU 2-Chip
S-Processor LGA1700 35W 6 0 32EU 2-Chip
S-Processor LGA1700 65W 6 0 32EU 2-Chip
S Refresh-Processor LGA1700 35W 8 16 32EU 2-Chip
S Refresh-Processor LGA1700 65W 8 16 32EU 2-Chip
S Refresh-Processor LGA1700 125W 8 16 32EU 2-Chip
S Refresh-Processor LGA1700 150W 8 16 32EU 2-Chip
S Refresh -Processor LGA1700 35W 8 8 32EU 2-Chip
S Refresh-Processor LGA1700 65W 8 8 32EU 2-Chip
S Refresh -Processor LGA1700 35W 6 0 32EU 2-Chip
S Refresh-Processor LGA1700 65W 6 0 32EU 2-Chip
HX-Processor 8P+16E BGA1964 55W 8 16 32EU 2-Chip
HX-Processor 8P+8E BGA1964 55W 8 8 32EU 2-Chip
HX Refresh-Processor 8P
+16E
BGA1964 55W 8 16 32EU 2-Chip
P-Processor 6P+8E BGA1744 28W 6 8 96EU 1-Chip
H-Processor 6P+8E BGA1744 45W 6 8 96EU 1-Chip
H Refresh-Processor 6P
+8E
BGA1744 45W 6 8 96EU 1-Chip
U-Processor 2P+8E BGA1744 15W 2 8 96EU 1-Chip
continued...
R
Introduction—Intel
®
Core
™
, Xeon
™
6300 And Xeon
™
E 2400 Processors
13
th
Generation Intel
®
Core
™
, Intel
®
Core
™
14
th
Generation, Intel
®
Core
™
Processor (Series 1) and (Series 2), Intel
®
Xeon
™
E
2400 Processor and Intel
®
Xeon
™
6300 Processor
May 2025 Datasheet, Volume 1 of 2
Doc. No.: 743844, Rev.: 015 15
Processor Line
1
Package
Processor
Base Power
(a.k.a
TDP)
2, 3
Processor
IA P-Cores
Processor
IA E-Cores
Graphics
Configuration
Platform Type
U Refresh-Processor 2P
+8E
BGA1744 15W 2 8 96EU 1-Chip
PX-Processor 6P+8E BGA1792 45W 6 8 96EU 1-Chip
E-Processor 8P + 0E LGA1700 95W 8 0 0EU 2-Chip
E-Processor 8P + 0E LGA1700 80W 8 0 0EU 2-Chip
E-Processor 8P + 0E LGA1700 65W 8 0 0EU 2-Chip
E-Processor 6P + 0E LGA1700 95W 6 0 0EU 2-Chip
E-Processor 6P + 0E LGA1700 80W 6 0 0EU 2-Chip
E-Processor 6P + 0E LGA1700 65W 6 0 0EU 2-Chip
E-Processor 4P + 0E LGA1700 55W 4 0 0EU 2-Chip
E Refresh-Processor 8P
+ 0E
LGA1700 95W 8 0 0EU 2-Chip
E Refresh-Processor 8P
+ 0E
LGA1700 80W 8 0 0EU 2-Chip
E Refresh-Processor 8P
+ 0E
LGA1700 65W 8 0 0EU 2-Chip
E Refresh-Processor 6P
+ 0E
LGA1700 95W 6 0 0EU 2-Chip
E Refresh-Processor 6P
+ 0E
LGA1700 80W 6 0 0EU 2-Chip
E Refresh-Processor 6P
+ 0E
LGA1700 65W 6 0 0EU 2-Chip
E Refresh-Processor 4P
+ 0E
LGA1700 55W 4 0 0EU 2-Chip
Notes: 1. Processor lines offering may change.
2. For additional Processor Base Power (a.k.a TDP) Configurations, refer to Processor Line Power and Frequency
Specifications on page 89, for adjustment to the Processor Base Power (a.k.a TDP) required to preserve base
frequency associated with the sustained long-term thermal capability.
3. Processor Base Power (a.k.a TDP) workload does not reflect I/O connectivity cases such as Thunderbolt, for
power adders estimation for various I/O connectivity scenarios.
R
Intel
®
Core
™
, Xeon
™
6300 And Xeon
™
E 2400 Processors—Introduction
13
th
Generation Intel
®
Core
™
, Intel
®
Core
™
14
th
Generation, Intel
®
Core
™
Processor (Series 1) and (Series 2), Intel
®
Xeon
™
E
2400 Processor and Intel
®
Xeon
™
6300 Processor
Datasheet, Volume 1 of 2 May 2025
16 Doc. No.: 743844, Rev.: 015

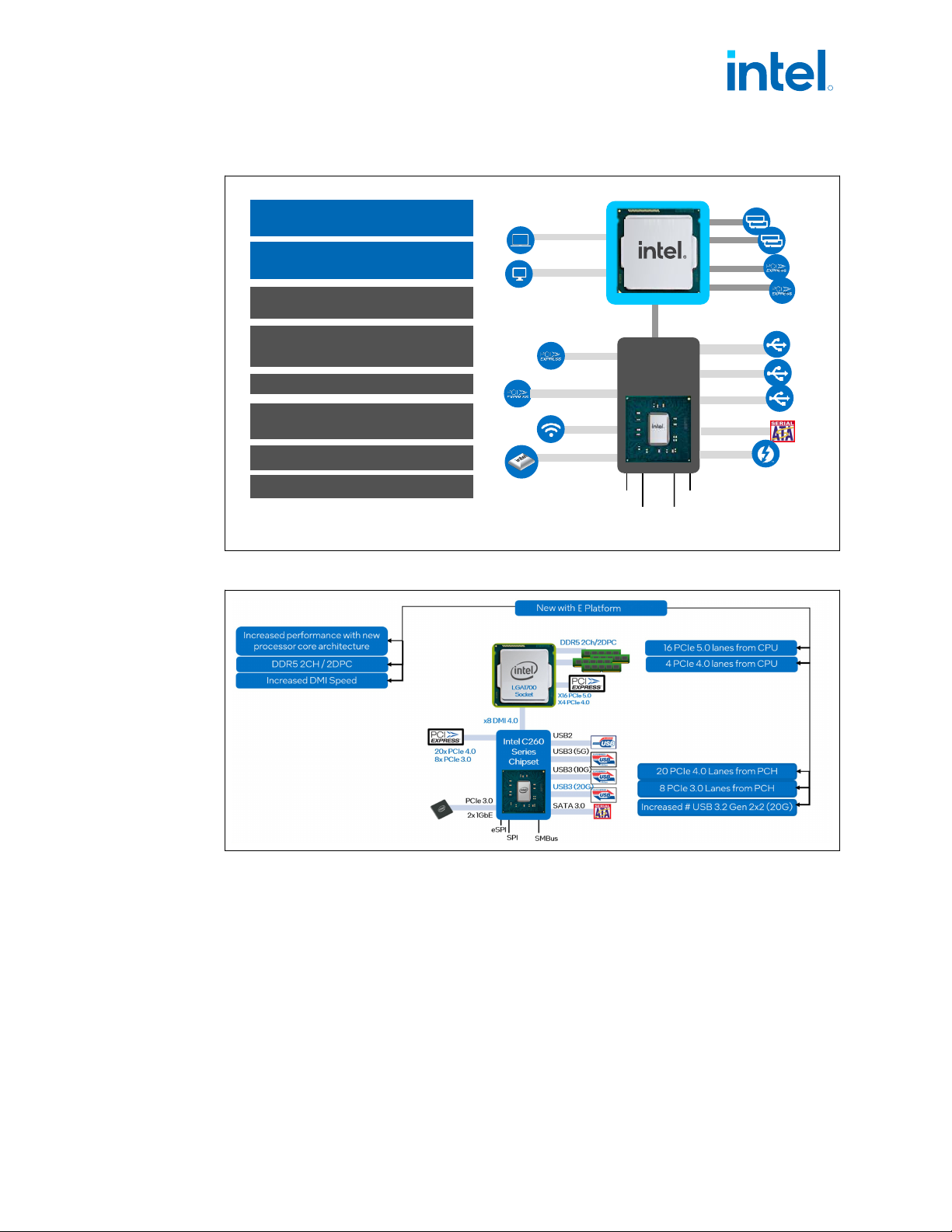

Figure 1. S Processor Line Platform Diagram
Intel LAN
2.5GbE
PCIe 3.0
PCIe 4.0 x4
PCIe 4.0
CNV/PCIe
Intel® Wi-Fi 6E
Premium Content Support via
X
e
Architecture
2.5Gb Ethernet Discrete LAN
SMBus
HD Audio, MIPI SoundWire
eSPI
SPI
PCIe 5.0 x16
PCIe 4.0 x4
Integrated Wi-Fi 6E Support
Performance-cores + Efficient-cores extended
to Intel® Core i5 processors
Enhanced Core & Memory Overclocking
Increased Processor Core Count Increased L2 &
L3 cache on Intel® Core i5 processors
Intel® Deep Learning Boost (VNNI)
Intel® Gaussian and Neural Accelerator (GNA)
3.0
S Processor
LGA 1700
Socket
DP 1.4a
HDMI 2.1
4 DDI
x8 DMI 4.0
Embedded Display
Port* 1.4b
x4
USB3 (20G)
USB3 (5G)
USB3 (10G)
Intel®
700 Series
Chipset
PCIe 3.0
SATA 3.0
Figure 2. E/E Refresh Processor Line Platform Diagram
