embedded DisplayPort* (eDP*) The embedded DisplayP ort* (eDP*) is an embedded version of the DisplayP ort standard oriented towards applications such as notebook and All-In-One PCs. Lik e DisplayP ort, embedded DisplayP …
Figure 25. HDMI* Overview
HDMI Source
HDMI Sink
TMDS Data Channel 0
Hot-Plug Detect
HDMI Tx
(Processor)
HDMI Rx
TMDS
Data
Channel
1
TMDS Data Channel 2
TMDS Clock Channel
CEC Line (optional)
Display Data Channel (DDC)
• DDC (Display Data Channel) channel.
• Support YCbCR 4:4:4, YCbCR 4:2:0, YCbCR 4:2:2, and RGB color format.
• Support up to 36 BPP (Bit Per Pixel).
• Hot Plug Detect.
Table 63. HDMI Maximum Resolution
Standard
PX, H/H Refresh - Processor
Line
P, U/U Refresh - Processor
Line
HDMI 1.4 4Kx2K 24-30 Hz 24bpp 4Kx2K 24-30 Hz 24bpp
HDMI 2.1 TMDS Compatible 4Kx2K 48-60Hz 24bpp (RGB/
YUV444)
4Kx2K 48-60Hz 12bpc (YUV420)
4Kx2K 48-60Hz 24bpp (RGB/
YUV444)
4Kx2K 48-60Hz 12bpc (YUV420)
Notes: 1. bpp - bit per pixel.
2. Resolution support is subject to memory BW availability.
3. HDMI2.1 can be supported using PCON (DP1.4 to HDMI2.1 protocol converter).
Standard S/S Refresh, HX/HX Refresh - Processor Line
HDMI 1.4 4Kx2K 24-30 Hz 24 bpp
HDMI 2.1 TMDS Compatible 4Kx2K 48-60 Hz 24 bpp (RGB/YUV444)
4Kx2K 48-60 Hz 12 bpc (YUV420)
Notes: 1. bpp - bit per pixel.
2. Resolution support is subject to memory BW availability.
3. HDMI2.1 can be supported using PCON (DP1.4 to HDMI2.1 protocol converter).
R
Display—Intel
®
Core
™
, Xeon
™
6300 And Xeon
™
E 2400 Processors
13
th
Generation Intel
®
Core
™
, Intel
®
Core
™
14
th
Generation, Intel
®
Core
™
Processor (Series 1) and (Series 2), Intel
®
Xeon
™
E
2400 Processor and Intel
®
Xeon
™
6300 Processor
May 2025 Datasheet, Volume 1 of 2
Doc. No.: 743844, Rev.: 015 161
embedded DisplayPort* (eDP*)
The embedded DisplayPort* (eDP*) is an embedded version of the DisplayPort
standard oriented towards applications such as notebook and All-In-One PCs. Like
DisplayPort, embedded DisplayPort* also consists of the Main Link, Auxiliary channel,
and an optional Hot-Plug Detect signal.
• Supported on Low power optimized pipes.
• Support up to HBR3 link rate.
• Support Backlight PWM control and enable signals, and power enable.
• Support VESA DSC 1.1.
• Support SSC.
• Panel Self Refresh 1.
• Panel Self Refresh 2
• MSO 2x2 (Multi Segment Operation).
• Adaptive Sync.
Table 64. Embedded DisplayPort Maximum Resolution
Standard PX, H - Processor Line
P, U/U Refresh - Processor
Line
eDP* 4096x2304 60Hz 36bpp
5120x3200 60Hz 24bpp
4096x2304 60Hz 36bpp
5120x3200 60Hz 24bpp
eDP* with DSC
5
5120x3200 120Hz 30bpp 5120x3200 120Hz 30bpp
Notes: 1. Maximum resolution is based on the implementation of 4 lanes at HBR3 link data rate.
2. PSR2 supported for P and M processor lines only and up to 5 K resolutions.
3. bpp - bit per pixel.
4. Resolution support is subject to memory BW availability.
5. High resolution panels supporting Display Stream Compression (DSC) are supported,
technology enablement may be limited due to low market availability.
Standard S/S Refresh, HX/HX Refresh - Processor Line
1
eDP* 4096x2304 60 Hz 36 bpp
5120x3200 60 Hz 24 bpp
eDP* with DSC
5
5120x3200 120 Hz 30 bpp
Notes: 1. Maximum resolution is based on the implementation of 4 lanes at HBR3 link data rate.
2. bpp - bit per pixel.
3. Resolution support is subject to memory BW availability.
4. High resolution panels supporting Display Stream Compression (DSC) are supported,
technology enablement may be limited due to low market availability.
MIPI* DSI
Display Serial Interface (DSI*) specifies the interface between a host processor and
peripherals such as a display module. DSI is a high speed and high performance serial
interface that offers efficient and low power connectivity between the processor and
the display module.
• One link x8 data lanes or two links each with x4 lanes support.
• Supported on Low power optimized pipes.
10.3.6
10.3.7
R
Intel
®
Core
™
, Xeon
™
6300 And Xeon
™
E 2400 Processors—Display
13
th
Generation Intel
®
Core
™
, Intel
®
Core
™
14
th
Generation, Intel
®
Core
™
Processor (Series 1) and (Series 2), Intel
®
Xeon
™
E
2400 Processor and Intel
®
Xeon
™
6300 Processor
Datasheet, Volume 1 of 2 May 2025
162 Doc. No.: 743844, Rev.: 015
• Support Backlight PWM control and enable signals, and power enable.
• Support VESA DSC (Data Stream Compression).

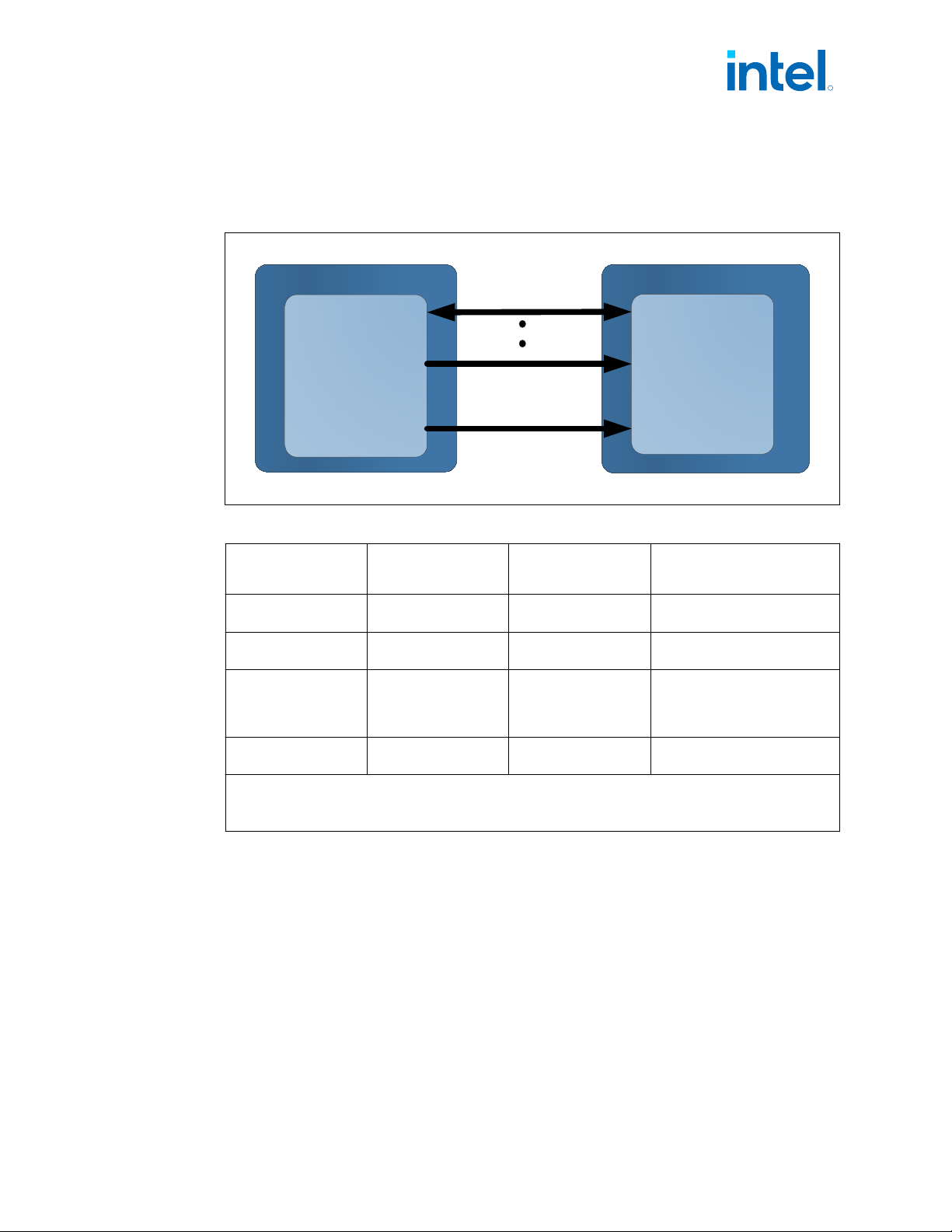

Figure 26. MIPI* DSI Overview
Source Device Sink Device
Data Lane n
Data Lane 0
High Speed Clock
Host Device
(Processor)
Display
Table 65. MIPI* DSI Maximum Resolution
Standard S/S Refresh, HX/HX
Refresh - Processor
Line
PX, H/H Refresh -
Processor Line
U/U Refresh , P - Processor
Line
MIPI* DSI (Single
Link)
N/A 3200x2000 @60 Hz 24
bpp
3200x2000 @60 Hz 24 bpp
MIPI* DSI (Single
Link) with DSC
N/A 5120x3200 @60 Hz 24
bpp
5120x3200 @60 Hz 24 bpp
MIPI* DSI (Dual Link) N/A 4096x2304 @60 Hz 24
bpp
3840x2160 @60 Hz 24
bpp
4096x2304 @60 Hz 24 bpp
3840x2160 @60 Hz 24 bpp
MIPI* DSI (Dual Link)
with DSC
N/A 5120x3200 @60 Hz 24
bpp
5120x3200 @60 Hz 24 bpp
Notes: 1. MIPI DSI is available on S/S Refresh/P/U Processor Lines only.
2. bpp - bit per pixel.
3. Resolution support is subject to memory BW availability.
Integrated Audio
• HDMI* and DisplayPort interfaces can carry audio along with video.
• The processor supports three High Definition audio streams on four digital ports
simultaneously (the DMA controllers are in PCH).
• The integrated audio processing (DSP) is performed by the PCH and delivered to
the processor using the AUDIO_SDI and AUDIO_CLK inputs pins.
• The AUDIO_SDO output pin is used to carry responses back to the PCH.
• Supports only the internal HDMI and DP CODECs.
10.3.8
R
Display—Intel
®
Core
™
, Xeon
™
6300 And Xeon
™
E 2400 Processors
13
th
Generation Intel
®
Core
™
, Intel
®
Core
™
14
th
Generation, Intel
®
Core
™
Processor (Series 1) and (Series 2), Intel
®
Xeon
™
E
2400 Processor and Intel
®
Xeon
™
6300 Processor
May 2025 Datasheet, Volume 1 of 2
Doc. No.: 743844, Rev.: 015 163
