There are two types of metal core printed boards, both having one or more conductive patterns on each side of an insulated metal substrate.
Interconnection between conductive patterns is made with PTHs.
In the first type, for double-sided printed boards, the metal core is laminated on each side with single-sided copper clad laminate to form a
two-sided printed board with the conductors subsequently etched and plated by conventional printed board processes. For multilayer appli-
cations, additional etched internal layers may be laminated to the core or multiple cores. The cores may serve as a heat sink, a power or ground
plane, or as a constraining plane to decrease the coefficient of thermal expansion (CTE) of the printed board in the planar direction.
For this type, the cores are commonly aluminum, copper, or (for CTE control) copper clad invar or molybdenum. If the cores are not to be
electrically connected to the circuitry (as is normally the case with aluminum cores), clearance holes for PTHs are drilled or punched prior to
lamination and filled with an insulating material. Copper cores may be electrically connected through the PTH. However, copper clad invar
or molybdenum requires special processing to make acceptable electrical connections.
In the second type of metal core printed board, clearance holes are drilled, punched or machined in the bare core and it is then coated with an
insulating material by spray coating, electrophoretic processes, or fluidized bed techniques. The coating must be pinhole free and of the
specified thickness required to withstand electrical leakage and arc-over. After coating, the insulation is covered with electroless copper and
plated and etched to provide required surface conductors and PTHs. For this type, the core may be copper, aluminum or steel, and most often
acts as a heat sink or stiffener.
金属芯板有两种类型，两种类型都是在一个覆绝缘层金属基材的两面有一个或多个导电图形。导电图形之间的互连是通过镀覆孔
来实现的。
在第一种类型中，对双面印制板来说，是在金属芯的两面层压单面覆铜层压板来形成双面板，接着采用常规的印制板工艺进行蚀
刻和电镀制作导线。作为多层板应用时，另外蚀刻的内层层压到一个金属芯或多个金属芯上。这些金属芯可作为散热层、电源层
或接地层，或者作为减小印制板在平面方向的热膨胀系数（CTE）的抑制层。
对于这种类型的金属芯印制板来说，其金属芯通常是铝、铜或（作为控制CTE用的）覆铜因瓦钢或钼板。如果金属芯不作为电气
连接线路（这种情况下通常用铝芯），则对于镀覆孔的隔离孔要在层压之前钻孔或冲孔并用绝缘材料加以填充。铜金属芯可以通
过镀覆孔来实现电气连接。但是，覆铜因瓦钢或钼芯材料则要求采用特殊加工才能获得可接受的电气连接。
在第二类的金属芯印制板中，隔离孔是在裸芯材中采用钻孔、冲孔或其它机械方法加工而成。然后采用喷涂、电泳工艺或流化床
技术涂覆上一层绝缘材料。这种类型的涂覆层必须没有针孔并达到耐漏电和抗电弧放电等所规定的厚度要求。在涂覆绝缘层后，
采用化学镀铜和电镀铜覆盖在绝缘层上，然后通过蚀刻以提供所要求的表面导体和镀覆孔。对于这种类型来说，金属芯材可以是
铜、铝或钢，其功用多数是作为散热层或增强板。
4.2
METAL CORE PRINTED BOARDS（⾦属芯印制板）
Introduction（引⾔）
153IPC-A-600H-2010 2010年4月

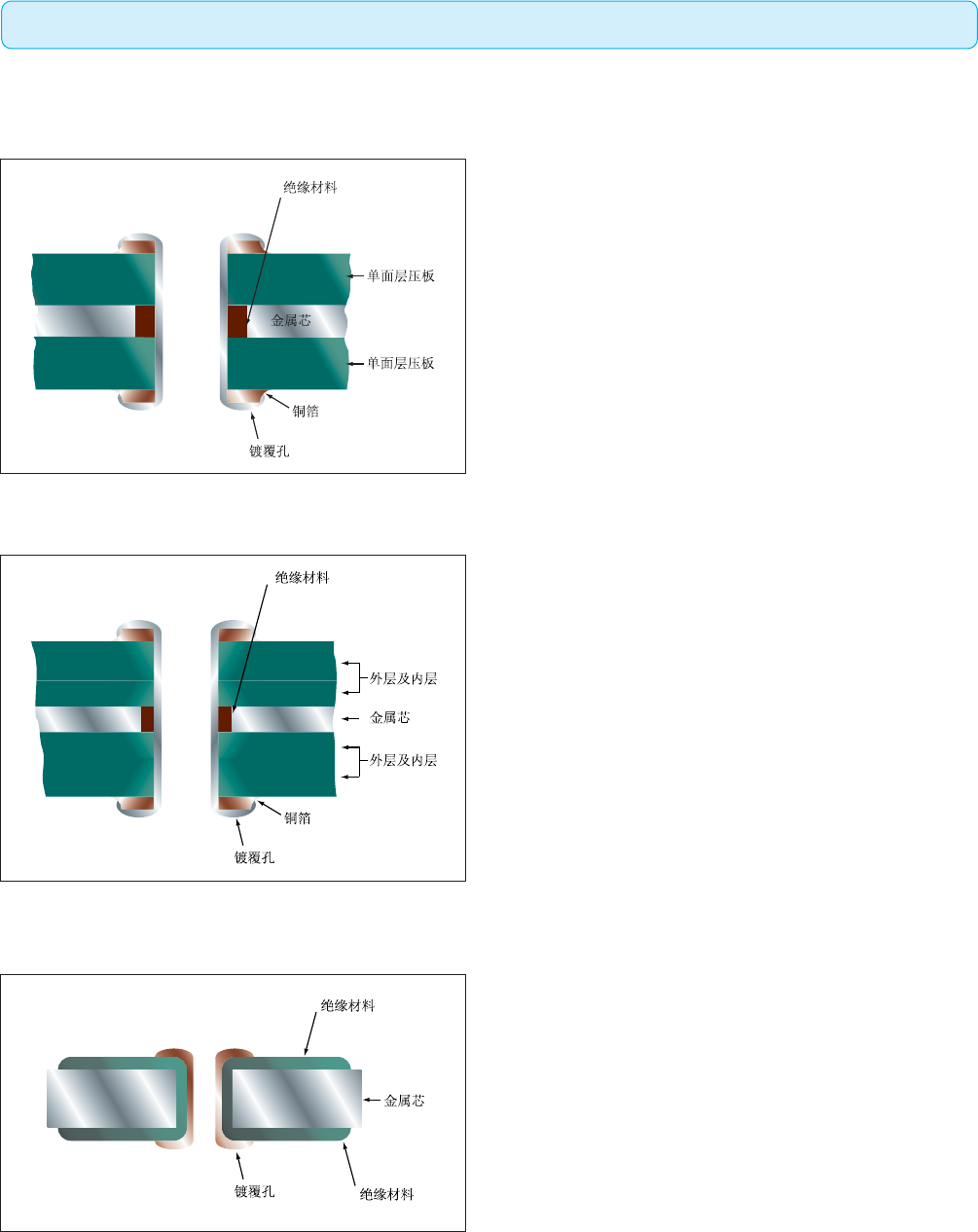

Metal Core Printed Board Types（⾦属芯印制板类型）
Laminated Type Metal Core Printed Board
层压型⾦属芯印制板
• Single conductive layer on both sides and insulated from the
metal core substrate. Conductive material to be copper foil and
electrodeposited copper.
• 两面上各有一层与金属芯基板绝缘的导电层，导电材料是覆
铜箔和电镀铜。
Laminated Type Metal Core Multilayer Printed Board
层压型⾦属芯多层印制板
• More than one conductive layer on one or both sides and insulated
from the metal core substrate. Conductive material to be copper
foil and electrodeposited copper.
• 一面或两面上有一层以上与金属芯基板绝缘的导电层。导电
材料是覆铜箔和电镀铜。
Insulated-Metal-Substrate Metal Core Printed Board
绝缘的⾦属基板芯印制板
• Single conductive layer on both sides and insulated from the
metal core substrate. Conductive material to be electroless copper
and a copper flash is then applied over all surfaces. From this
point on, document printed board fabrication processes are
employed. This process is generally limited to double-sided
printed boards only.
• 两面各有一层导电层，且与金属芯基板绝缘。导电材料是在
全部表面进行化学镀铜和闪镀铜。然后再采用常规的印制生
产工艺进行制作。这种工艺通常仅限于生产金属芯双面印制
板。
图421a
图421b
图421c
4.2 METAL CORE PRINTED BOARDS（⾦属芯印制板）
4.2.1 Type Classifications（分类）
