Instrument functions
R&S
®
LCX Series
102User Manual 1179.2260.02 ─ 08
●
The duration for capturing logging data is in the range from 0 s to 3.49*10
5
s at a
maximum.
●
When running, the instrument indicates a white "LOG" label in the status bar. When
disabled, the label color is gray.
8.8.3.1 Logging settings
In the "Logging" menu, you can configure the main parameter settings for data logging.
With a USB flash drive connected, you can save the file on either the USB flash drive
or the internal memory, with "USB1A" as default setting. Without USB connected, the
R&S LCX saves the file internally in the file path /int/logging.
Access:
1. Press the [settings] key at the front panel.
2. In the "Functions" tab, select "Logging".

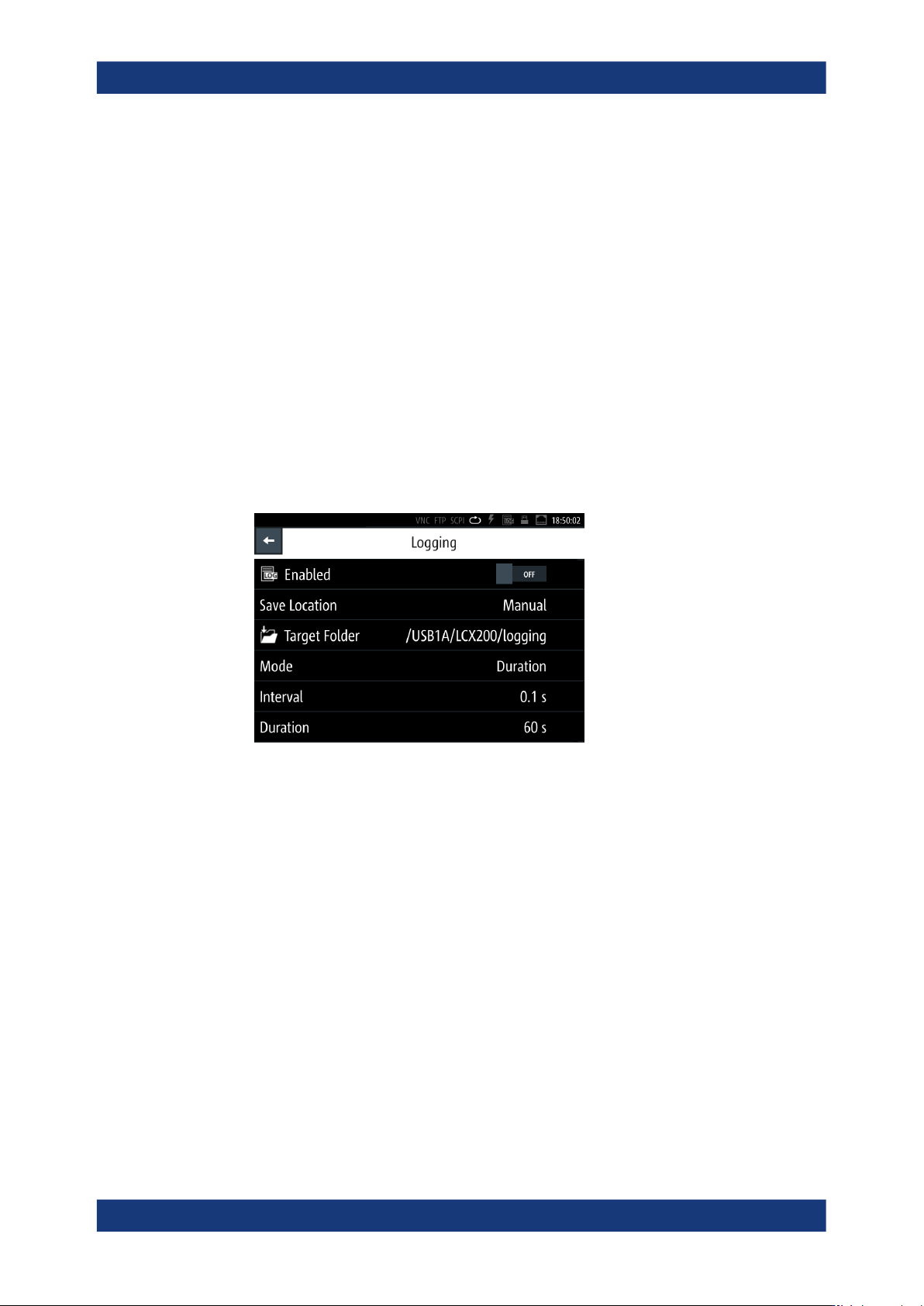

Figure 8-23: Network settings dialog
The settings dialog contains the basic parameters for setting the logging mode,
and provides access to file management parameters.
The required remote commands are described in Section 11.14, "LOG subsystem",
on page 218.
How to: see Section 8.8.3.2, "Using the logging function", on page 105.
Enabled.......................................................................................................................103
Save Location............................................................................................................. 103
Target Folder...............................................................................................................103
Mode........................................................................................................................... 103
Interval........................................................................................................................ 104
Count...........................................................................................................................104
Duration.......................................................................................................................104
Start Time....................................................................................................................104
└ Set Date & Time............................................................................................104
Specific instrument functions
Instrument functions
R&S
®
LCX Series
103User Manual 1179.2260.02 ─ 08
Enabled
Activates data acquisition and saving the readings.
Remote command:
LOG[:STATe] on page 222

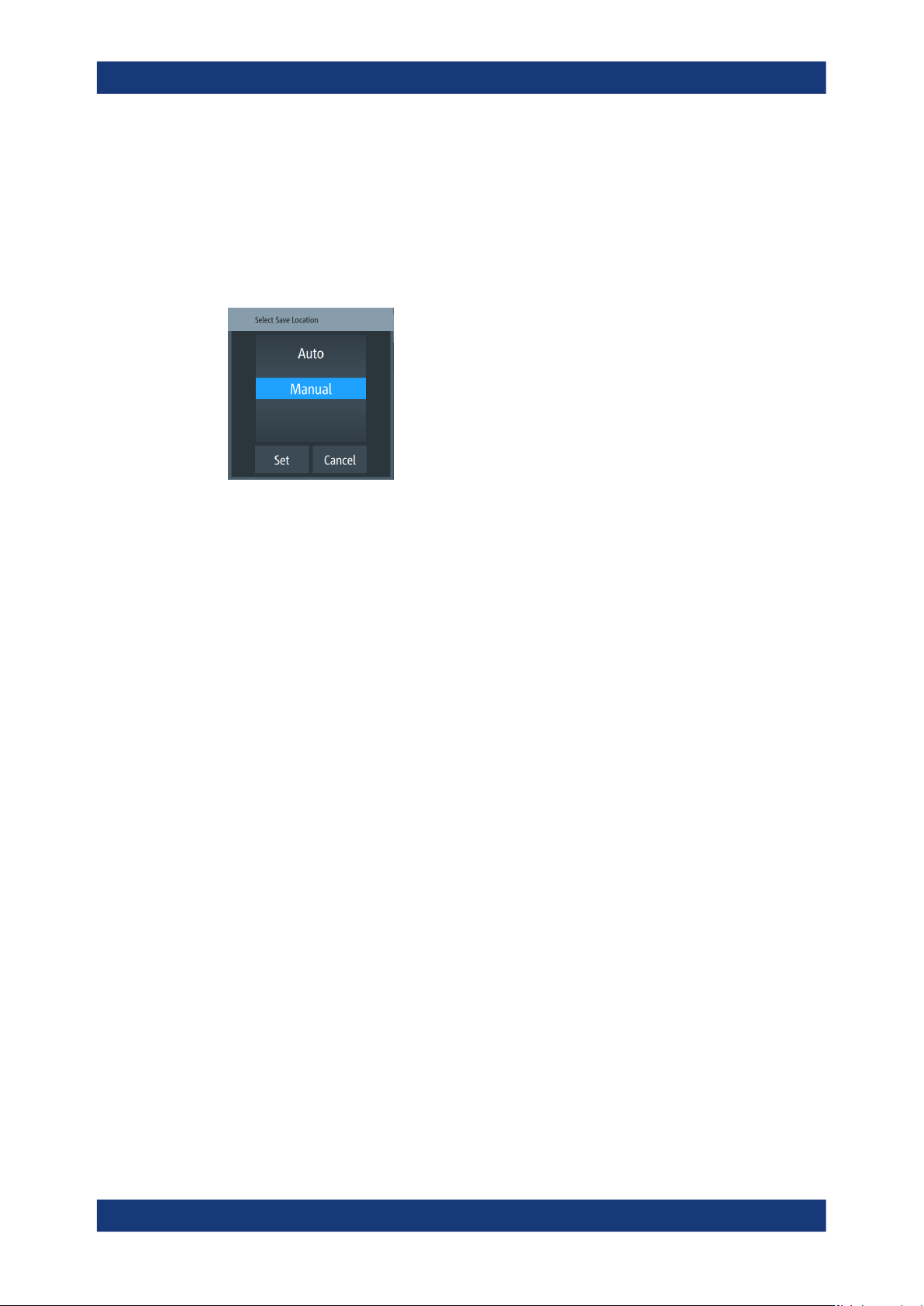

Save Location
Opens a dialog where you can select how to determine the location for the file.
"Auto"
Selects the target folder automatically.
"Manual"
Enables you to select and define the target folder on the USB flash
drive.
Target Folder
With a USB flash drive connected, accesses a dialog to select the memory partition
where you want to save the file.
The R&S LCX sets the path and file folder according to the function used to create and
save the data.
Without the USB flash drive, the R&S LCX saves the file on the internal memory auto-
matically.
"USB1A"
Sets the destination folder on the USB flash drive.
"int"
Sets the destination folder on the internal memory.
Mode
Selects a logging mode.
When enabled, each mode records data at specified intervals, set with "Interval"
on page 104.
The R&S LCX starts recording depending on the selected mode, and if you enable
data logging, see "Enabled" on page 103.
"Unlimited"
Records data continuously.
Data logging starts immediately with Enabled > ON, and continues
until you stop the logging function.
The amount of recorded data is limited by the size of the memory the
data is saved on.
"Count"
Records a defined number of measurement readings.
To determine the number, see "Count" on page 104.
Data logging starts immediately with Enabled > ON. It stops when the
number of readings is reached.
Specific instrument functions
Instrument functions
R&S
®
LCX Series
104User Manual 1179.2260.02 ─ 08
"Duration"
Records measurement readings within a defined time period.
To set the time period, see "Duration" on page 104.
Data logging starts immediately with Enabled > ON. It stops after the
duration time has elapsed.
"Span"
Records measurement readings from a certain start time for a defined
time span.
To set the parameter, see "Duration" on page 104.
Data logging starts at the start time and with Enabled > ON. It stops
automatically after the duration time has elapsed.
Remote command:
LOG:MODE on page 221
Interval
Sets the time period for data logging.
The measurement interval specifies the time between the recorded measurement val-
ues.
Note: You can set the instrument to log each measurement performed by setting the
interval value to 0 s, regardless of the selected measurement mode.
Remote command:
LOG:INTerval on page 221
Count
Sets the number of measurement readings for data logging Mode > Count.
Remote command:
LOG:COUNt on page 220
Duration
Sets the time period for data logging Mode > Duration or Mode > Span.
The maximum logging duration is 96 hours.
Remote command:
LOG:DURation on page 220
Start Time
Sets the time for starting data logging in Mode > Span.
At first, you can set the date. When confirmed, the dialog for setting the time opens
automatically.
How to: see "Configuring logging settings" on page 105.
Remote command:
LOG:STIMe on page 221
Set Date & Time ← Start Time
Accesses the "Set Date & Time" function to configure a date and time stamp for the
recorded data in logging Mode > Span.
How to: see "Configuring logging settings" on page 105.
